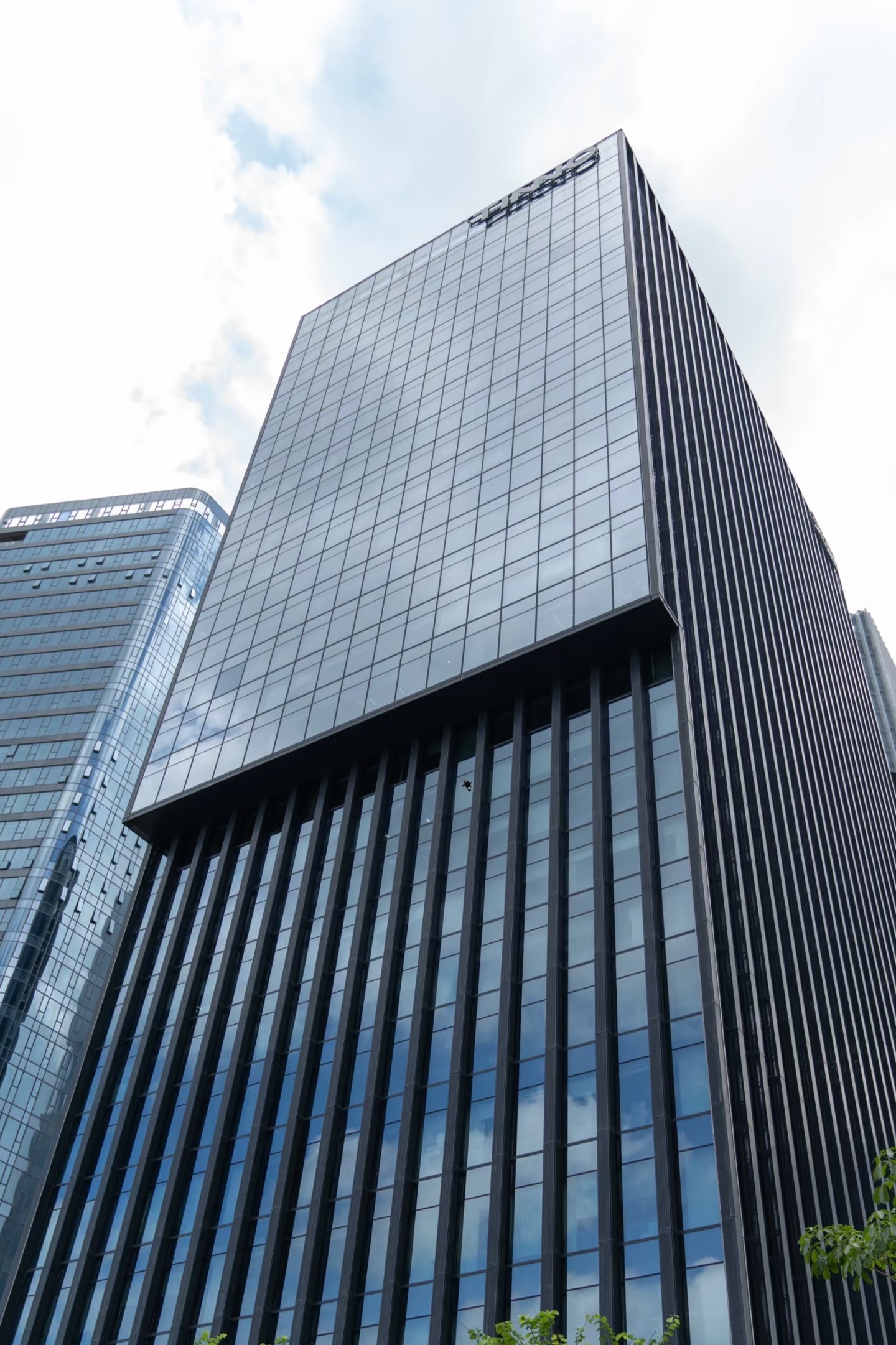

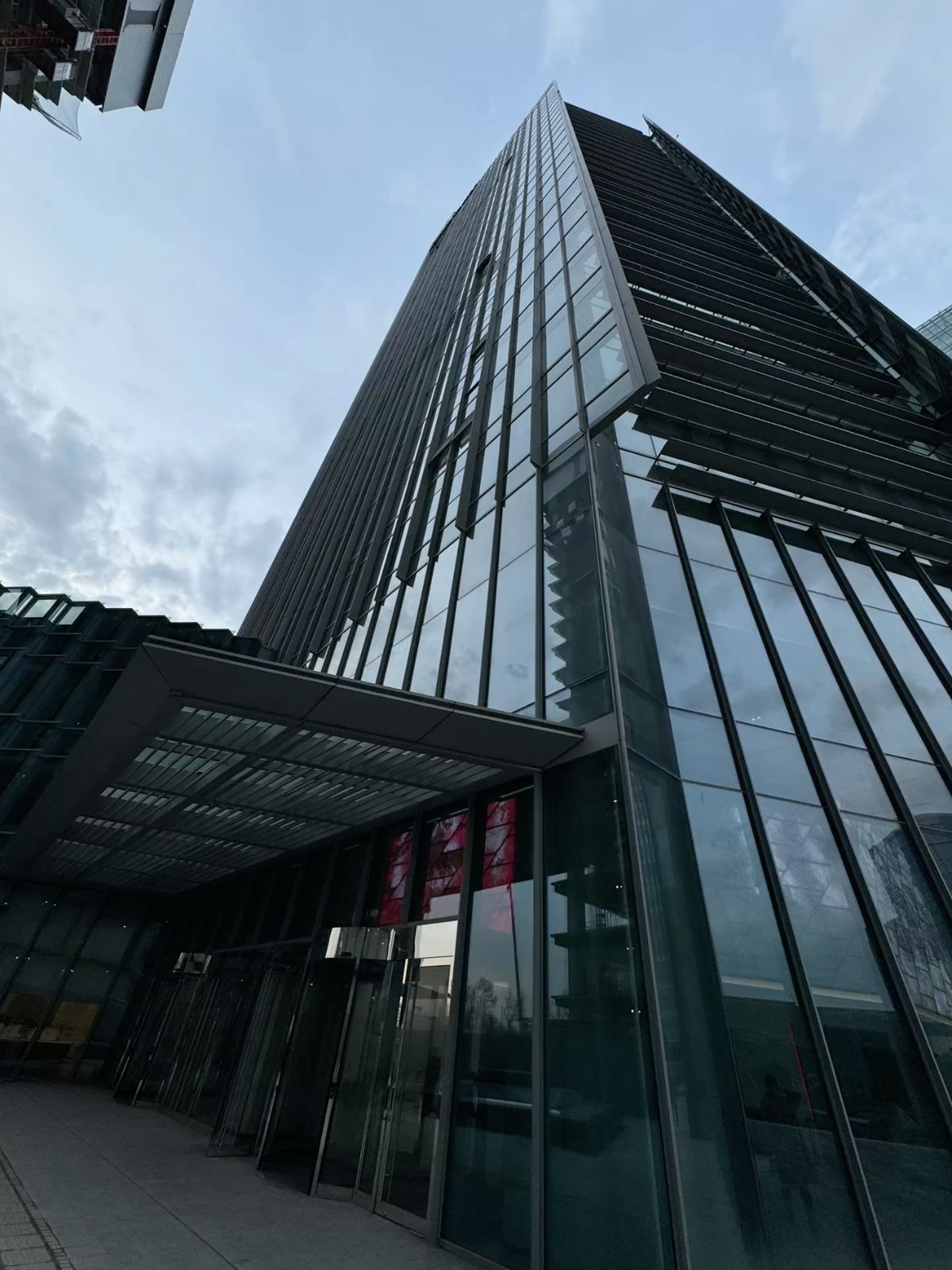

Vertical Exposed Horizontal Hidden Glass Curtain Wall System – Hybrid Design for Modern Architecture

Our Vertical Exposed Horizontal Hidden Glass Curtain Wall merges two popular systems into one. The vertical frames stay visible for structural clarity, while horizontal frames hide neatly behind glass. This semi-hidden frame curtain wall suits offices, hotels, and cultural buildings needing both strength and sleek aesthetics.

Unique Design Features

Vertical Exposed Frames for Better Support

The visible vertical aluminum columns (80-150mm wide) reinforce the structure. They handle heavier loads than fully hidden frame curtain walls. This design works well for buildings taller than 30 stories or areas with frequent earthquakes.

Hidden Horizontal Frames for Clean Lines

Horizontal mullions stay concealed behind glass joints. This creates smooth, uninterrupted sightlines across floors. The hidden parts use the same 6063-T5 aluminum as exposed columns to prevent corrosion.

Mix-and-Match Flexibility

Need more exposed elements? Adjust the ratio of visible/hidden frames. Choose 30% exposed for subtle structure or 70% exposed for bold industrial looks.

Key Benefits Over Standard Systems

Stronger Than Fully Hidden Systems: Vertical exposed frames add 20% more load capacity.

Easier Repairs: Accessible vertical joints simplify part replacements vs. full hidden frame curtain walls.

Energy Efficient: Thermal breaks in both vertical/horizontal frames cut heat loss by 35% (U-value 1.5 W/m²·K).

Comparison: Semi-Hidden vs. Full Exposed/Hidden Systems

Semi-Hidden Frame Curtain Wall: Combines exposed vertical strength with hidden horizontal aesthetics. Best for projects needing design flexibility.

Full Exposed Frame Curtain Wall: All frames visible – maximum rigidity but more industrial look.

Full Hidden Frame Curtain Wall: Fully seamless glass – elegant but less structural visibility.

Customization Options

Vertical Frame Widths: 80mm/120mm/150mm

Glass Types: Double glazing (16-24mm), acid-etched patterns, or bird-safe coatings

Finish Choices: Anodized (10+ colors), wood-effect powder coating, or mirrored surfaces

Ideal Applications

Corporate HQ towers with floor-to-ceiling windows

Luxury hotels near coastal/industrial areas (resists salt spray)

Museums needing vibration-resistant displays

High-rise apartments requiring balcony integrations

Technical Specifications

Aluminum Grade: 6063-T5 (2.0-3.5mm thickness)

Max Glass Size: 3.2m (height) x 1.8m (width)

Wind Resistance: 3,800 Pa (tested per EN 12179)

Water Tightness: Class 3B (BS 6375)

Fire Rating: Class A2 (EN 13501-1)

Request a project quote today. Specify your preferred vertical frame width, glass type, and total facade area.
