WSR-600M Multi-function demonstration video

The WSR 600M is a multifunctional Smart Glass Installation Robot that combines a forklift and winch hoist based on a Glass Lifter Robot. It is capable of gripping, walking, lifting, tilting, and rotating, as well as forklifting and hoisting materials up to 600kg automatically. This robot can be used for installing glass curtain walls, glass windows, aluminum decorative panels, prefabricated concrete walls, marble, and other panels on the exterior or interior of buildings. Compared to traditional glass cranes or large cranes for installation, this series of glass installation lifters is small, agile, and multifunctional, equipped with distance measuring and anti-tip safety devices. It also has an optional wireless remote control for one-person operation. The power for this Glass Lifter Machine is supplied by two large capacity batteries, allowing for 6-8 hours of continuous operation. It can even enter engineering lifts to install glass curtain walls indoors, greatly improving operational efficiency and safety.

Functions:

· Remote driving with DC powered vacuum system
· Automatic arm lifting and extending
· Automatic tilting and rotating
· Manual side turning on both side, automatic side shift
· All automatic moving are wired remote control
· Full safety protection includes low vacuum level warning, low battery warning, Charging protection, side-fall protection, auto-parking brake and emergency stop

• Quick-Change attachment available

• Multi-Functions

• Extended counterweight design allows for a smaller machine size

• Electric controlof·Lifting·Extension·Rotation·Tilting·Side shifting·Side turning

• Forklift,Winch, Suction Cup on options

• Customizable attachment head

‌Model Type‌: WSR600 (Multi) – Available configurations:

• With Sucker Device
• With Fork Lift
• With Hoist Device

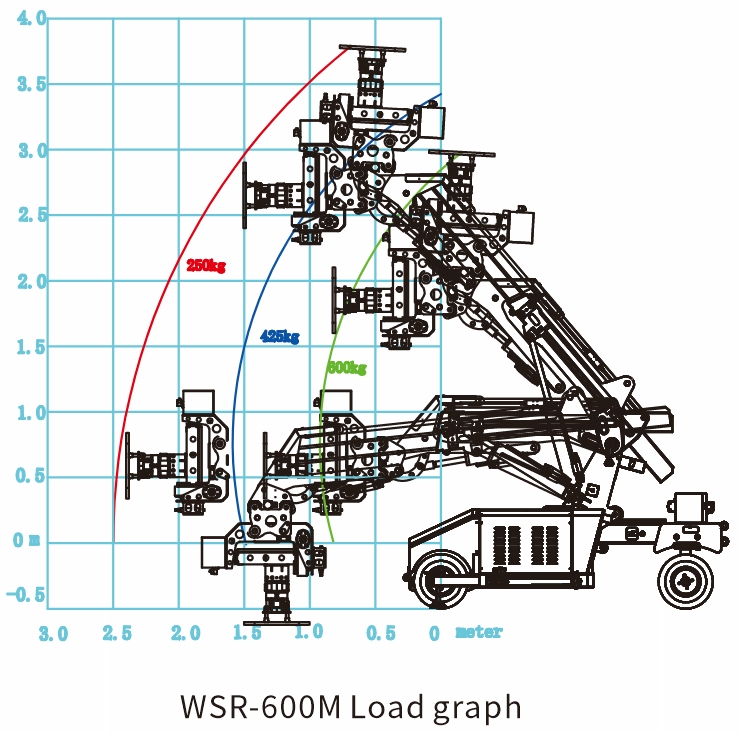

‌Load Capacity‌: 600 kg

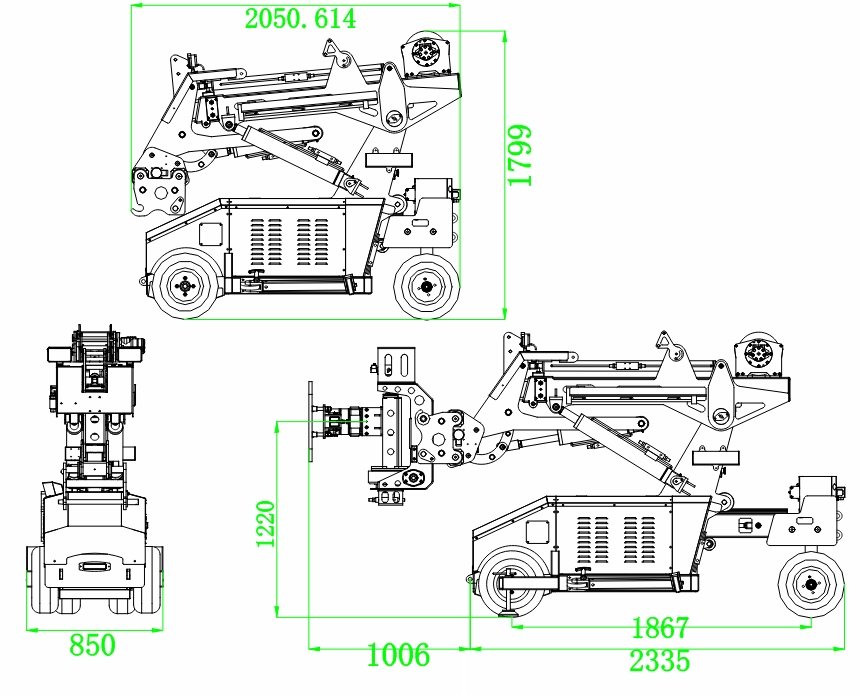

‌Lifting Height‌: 3800 mm

‌Driving Speed‌: 0–4 km/h

‌Rated Power‌: 4.5 kW

‌Drive Model‌: 24V, Front Wheel Drive

‌Climbing Capacity‌: 15%

‌Height Forward Extension‌: 950 mm

‌Battery‌: DC 12V-140Ah × 2

‌Battery Charger‌: AC 110V–220V

‌Continuous Working Time‌: 6–8 hours

About us

  Guangzhou Cowest Machinery Equipment  Ltd was established in 2008,which is a professional Vacuum handling equipment research and development, production, sales and service in one manufacturing enterprise. Our products are used in many industries such as Construction, Glass manufacturing, Chemical industry, Pharmaceutical industry, and food industry, and are exported to Europe, America, the Middle East, Southeast Asia and other regions around the world.

We have own R&D team and core product technology, and have obtained more than 30 product patents, including Movable Vacuum tube lifter with Fold Crane, Glass installation Robot, Stone Road installation manipulator ect. These products are one of the best in the world, and they are used in many famous enterprises and projects: Dunlop Tires, Nescafe, Brother Printer, IBM, Lipan Paint, Kohler and other products of the production line handling palletizing. Our products also participated in many famous large-scale construction projects for Glass installation .such as the glass installation projects of Beijing Library, Guangzhou Tower,Hong Kong Pacific Place,the United States Metropolis and Beijing Airport ,etc.In addition, we also cooperate with many famous construction machinery giant enterprises: Manitou, Zoomlion, Zhejiang Dingli, Sany Machinery, XCMG Group, etc. to provide technical support and accessory products.

  Our company has always adhered to the philosophy of "only the best, the best in the industry", and has learned on a wide range of global technical expertise to create rock-solid product quality and safer, more personalised products that customers can buy with confidence and comfortable to use, making handling problems easy!

Packaging Photo：

1.How can customer buy parts once the Vacuum Glass lifter break down?

Thes Glass lifter adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.

2.How can customer repair the Glass lifter.
One of the great advantage of Glass lifter is with very very low failure rate.Even it breaks down,we can guide to repair it by
video and repair instruction.

3.What is the battery life span?
The lift span of the battery can be 4 years if you maintain it as per our maintanance manual.

4.How long is the quality guarantee of the Glass lifter?
One year quality guarantee including battery.Wheels are not included.If it breask down within one year,we can send the parts free of charge to you.
