JK6 Watering Truck
2 week ago
Vehicle Overview
|
Category |
Specification |
|
Model Name |

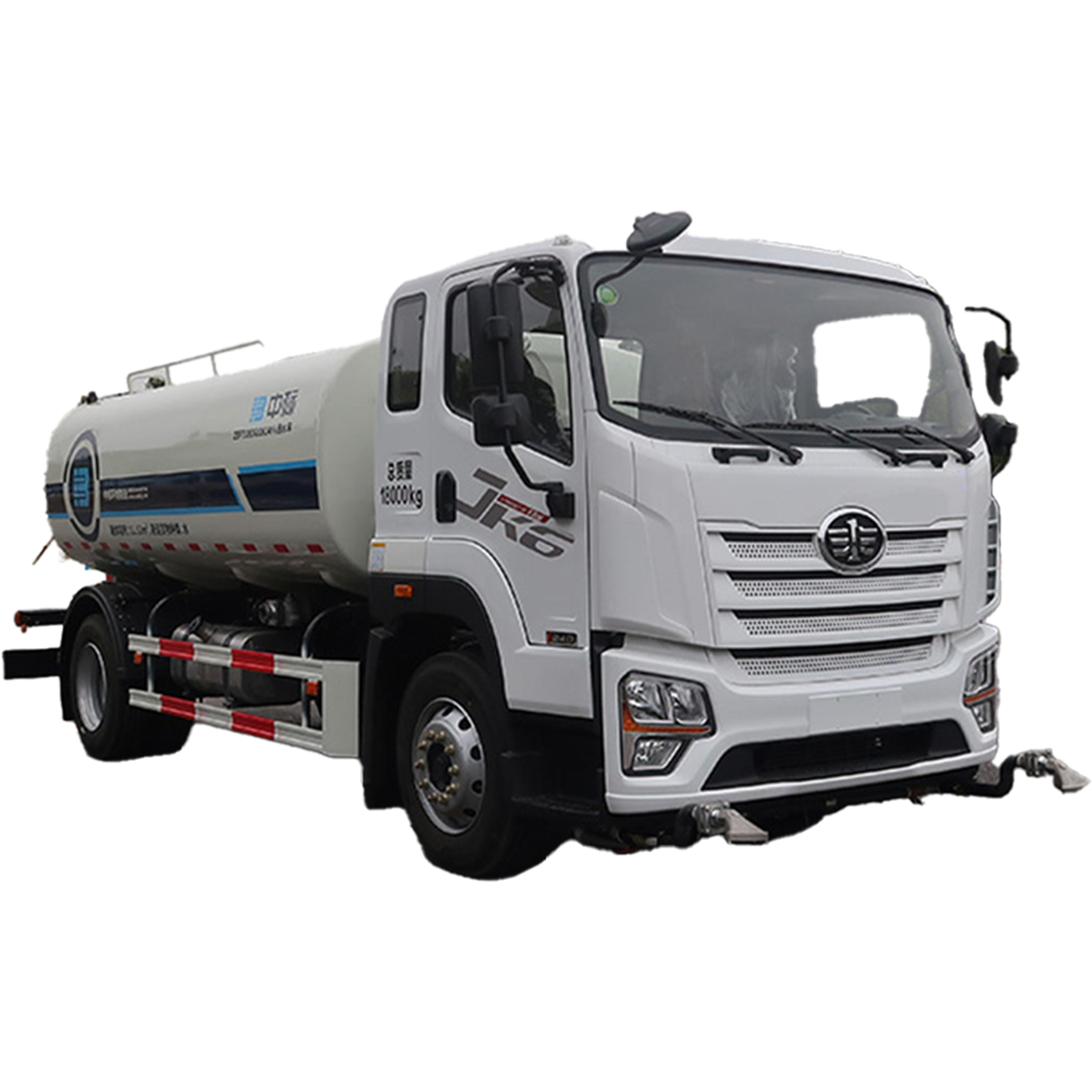

FAW Jiefang JK6 Watering Truck |
|
Vehicle Type |
Light-to-medium-duty water sprinkler truck |
|
Primary Application |
Road flushing, landscaping irrigation, urban dust suppression |
|
Platform |
Based on JK6 cargo chassis (4×2 / 6×2) with rear-mounted water tank body |
Chassis & Powertrain
|
Drive Configuration |
4×2 (standard) / 6×2 (high-capacity optional) |
|
Engine Options |
Weichai WP4.6 / WP6 |
|
Power Output |
180–260 HP |
|
Torque |
Up to 1000 Nm |
|
Transmission |
FAST 8-speed / 9-speed manual |
|
Fuel Type |
Diesel (China VI B compliant) |
|
Suspension |
Front: Multi-leaf spring |
|
Steering System |
Hydraulic power steering |
Water Tank Body & Sprinkling System
|
Water Tank Capacity |
8,000 – 12,000 Liters (depending on chassis & wheelbase) |
|
Tank Material |
Carbon steel with anti-corrosion inner coating (optional stainless steel) |
|
Pump Brand |
Domestic brand (e.g. Hangzhou Weilong, Tianjin Tongjie) |
|
Sprinkler Configuration |
Front duckbill nozzles, rear circular nozzles, left/right side spray |
|
Water Cannon |
High-pressure roof cannon (adjustable jet: 20–30 m range) |
|
Control Options |
In-cab electric controls + external manual controls |
|
Water Inlet/Outlet |
2" or 3" hose interface with filter, quick-connect type |
|
Other Functions |
Self-suction (5m lift), fire hydrant connection port, optional fog cannon |
Cabin Features
|
Cab Type |
Mid-roof wide cab / High-roof sleeper cab (optional) |
|
Interior Comfort |
Cloth seats, A/C, electric windows, LED lighting |
|
Dashboard |
LCD + analog hybrid cluster with pump status indicators |
|
Optional Features |
Bluetooth radio, USB charging, reversing camera |
Safety & Auxiliary Features
|
Standard Safety |
ABS, dual-circuit air brake, anti-slip step ladder |
|
Optional Equipment |
Reverse radar, LED work lights, rear-view camera, water-level display |
|
Lighting System |
Emergency flashers, rear reflectors, fog lights |
|
Chassis Protection |
Bottom tank shield, anti-overflow valve, rear protection bar |
⚙️ Technical Summary
|
GVW (Gross Vehicle Weight) |
12 – 18 tons (based on configuration) |
|
Curb Weight |
7,500 – 10,000 kg |
|
Top Speed |
80–90 km/h (limited) |
|
Sprinkler Width |
12–16 meters adjustable |
|
Pump Flow Rate |
60–90 m³/hour (depending on system spec) |
Use Case Scenarios
|
Sector |
Example Use |
|
Municipal sanitation |
Daily road flushing, dust control |
|
Landscaping & parks |
Tree irrigation, green belt watering |
|
Construction sites |
Dust suppression on large infrastructure projects |
|
Emergency response |
Road washing after chemical or oil spills |
Key Advantages
· ✅ Modular Tank System: Compatible with multiple tank sizes and pump setups
· ✅ Dual Control Design: Easy operation from inside cabin or outside panel
· ✅ Strong Chassis: Based on JK6 cargo platform, proven durability & low maintenance
· ✅ Green Operation: Optional fog cannon/nozzle system for PM2.5 dust suppression
· ✅ Customizable Exterior: Available in white/green/blue with logo & reflective tape
