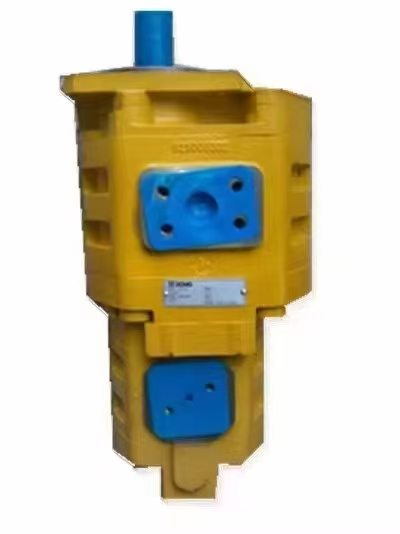

Lingong roller J1025 4120002486
2 week ago
Product details
**High-Pressure Gear Pump Motor: Detailed Explanation**
High-pressure gear pump motors are critical equipment in industrial applications for transporting high-viscosity fluids or generating high hydraulic pressure. They are widely used in hydraulic systems, petrochemicals, energy, and heavy machinery industries. Below is a systematic analysis of their structure, working principles, selection criteria, applications, and maintenance:
---
### **I. Structure and Working Principle**
1. **Core Components of the Gear Pump**
- **Gear Pair**: Precision-machined spur, helical, or herringbone gears, typically made of alloy steel (e.g., 20CrMnTi) or hard chrome-plated surfaces to ensure wear resistance under high pressure.
- **Pump Body**: High-strength cast iron or steel with internal high-pressure flow channels, equipped with axial/radial compensation structures to minimize internal leakage.
- **Shaft Sealing System**: Uses mechanical seals (e.g., SiC/graphite rings) or packing seals, with pressure resistance exceeding 30 MPa.
2. **Motor Matching Requirements**
- **Type Selection**: Three-phase asynchronous motors (general use), servo motors (precision control), or explosion-proof motors (flammable environments).
- **Power Calculation**: Based on pump displacement (cm³/rev) and maximum working pressure (Bar), calculated using \( P = \frac{Q \times p}{600 \times \eta} \) (Q: flow rate, p: pressure, η: efficiency).
- **Protection Rating**: IP55 or higher (dust/water resistance); H-class insulation (180°C) for high-temperature environments.
3. **Working Principle**
- The motor drives the driving gear, creating sealed cavity changes through gear meshing. A vacuum forms at the suction port to draw in fluid, while compression at the discharge port generates high pressure. Gear clearance (5–20 μm) and pressure compensation designs ensure high-pressure efficiency.
---
### **II. Key Performance Parameters**
| Parameter | Typical Range | Description |
|--------------------|-------------------------|---------------------------------------|
| Working Pressure | 10–35 MPa | Reinforced designs may exceed 50 MPa |
| Flow Rate | 0.5–500 L/min | Correlated with gear modulus and speed|
| Medium Viscosity | 10–1000 cSt | High viscosity requires heated or special gear profiles |
| Volumetric Efficiency | 85–95% | Decreases under high pressure due to internal leakage; compensation needed |
| Motor Power | 0.75–200 kW | Consider starting torque (typically 1.5× rated torque) |
---
### **III. Selection Guidelines**
1. **Operating Condition Matching**
- **Pressure-Flow Curve**: Ensure the operating point lies in the high-efficiency zone (typically 60–90% of max pressure).
- **Medium Compatibility**: Use stainless steel (e.g., 316L) or coated gears (e.g., DLC coating) for corrosive media.
2. **Motor Adaptation**
- **Frequency Control**: Use inverter-duty motors with vector drives for variable speed; avoid overheating in standard motors at low frequencies.
- **Thermal Management**: For continuous high-pressure operation, adopt forced air/water cooling (e.g., IC416 cooling).
3. **Typical Applications**
- **Injection Molding Machines**: 35 MPa hydraulic systems with proportional valves for precise pressure control.
- **Marine Deck Machinery**: Saltwater-resistant designs for 20 MPa-class pump units driving winches/anchor systems.
- **Oilfield Fracturing Pumps**: Ultra-high-pressure (70 MPa+) multi-pump gear units with motor power up to 500 kW.
---
### **IV. Maintenance and Troubleshooting**
1. **Routine Maintenance**
- **Inspections**: Check shaft seal leakage every 500 hours (allowable <5 drops/min); monitor bearing temperature (≤80°C).
- **Fluid Management**: Maintain NAS Class 7 cleanliness; replace fluid if viscosity deviates ±15%.
2. **Common Failures and Solutions**
- **Pressure Fluctuations**: Inspect suction filter blockage (replace if ΔP >0.3 Bar) or cavitation (raise tank fluid level).
- **Abnormal Noise**: Check gear wear (inspect pitting) or coupling misalignment (adjust to <0.05 mm).
- **Motor Overload**: Verify system relief valve settings or internal pump jamming (disassemble and clean).
---
### **V. Innovative Technology Trends**
- **Smart Monitoring**: Integrated pressure/temperature sensors enable predictive maintenance via IoT (e.g., vibration analysis for gear wear).
- **Material Advancements**: Experimental ceramic gears (zirconia) aim for pressures >100 MPa.
- **Energy Recovery**: Use accumulators in applications like injection molding to store energy, reducing motor consumption by 30%+.
---
**Summary**: The design of high-pressure gear pump motor systems requires balancing fluid dynamics and electromechanical integration. Selection must consider operating conditions, medium properties, and energy efficiency. With advancements in smart technologies and materials, these systems will further enhance their high-pressure, high-efficiency, and longevity advantages.
