1500w ups inverter 12v dc to 220v ac with charger dc inverter air conditioner compressor
A 1500W UPS (Uninterruptible Power Supply) inverter is a device that converts DC (Direct Current) power from a battery into AC (Alternating Current) power to provide backup power during power outages or fluctuations. It is capable of delivering a continuous power output of 1500 watts, which can support various electrical devices and appliances.
The UPS inverter typically consists of a battery charger, an inverter circuit, and a transfer switch. The battery charger charges the battery when the main power supply is available, ensuring that the battery is always ready for backup power. The inverter circuit converts the DC power from the battery into AC power, which is then supplied to the connected devices. The transfer switch automatically switches the power source from the main power supply to the battery power during an outage.
A 1500W UPS inverter can be used to power a range of devices, such as computers, servers, networking equipment, home appliances, and other critical electrical loads. It provides protection against power interruptions, voltage fluctuations, and surges, ensuring uninterrupted operation and preventing damage to sensitive equipment.
When choosing a 1500W UPS inverter, it is important to consider factors such as the battery capacity, efficiency, runtime, and the number of outlets available. Additionally, it is essential to determine the power requirements of the devices you plan to connect to the UPS inverter to ensure that it can provide sufficient power for your needs.
-100% full wattage
-Isolated output, soft start
-Low interference technology
- Large factory, strong technical support
-USB charging port +5VDC, 500mA
- Aluminum case
- Earth ground terminal for safety
-Smart Fan
1500w ups inverter

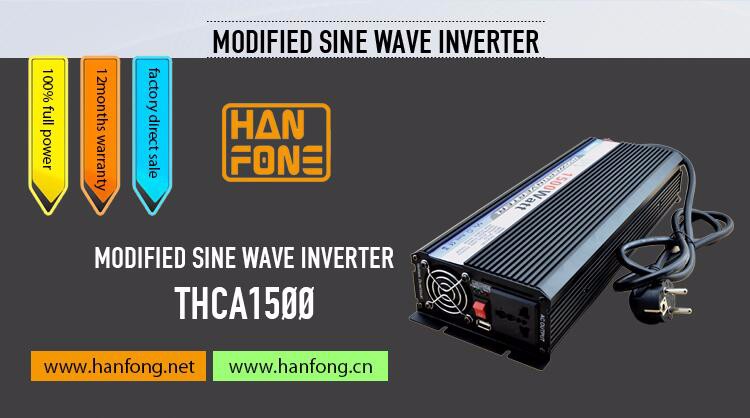

This power inverter is modified sine wave inverter which converts DC power to AC power. The power inverter is used for household appliances, solar devices and telecommunication and the other equipments when no grid power is available. Its output voltage is always within 10% of rated voltage until it shutdown for overload or other reasons. The special design of circuit and tough components protect the power inverter from being easily damaged, even when the starting power of that equipment is more than 3 times of that of the inverter. Besides these advantages, THCA series power inverter also has grounding devices to improve safety and excellent component to lower interference; inner fan is intelligent and will not work until the wattage reaches 1/3 of inverter. All these designs are made to prolong its span.
Input | Output | Package |
Input voltage:DC 12V(24V/48V) | Continuous power:1500W | Net weight:2600g |
Input voltage range:DC 9.5V-15.5V | Peak power:3000W | Gross weight:3000g |
Load controlled fan : Yes | Output voltage:AC 220V/110V | Product Size:357*131*65mm |
Fuse : 35A*6 | Output voltage Regulation : +/-10% | Packing size:400*160*125mm |
Peak efficiency:>90% | USB Charging port:5VDC,800mA | Packaging : 10 Pcs per carton |
Working temperature : 0-40 deg C | Output Frequency:50Hz/60Hz | Packaging carton : 560*360*370mm |
Charger: 15A | Output wave form:Modified sine wave |
This inverter is suitable for Mobile phone ,12inch color TV, video games console, Electric light, Satellite TV receiver, CD or DVD player. HIFI, Electric fan, Notebook, 19 inch color TV, Small-medium printer, Home theater system, Power drill, Rice cooker, Small coffee machine, Refrigerator, Small microwave oven, and so on.
In our factory, we have most dedicated employees who work professionally in the area of PCB design, SMT mounting, welding, lead wire cutting, general assembly, testing and packing.we can do car inverter , power inverter , pure sine wave inverter with charge .
