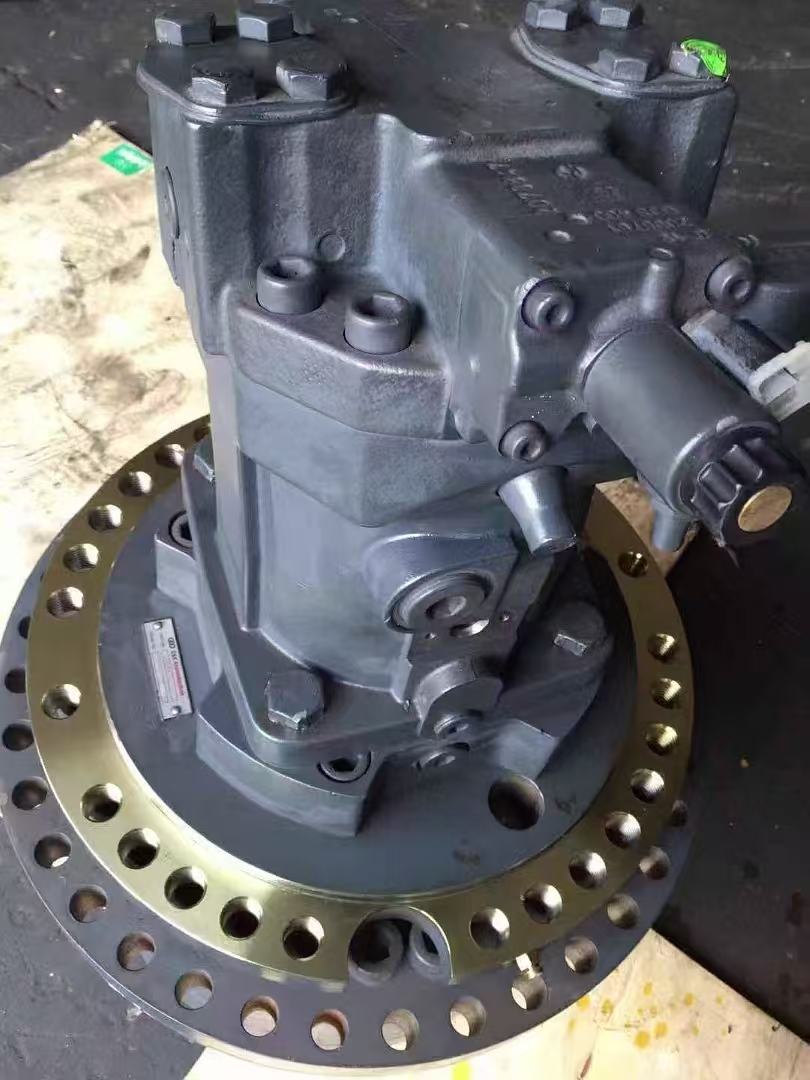

Replacement Rexroth A6VM215 hydraulic pump

2 week ago

0 0 

3 year

Product details

Rexroth A6VM215, structured with technical clarity and operational workflow:

I. Technical Parameter Verification

• Displacement Range: 80–250 cc/rev (A6VM215 typically 215 cc/rev). Match displacement with the original system to avoid flow deficiency or overload.

• Operating Pressure: Rated at 400 bar, peak at 450 bar. Confirm system maximum pressure does not exceed this limit.

• Speed Limits: Maximum 3,900 rpm. Ensure compatibility with drive motor/engine speed.

• Materials & Seals: Cast iron housing, compatible with hydraulic oil media. Temperature range 30–90°C; align with system oil temperature requirements.

II. Step-by-Step Replacement Procedure

1. Safety Preparation

• De-energize the system and drain hydraulic oil. Wear protective gear to prevent high-pressure oil splashes.

2. Old Pump Removal

• Disassemble mounting bolts, piping, and electrical connections using wrenches/screwdrivers. Label pipe routing.

• Separate pump body from drive shaft; avoid damaging oil seals or bearings.

3. Cleaning & Inspection

• Remove contaminants from the mounting base. Inspect worn components (e.g., plungers, swashplate, port plate) of the old pump.

4. New Pump Installation

• Align with dowel pins and secure the new pump, tightening bolts evenly to specified torque (refer to Rexroth manual).

• Reconnect piping, ensuring leak-free joints. Replace O-rings and seals.

5. Commissioning & Testing

• Fill with hydraulic oil meeting ISO 3448 standards (e.g., HLP46).

• Start the system; monitor pressure, flow, and noise. Operate for 10 minutes without anomalies before full deployment.
