Product details
LHB Series High Speed Cold Extrusion Hydraulic Press
It is a professional forming equipment that integrates advanced mechanical engineering, hydraulic technology and intelligent control. It is tailored for metal cold extrusion process and shines in the field of precision parts manufacturing.

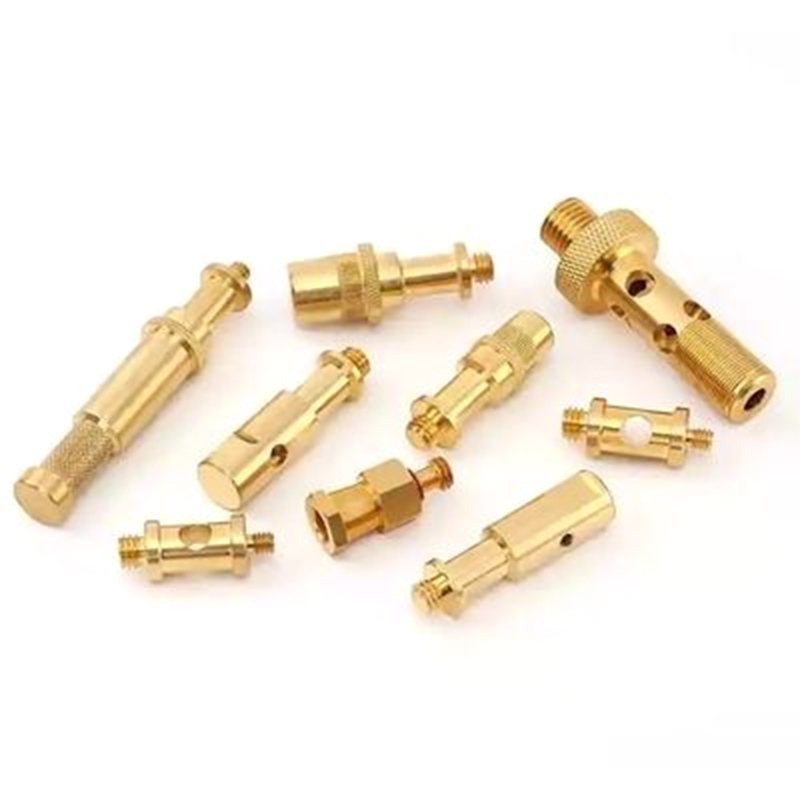

Whether it is metal connectors with complex shapes or high-strength precision shaft components, this high-speed cold extrusion hydraulic press can be your right-hand man to improve product competitiveness and move towards intelligent manufacturing with its high performance, high precision and high efficiency.
Forging Press Characteristic：
1. The oil cylinder adopts integral forging and precision grinding, and has high reliability when used under high pressure.
2. The four pillars are made of high-strength materials and coated with hard chromium on the surface, with good wear resistance.
3. The activity board and workbench are equipped with optional return cylinders, which are suitable for the return requirements of cold extruded products.
4. Adopting hydraulic systems imported from Taiwan and high-precision design, it is safe and reliable.
5. Pressure, stroke, and holding pressure can be adjusted according to the requirements of the pressing process.
6. PLC programming circuit design, touch screen action optional operation, realizing digital control.
Forging Press Scope of application：

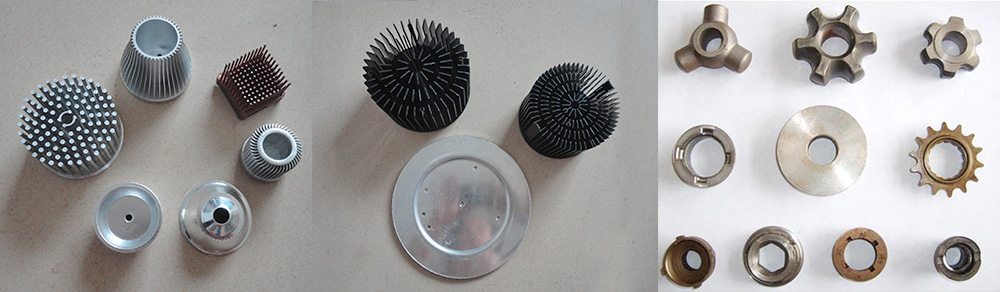

1. Mainly suitable for cold forging, warm forging and extrusion molding of metal materials, as well as embossing, shallow drawing, blanking and other purposes. Such as automobiles, motorcycles, bicycles, mobile phone shells, LED radiators, watch cases, hardware tools, etc.
2. Especially suitable for precision molding parts, such as hydrogen energy bipolar plate compression molding.
Our forging equipment comes from Shengshi Weiye Machinery. Our hydraulic components and electrical accessories such as Forging Press and Hydraulic Trimming Press are sourced from countries such as Germany and Japan, and are imported with original equipment. The machine quality is stable and the specifications are rich, with over a hundred choices ranging from 1 ton to 5000 tons. Widely used in various industries such as hardware, electronics, machinery, etc.
72 hour after-sales service, engineer video guidance. One stop solution for molds and processes.
What is the biggest benefit of a long-term stable manufacturer? We, Shengshi Weiye Machinery, can bring you: 1. Quality assurance; 2. The most reasonable price; 3. The fastest delivery time; 4. The best after-sales cooperation. Come to us to order Forging Press machinery.
There are many kinds of mechanical products, and we have not uploaded all of them. If you don’t see the machine you want in our store, you can contact our sales staff and tell us the name of the equipment (such as: Hydraulic Stamping Press, 50 ton hydraulic press), and we will help you check and quote.
| Project | unit | Specification | |||||||
| Units | LHB-200 | LHB-300 | LHB-500 | LHB-650 | LHB-800 | LHB-1000 | LHB-1200 | ||
| Master cylinder | Nominal force | Kn | 2000 | 3000 | 5000 | 6500 | 8000 | 10000 | 12000 |
| Main cylinder | journey | mm | 350 | 350 | 400 | 400 | 500 | 500 | 500 |
| Fast downlink speed | mm | 230 | 210 | 200 | 180 | 160 | 150 | 150 | |
| Pressing speed | mm | 20 | 20 | 18 | 8/16 | 8/16 | 8/16 | 8/15 | |
| Return speed | mm | 200 | 200 | 180 | 160 | 150 | 130 | 130 | |
| Edge pressing cylinder | Nominal force | Kn | 30 | 30 | 30 | 40 | 50 | 50 | 50 |
| Blank holding cylinder | Maximum stroke | mm | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Ejector cylinder | Nominal force | Kn | 30 | 30 | 40 | 50 | 50 | 50 | 50 |
| Knock-out cyinder | Maximum stroke | mm | 100 | 100 | 150 | 150 | 150 | 200 | 200 |
| Opening height | mm | 650 | 650 | 700 | 700 | 900 | 900 | 1000 | |
| Open height | |||||||||
| Effective area of workbench | Left and right (inside the column)L-R | mm | 600 | 600 | 650 | 800 | 1000 | 1000 | 1200 |
| table area | Front and back (edge)F-B | 700 | 750 | 800 | 950 | 1000 | 1000 | 1300 | |
| Motor power | Kw | 15 | 15 | 18.5 | 22 | 37 | 59 | 74 | |
| Oil consumption (approx.) | L | 450 | 450 | 500 | 550 | 650 | 800 | 900 | |
