pressure screen for paper mill
2 month ago
Description:
Inflow pressure screen is the fine screening screen before paper machine, Can be applied to a variety of paper pulp, Such as wastepaper, re-bleaching, and chemical pulp.
Main Features:
1.Inflow design and long lifetime of screen cylinder
2.low energy consumption and low pulsation
3.High efficiency to long fiber screening ,stable product structure
4.Optimized design structure of screen makes the screening pulp flow more smoothly
5.Optimized device structure, installation occupies less space
Technical Parameters:
| Screen Area (m2) | 0.46 | 0.75 | 1.00 | 1.32 | 1.90 | 2.54 | 2.77 | 3.36 | 4.37 | 5.37 | 6.40 | 7.66 |
| Inlet consistency(%) | 0.15-1.0 | |||||||||||
| Capacity-hole (t/d) | 20-40 | 30-60 | 60-100 | 70-130 | 110-160 | 140-260 | 200-300 | 250-400 | 260-520 | 350-600 | 420-700 | 500-900 |
| Capacity-slot (t/d) | 15-25 | 25-45 | 50-75 | 55-80 | 80-120 | 100-160 | 120-250 | 150-300 | 180-320 | 220-400 | 260-480 | 350-600 |
| Inlet pressure(mpa) | 0.1-0.4 | 0.1-0.6 | ||||||||||

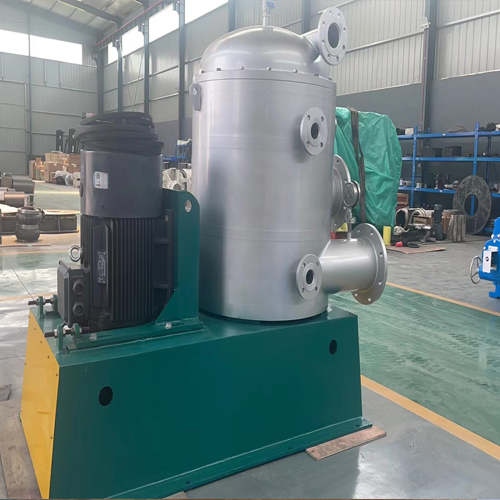

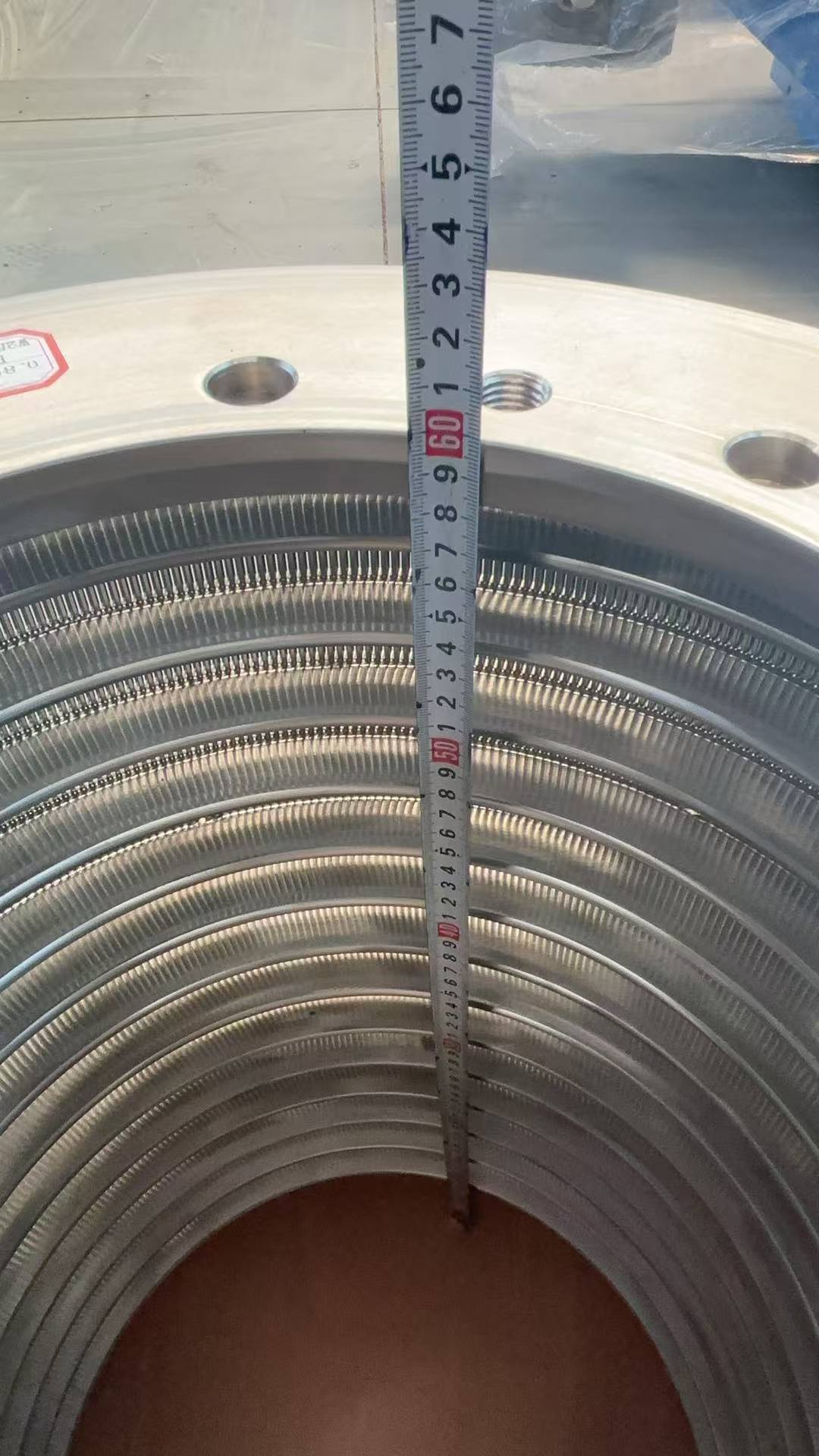

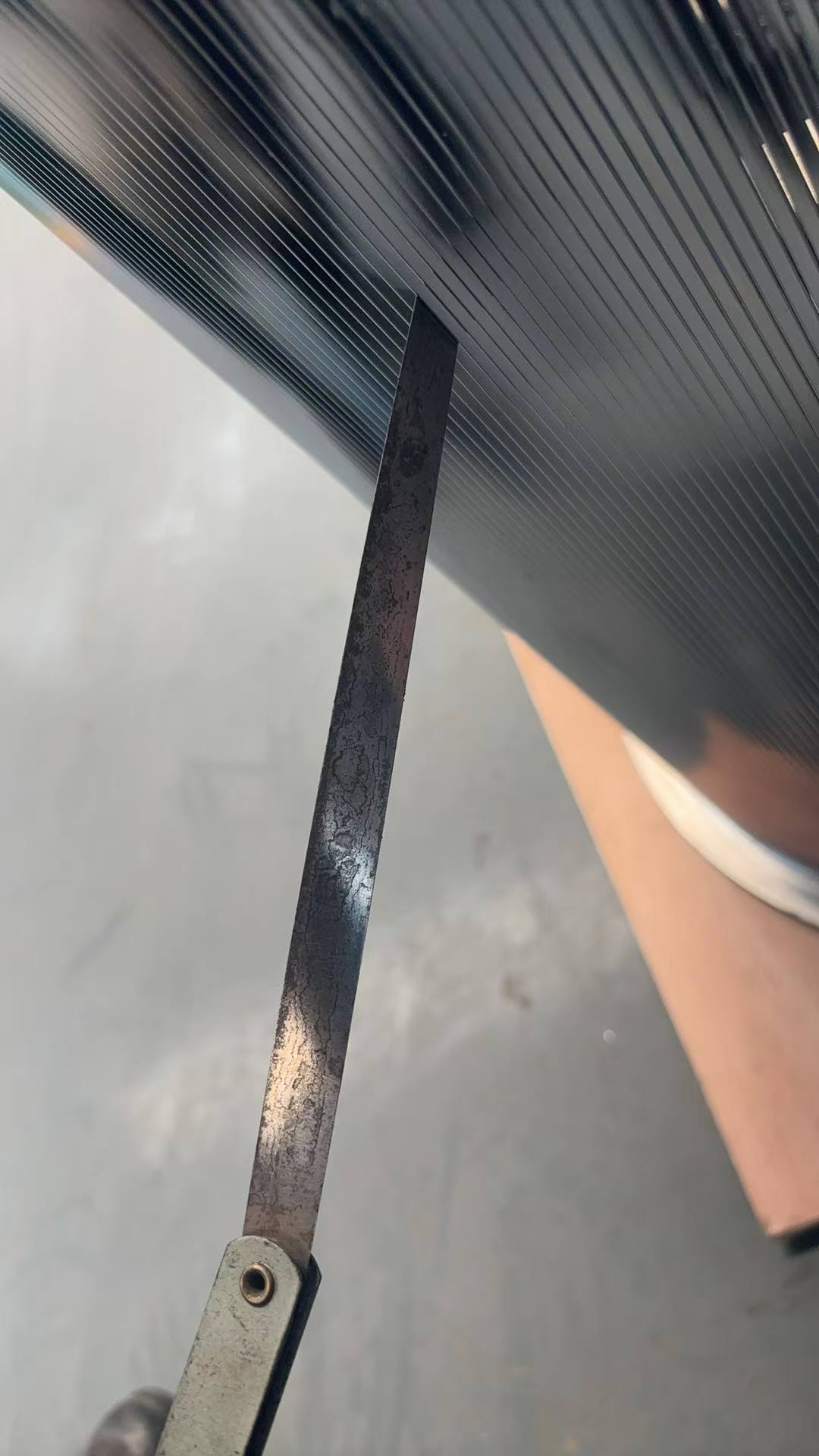

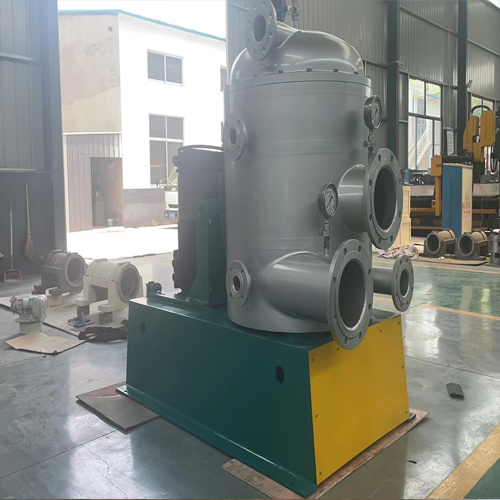

Photos Of Inflow Pressure Screen
