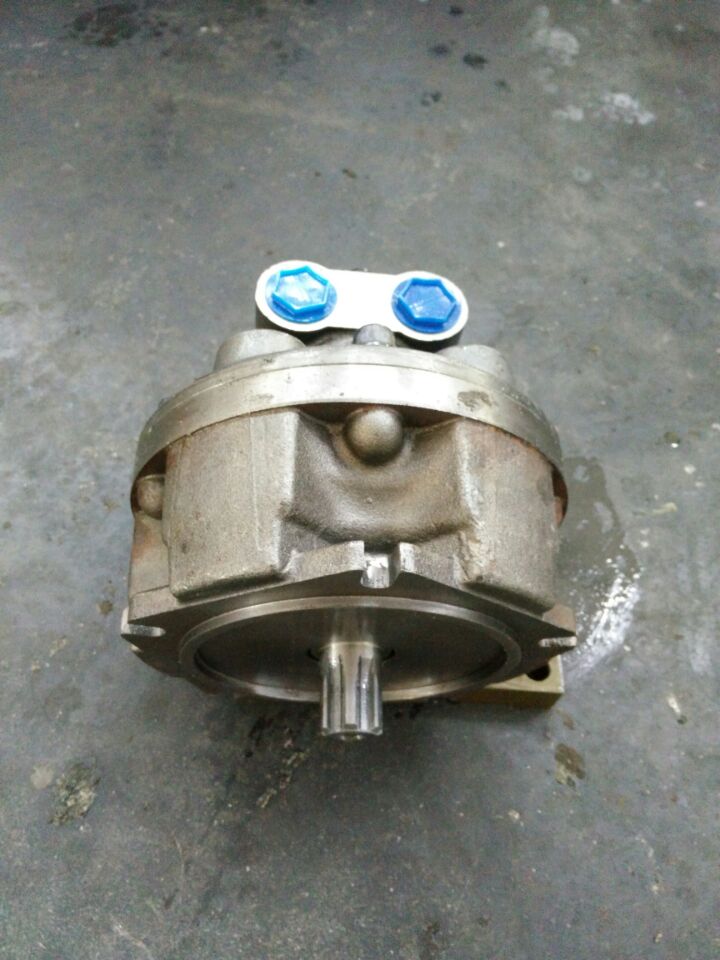

GM1-300B Internal Five-Star Motor

2 month ago

3 0 

3 year

Product details

GM1-300B Internal Five-Star Motor: Technical Analysis & Translation Optimization

1. Key Information Breakdown

The model"GM1-300B Internal Five-Star Motor"appears to be alow-speed, high-torque (LSHT) hydraulic motorwith a5-lobed internal gerotor/orbital design(common in Chinese manufacturing). Below is a structured breakdown:

【表格】

Component Analysis & Translation

Model Name GM1-300B (likely manufacturer-specific code; "GM" may denote series, "300" displacement, "B" revision)

"Internal" Refers to the star-shaped rotor positioned inside the outer ring (gerotor mechanism).

"Five-Star" Indicates a 5-lobed internal gear/rotor (key to torque efficiency).

"Motor" Confirms it is a hydraulic motor (not electrical or pneumatic).

2. Recommended English Technical Name

To align withglobal hydraulic industry standards, the translation should:

• Avoid literal "Five-Star"(which could imply quality ratings, not technical design).

• Emphasize the gerotor mechanism(critical for torque and efficiency).

Optimized Translation:

"GM1-300B Five-Lobe Internal Gerotor Hydraulic Motor"

(Rationale: "Gerotor" is the recognized term for this internal gear design.)

3. Technical Context & Specifications (Hypothetical Example)

While exact specs are manufacturer-dependent, typical parameters for such a motor might include:

【表格】

Parameter Example Value Explanation

Displacement 300 cc/rev (assumed from "300" in model) Volume of fluid per revolution (affects torque output).

Max. Pressure 250 bar (3,625 psi) Typical for LSHT motors in construction/agriculture.

Max. Torque ~1,200 Nm (885 lb-ft) Derived from displacement × pressure (e.g., 300 cc × 250 bar ≈ 1,175 Nm).

Speed Range 50–500 RPM Low-speed operation for high-load applications.

Mounting Style SAE B or DIN 5482 (common for LSHT) Flange/shaft dimensions for compatibility.

Efficiency 88–92% (typical for gerotor designs) Internal leakage and friction losses.

4. Why "Gerotor" Matters

• Mechanism: Astar-shaped internal rotor(5 lobes) meshes with an outer ring, creatingvariable displacement chambersfor fluid-driven rotation.

• Advantages:

• High torque at low speeds(ideal for winches, conveyors).

• Compact design(fewer parts than gear motors).

• Smooth operation(less pulsation than piston motors).
