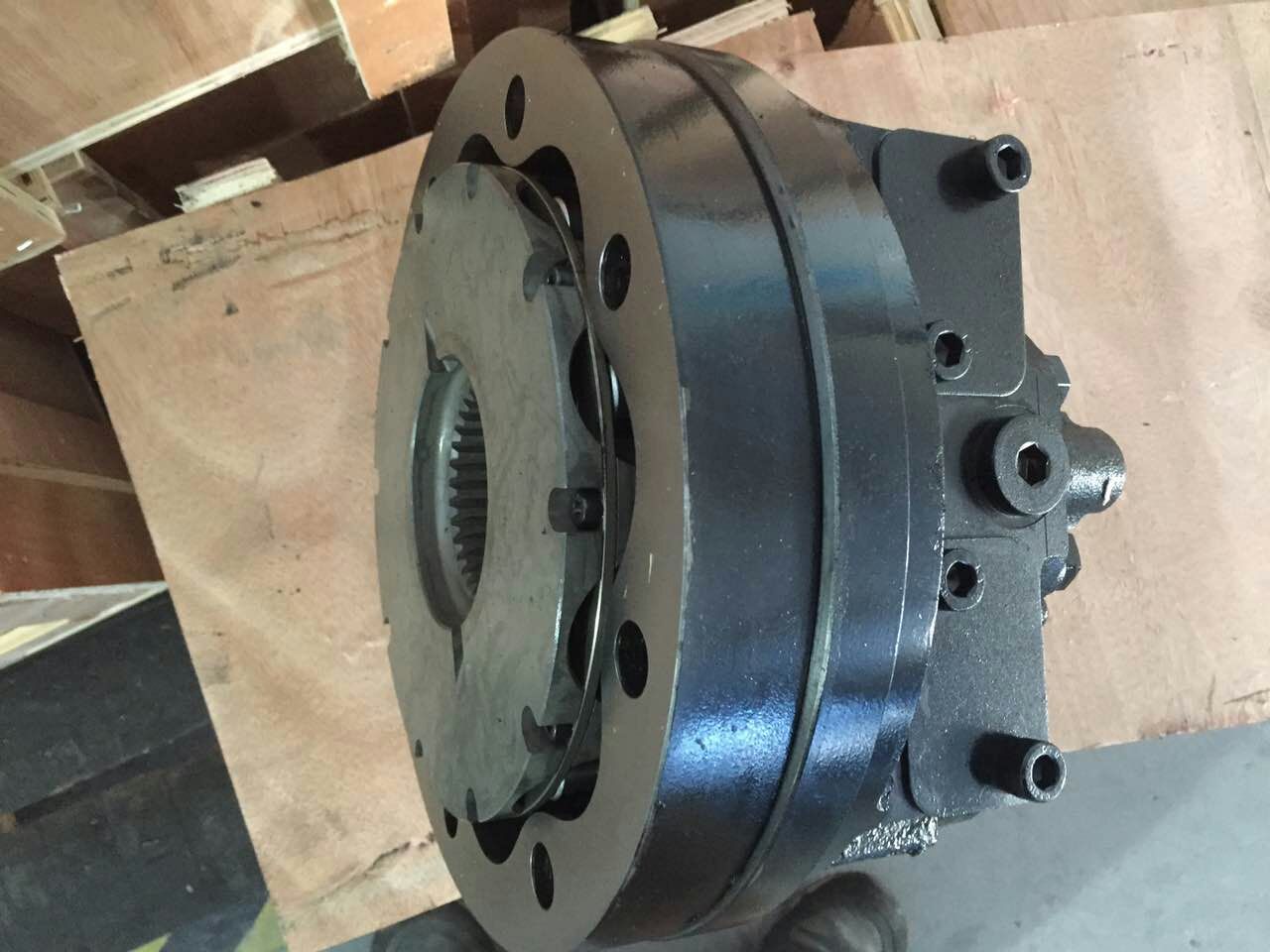

MCR Series Hydraulic Motor Overview
TheMCR Series hydraulic motoris a specialized component designed for converting hydraulic energy into mechanical rotational power, commonly used in industrial machinery, mobile equipment, and heavy-duty applications. Below is a detailed breakdown of its key features, applications, and advantages:
------
1. Key Features of MCR Series Hydraulic Motors
• High Torque Output:
• MCR motors are engineered forhigh-torque, low-speedapplications, making them ideal for heavy machinery like excavators, winches, and conveyor systems.
• Example: A 100cc displacement MCR motor can generate up to500 Nm torqueat rated pressure (e.g., 250 bar).
• Variable Displacement Options:
• Some models in the MCR series offeradjustable displacement(e.g., MCR1340), allowing users to fine-tune speed vs. torque demands dynamically.
• Integrated Brake Systems (e.g., MCR10 with Brake):
• TheMCR10 with Brakevariant includes aspring-applied, hydraulically-released brakefor safety in applications like cranes or hoists, preventing unintended motion when hydraulic pressure is lost.
• Robust Construction:
• Heavy-duty shafts, bearings, and seals ensure durability inhigh-pressure (up to 350 bar)andhigh-shock-loadenvironments.
• Efficiency & Control:
• Advanced valve designs (e.g., spool valves, disc valves) minimize internal leakage, improvingoverall efficiency (up to 90%).
• Bidirectional operation allows reversible motion for applications like augers or drill rigs.
------
2. Applications of MCR Series Motors
The MCR series excels in demanding scenarios wherereliability, power density, and controlare critical:
【表格】
Application Example Use Case Key Requirement
Construction Excavator swing drives, trencher rollers High torque, shock resistance
Mining Conveyor drives, winch systems Continuous duty, overload protection
Agriculture Harvester headers, feed mixers Dust/debris resistance, variable speed
Material Handling Forklift masts, palletizers Precise control, smooth acceleration
Marine Anchor winches, deck cranes Corrosion resistance, saltwater exposure
------
3. Technical Specifications (Example: MCR1340 Semi-Motor)
TheMCR1340 Semi-Motor(a partial or compact variant in the series) may include:
• Displacement: 1340 cc/rev (adjustable in some models)
• Max Pressure: 300 bar (4,350 psi)
• Speed Range: 50–500 RPM (dependent on displacement)
• Mounting: Flange, foot, or shaft-mounted options
• Seals: Double-acting lip seals for high-pressure protection
(Note: "Semi-Motor" may imply a modular design or partial integration with other components, depending on the manufacturer’s definition.)
------
4. Advantages Over Competitors
• Compact Design: Higher power-to-weight ratio than gear motors.
• Customization: Brake integration, valve options, and displacement adjustments.
• Durability: Longer service life in harsh conditions (e.g., -30°C to +80°C operating temperatures).
• Cost-Effectiveness: Lower lifecycle costs due to reduced maintenance needs.
------
5. Limitations & Considerations
• Lower Efficiency at High Speeds: Compared to piston pumps, MCR motors may lose efficiency above 800 RPM.
• Initial Cost: Higher upfront investment vs. simpler vane motors.
• Noise: May produce more audible operation than electric motors in enclosed spaces.
------
6. Selection Criteria
When choosing an MCR motor, consider:
1. Required Torque & Speed: Match displacement to load demands.
2. Brake Requirements: Prioritize safety in vertical-load applications (e.g., MCR10 with Brake).
3. Environmental Factors: Temperature, dust, and moisture exposure.
4. Integration: Compatibility with existing hydraulic systems (flow, pressure, valves).
------
Conclusion
TheMCR Series hydraulic motoris a robust, high-performance solution for industrial and mobile applications requiringhigh torque, reliability, and control. Its variants (e.g., MCR10 with Brake, MCR1340 Semi-Motor) offer flexibility for specialized needs.
For precise selection, consult the manufacturer’s technical catalogs or contact a hydraulic systems engineer to ensure optimal performance in your application.
Let me know if you'd like a deeper dive into any specific aspect (e.g., sizing calculations, competitor comparisons)!
