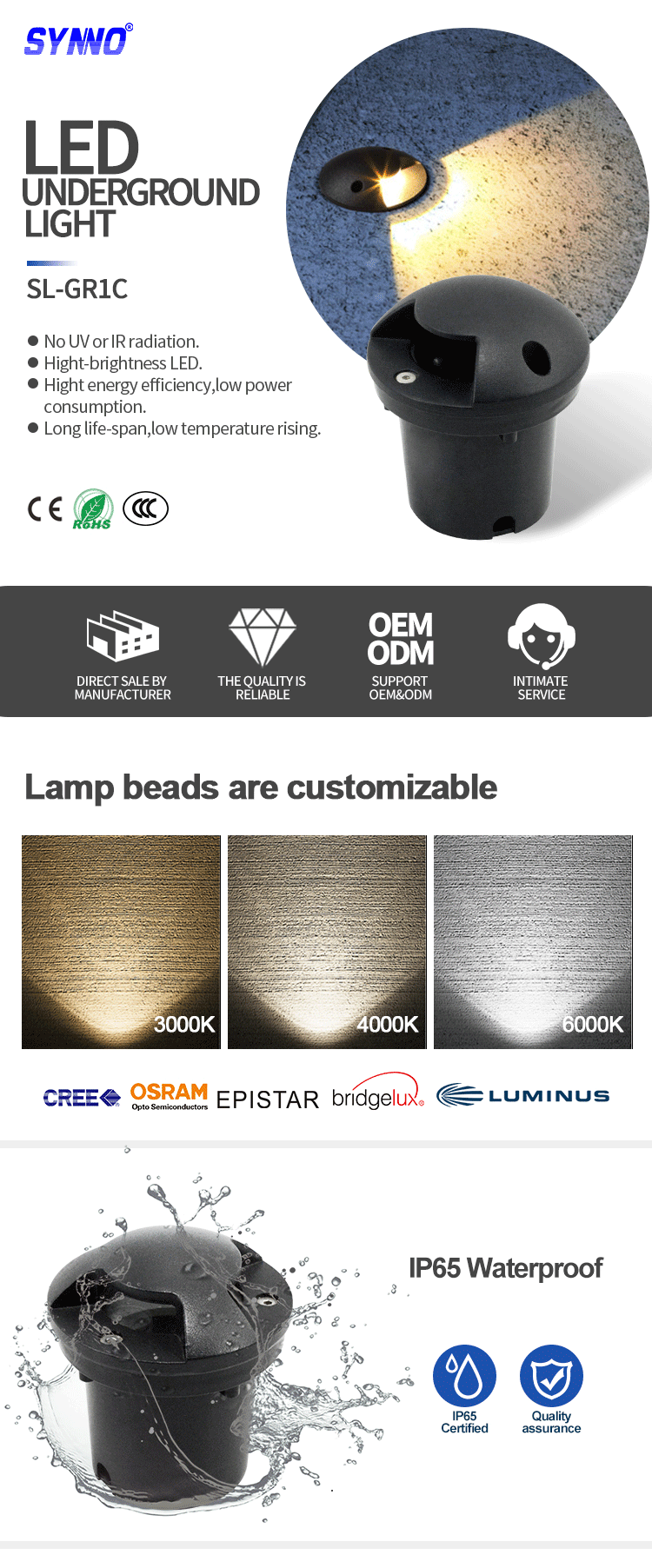

Synno Lighting Outdoor Inground Light Model SL-GR1C
2 year ago
SL-GR1C Outdoor Underground Lamp Ground Light For Pathway Decoration | Multi Beam Dome Circular Deck Light 3W 5W 6W 7W 9W 12W One Way Two Way Four Way Cross Ring Radial Louver Covers Φ80 100 120 150 160 180 200mm IP65 AC100-265V DC12 24V RGB Stainless Steel Ring for Stair Deck Gravel and Paving
The SL-GR1C is a dome-topped underground ground light that spreads light horizontally instead of straight up. Six interchangeable opening patterns on the dome - a single window, opposite twin windows, a four-way cross, a ring of rectangular windows, radial slits or full vertical louvers - shape the beam into a one-way fan, a two-way wash, a four-way star or a 360-degree glow, letting one family of buried fixtures cover stair treads, wooden decks, gravel beds and paved walkways with exactly the light pattern each space needs.
Key Difference: This is the multi-beam dome ground light of the Synno underground family - six dome cover designs from one-way to 360-degree louvered glow, in powers from 3W to 12W and diameters from Φ80 to Φ200mm. Where the GR1E fires a fixed 60-degree uplight, the GR1M tilts its beam and the GR1L draws lines, the GR1C scatters horizontal light around a walkway, deck or stair with a soft, glare-free dome glow.
Feature Highlights
Outdoor Underground Lamp Ground Light Pathway Decoration
Multi-beam dome fixture for paths.
SL-GR1C Multi Beam Dome Ground Light 3W 12W
Six patterns, six power levels.
Circular Deck Light Horizontal Beam Dome
Horizontal, glare-free ground glow.
One Way Two Way Four Way Cross Light Openings
Beam shape chosen by the dome cover.
Φ80 200mm Inground Dome Light
Seven diameters, four heights.

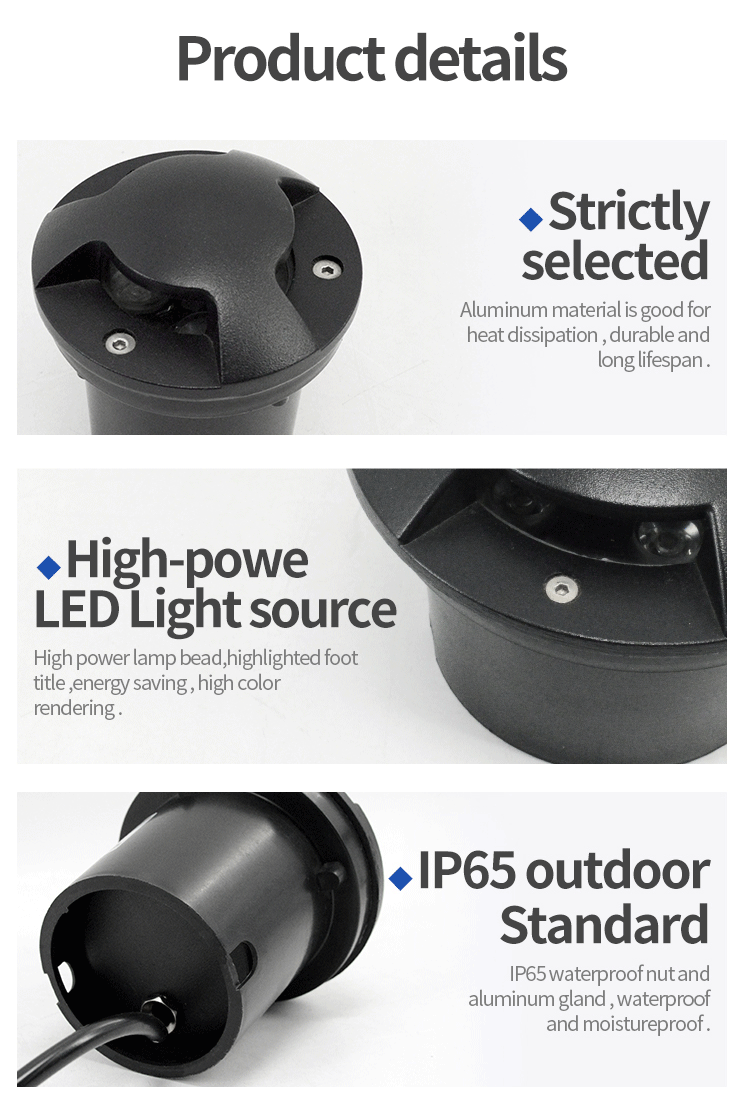

IP65 Die-Cast Aluminum Ground Lamp
Weather-sealed for years outdoors.
Plastic Embedded Body Multi Beam Well Light
Lift-out service without breaking paving.
Stair Deck Path Ground Light Warm White RGB
White to RGB color options.
Technical Specifications
| Model | Power | Dome Opening Pattern |
|---|---|---|
| SL-GR1C | 3W | Single hooded opening - one-way beam |
| SL-GR1C | 5W | Two opposite openings - two-way wash |
| SL-GR1C | 6W | Four-way cross - star pattern |
| SL-GR1C | 7W | Ring of rectangular windows |
| SL-GR1C | 9W | Radial fine-slit grate dome |
| SL-GR1C | 12W | Wide vertical louver dome - 360° |
| Parameter | Specification |
|---|---|
| Full Model | SL-FL-GR1C |
| Working Voltage | AC100-265V or AC/DC12-24V |
| Diameter / Height | Φ80 / 100 / 120 / 150 / 160 / 180 / 200mm x H95 / 110 / 120 / 125mm |
| Light Color | White / Warm White / Yellow / Cold White / Blue / Red / Green / RGB (R/Y/G/B/W/WW) |
| IP Grade | IP65 (waterproof nut and aluminum gland) |
| Working Temperature | -20°C to +40°C, 10%-95% RH |
| Materials | Stainless steel trim ring, die-cast aluminum body, glass cover, plastic embedded body |
| Light Source | US Bridgelux or as requested; 80 lm/W; CRI 80; dimmable |
| Warranty | 2 years, 50,000 hours rated life |
| Certifications | CE, RoHS, LVD, EMC, ISO |
Multi-Beam Dome - Choose the Light Pattern
The dome is the soul of the GR1C. Each power step pairs with an opening design that shapes the light before it reaches the ground: the 3W single-hooded dome throws a focused one-way fan for directional accents; the 5W twin-window dome washes two opposite sides of a path; the 6W cross dome paints a four-point star on stair treads; the 7W ring-window dome glows evenly around a planter or bollard; and the 9W radial-slit and 12W louvered domes spread a full 360-degree glow for open areas. Because light leaves the dome horizontally, the fixture reads as a soft luminous cap rather than a blinding uplight - comfortable for eyes at deck and path level.
Seven Diameters, One Installation System
The range spans Φ80 to Φ200mm in diameters of 80, 100, 120, 150, 160, 180 and 200, with body heights of 95 to 125mm, so the same family scales from a subtle 3W path marker to a 12W deck statement. Installation uses the Synno eight-step routine: switch the breaker off, loosen the T-screws with an Allen key, separate the dome cover, glass and lamp body, place the plastic embedded body in cement with the power cord through the wire hole, lower the lamp in and connect it, refit the cover and lock the screws, then switch the breaker on. Later, maintenance is a simple lift-out of the lamp body - the embedded shell stays in the ground.
Colors, Materials & IP65 Weatherproofing
Light color is selectable in white, warm white, yellow, cold white, blue, red, green or RGB, powered by US Bridgelux LEDs (or a chip of your choice) with dimming support and a 50,000-hour life. A stainless steel trim ring guards the glass cover, the body is die-cast aluminum for heat dissipation and long-term durability, and every cable entry is sealed with an IP65 waterproof nut and aluminum gland - rain, sprinkler washdown and morning dew are no problem across the -20 to +40 degree working range.
Typical Applications

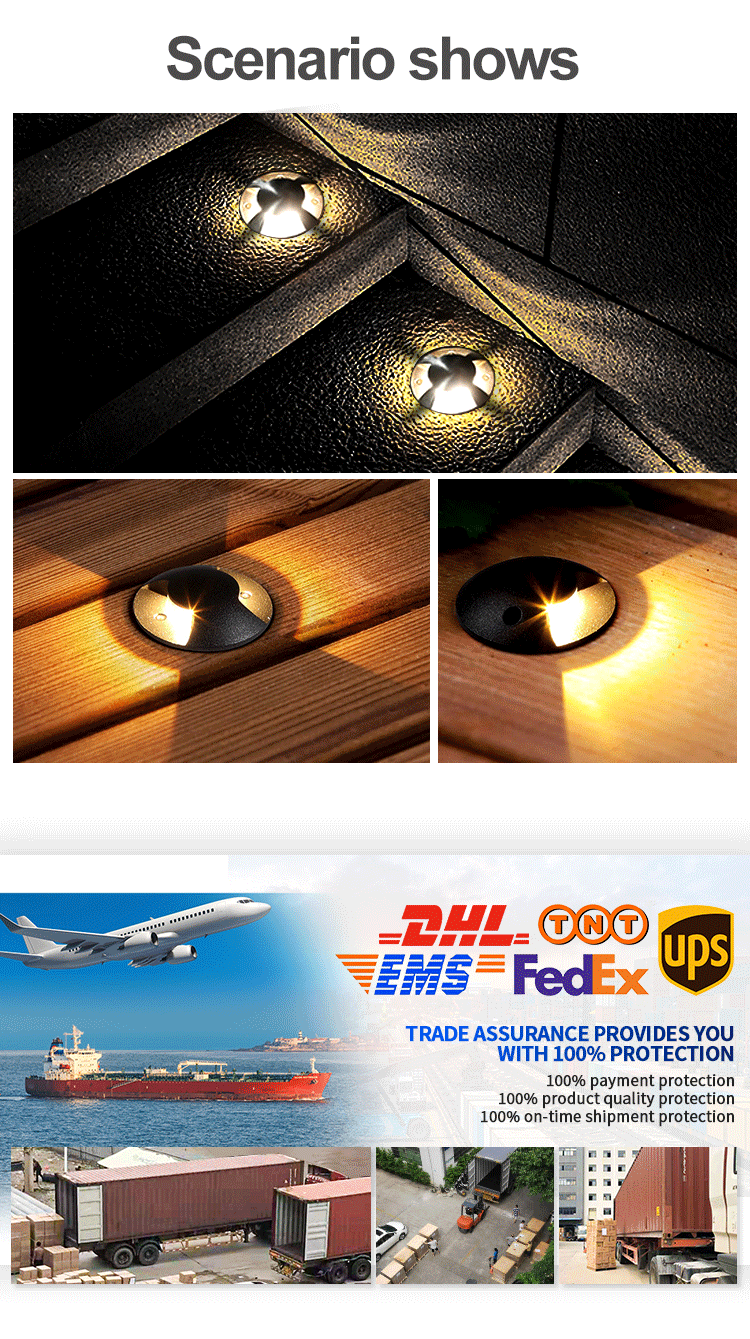

Stair treads - four-way cross domes light each step in a star pattern.
Wooden decks - two-way fans run along the plank lines.
Gravel & planting beds - low dome glows among pebbles and boulders.
Paved walkways & path edges - single-direction beams guide the way.
Driveways & driveways borders - 360-degree louvered domes mark the perimeter.
Patio & pool surrounds - warm accent caps around entertaining areas.
Related Products
Looking for more Synno underground lighting options? Explore the range:
LED Underground Light Collection - Browse all Synno LED underground lights.
Underground Light Collection - The full Synno underground range.
Square Underground Light Collection - Square in-ground uplights.
Mini Underground Light Collection - Compact mini underground lights.
COB Ground Uplight Underground Light - A COB ground uplight for paths.
SL-GR1H Floor Recessed Thin Ground Light - The thin recessed GR-family sibling.
SL-GR1E In-Ground COB Uplight - The fixed 60-degree uplight of the same GR family.
18W Anti Glare LED Underground Light - An anti-glare underground light.
Square Underground Inground Uplight - A square in-ground uplight for landscape.
Why Choose Synno
Direct Sale by Manufacturer
Factory-direct pricing with strict quality control and global delivery.
The Quality Is Reliable
Selected materials, certified for outdoor use.
OEM / ODM Support
Custom dome pattern, size, color and packaging.
Intimate Service
Dedicated account management from sample to after-sales.
FAQ & Ordering Information
What is the model number? SL-GR1C (full code SL-FL-GR1C).
What beam patterns are available? One-way single window, two-way opposite windows, four-way cross, ring of rectangular windows, radial slits and full vertical louvers - one per power step from 3W to 12W.
What sizes are available? Φ80, 100, 120, 150, 160, 180 and 200mm, heights 95 to 125mm.
What colors are available? White, warm white, yellow, cold white, blue, red, green and RGB.
Is a transformer required? For AC100-265V wiring no transformer is needed; only the DC12/24V low-voltage configuration uses one.
Is it waterproof? Yes - IP65 rated with a waterproof nut and aluminum gland.
Can the light be serviced after installation? Yes - the plastic embedded body stays in the ground while the lamp body lifts out.
When sending your inquiry, please specify: model (SL-GR1C), dome pattern/power, diameter, color and quantity. Contact Synno today for a quotation.
