GFT110-215 Travel Reduction Gearbox
2 month ago
Product details

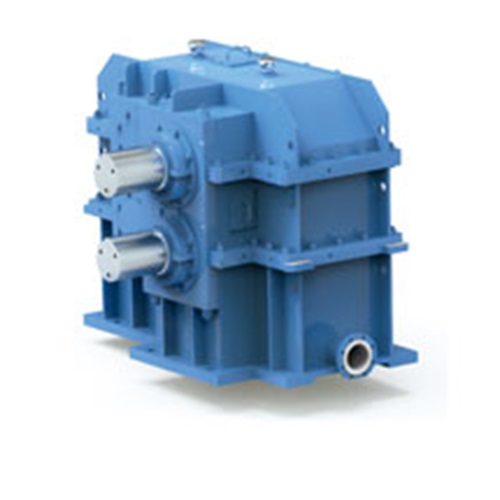

Building Materials Equipment Gearbox: A Comprehensive Overview
1. Definition & Core Function
TheBuilding Materials Equipment Gearboxis a critical mechanical component designed for heavy-duty applications in the construction materials industry (e.g., cement, glass, ceramics, stone processing). Its primary role is totransmit torque, adjust speed, and withstand harsh operating conditionswhile ensuring reliable power delivery to machinery such as crushers, mills, mixers, kilns, and conveyors.
------
2. Key Technical Characteristics
To meet the demands of the building materials sector, these gearboxes are engineered with:
• High Torque Capacity:
• Handles extreme loads (e.g., crushing rocks or mixing cement slurries) via robust gear teeth and reinforced shafts.
• Example: A cement mill gearbox may transmit up to5,000 kWof power at low speeds (~15 RPM).
• Durable Construction:
• Heavy-duty cast iron/steel casings to resist vibration, shock, and abrasion.
• Comparison: Similar to mining gearboxes but optimized forfiner particle processing(e.g., clinker grinding vs. ore crushing).
• Environmental Resistance:
• Sealed designs to protect against dust, moisture, and high temperatures (common in kilns and furnaces).
• Case: Gearboxes in cement plants often operate at80–120°Cwith silica dust ingress risks.
• Customizable Ratios:
• Adjustable gear ratios (e.g., 10:1 to 50:1) to match motor speeds to equipment requirements.
• Application: A vertical roller mill may require a25:1 reductionfor fine grinding.
------
3. Common Applications
Building materials gearboxes are integral to:
【表格】
Equipment Type Function Gearbox Requirement
Cement Kilns Rotating kiln for clinker production High-torque, low-speed (0.5–3 RPM)
Vertical Roller Mills Grinding raw materials/cement Multi-stage reduction (up to 100:1)
Jaw/Cone Crushers Breaking rocks/ores Impact-resistant gears, heavy-duty bearings
Conveyor Systems Transporting bulk materials Continuous duty, dust-sealed designs
Mixers/Blenders Homogenizing cement/concrete Smooth power transfer, minimal vibration
------
4. Design Considerations
Engineers must account for:
• Load Variability:
• Sudden impacts (e.g., from uncrushable objects in crushers) requireshock-absorbing couplingsortorque limiters.
• Thermal Management:
• Cooling systems (fans, oil circulation) to prevent overheating in high-temperature environments.
• Maintenance Accessibility:
• Modular designs for easy replacement of gears/bearings without dismantling entire systems.
• Compliance Standards:
• Adherence toISO 6336(gear rating) andAGMA 6011(industrial gearbox design) for safety and reliability.
------
5. Market Trends & Innovations
• Energy Efficiency:
• Advanced lubrication systems (e.g., forced oil circulation) reduce friction losses by10–15%.
• Predictive Maintenance:
• IoT sensors monitor vibration, temperature, and oil quality topredict failuresbefore they occur.
• Lightweight Materials:
• Use of alloy steels and optimized gear geometry to reduce weight without sacrificing strength.
------
6. Selection Criteria
When specifying a Building Materials Equipment Gearbox, consider:
1. Power Rating: Match motor output (kW/HP) to gearbox capacity.
2. Speed Requirements: Input/output RPM must align with equipment specs.
3. Service Factor: Multiply nominal load by 1.5–2.0 for shock-loaded applications (e.g., crushers).
4. Mounting Style: Horizontal/vertical orientation affects lubrication and cooling.
5. Environmental Rating: IP66/NEMA 4X for dusty/wet conditions.
------
7. Conclusion
TheBuilding Materials Equipment Gearboxis a specialized component tailored to the extreme demands of the construction materials industry. Its design balancestorque, durability, and environmental resilienceto ensure uninterrupted operation in high-stress applications. Advances in materials and monitoring technology are further enhancing efficiency and reliability, driving down lifecycle costs for operators.
