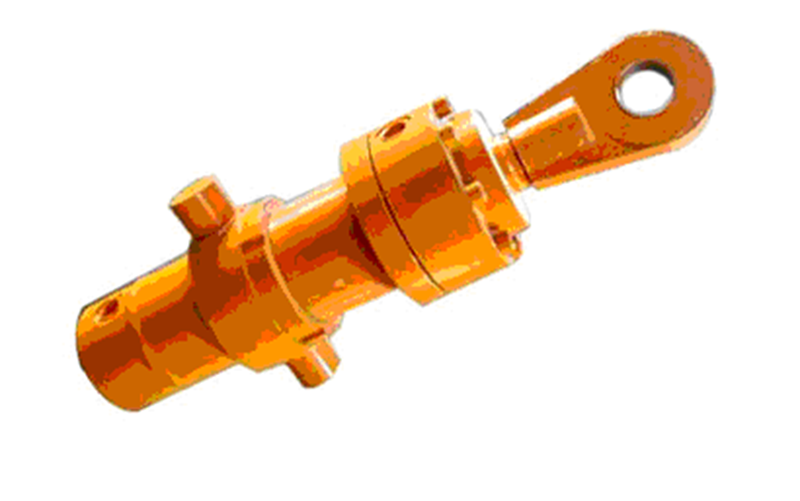

Metallurgical hydraulic cylinder

2 month ago

8 0 

3 year

Product details

Metallurgical Hydraulic Cylinder: Comprehensive Overview

1. Definition & Function

Ametallurgical hydraulic cylinderis a specialized mechanical actuator designed to convert hydraulic energy (from pressurized fluid) into linear motion and force. In metallurgical applications, it plays a critical role inheavy-duty, high-temperature, and high-pressure environments, such as:

• Steel production(e.g., rolling mills, continuous casting machines)

• Aluminum smelting(e.g., furnace tilting, electrode adjustment)

• Metal forming(e.g., forging presses, stamping machines)

• Material handling(e.g., scrap grippers, ladle tilt mechanisms)

2. Key Features for Metallurgical Applications

• High Load Capacity: Designed to withstand extreme forces (often exceeding 1,000 tons) in metal pressing, rolling, or lifting operations.

• Temperature Resistance: Built withheat-resistant seals(e.g., Viton, PTFE) andspecialized coatingsto function in environments up to300°C (572°F)or higher.

• Corrosion Protection: Usesstainless steel/chrome-plated rodsandanti-corrosive paintsto resist oxidation from molten metal splashes and harsh chemicals.

• Precision Control: Incorporatesproportional valvesorservo systemsfor accurate positioning in processes like strip thickness adjustment in rolling mills.

• Leak-Proof Design: Featuresdouble-acting sealsanddust wipersto prevent hydraulic fluid contamination and maintain reliability.

3. Common Types in Metallurgy

【表格】

Type Application Example Key Advantage

Tie-Rod Cylinder Lighter-duty scrap handling, furnace doors Cost-effective, modular design

Welded Body Cylinder Heavy rolling mills, forging presses High strength, compact design

Telescopic Cylinder Ladle tilt mechanisms, scrap baskets Multi-stage extension for limited space

Mill-Duty Cylinder Plate rolling mills, hot/cold strip production High-load capacity, vibration resistance

4. Design Considerations for Metallurgical Use

• Material Selection:

• Cylinder body: High-strength alloy steel (e.g., 42CrMo4) for impact resistance.

• Piston rod: Chrome-plated or induction-hardened steel to prevent bending.

• Sealing Technology:

• High-temperature O-rings(e.g., Kalrez®) for seals near furnaces.

• Metal-to-metal static sealsfor extreme pressure scenarios.

• Cooling Systems:

• Some cylinders integratewater jacketsorair-cooling finsto dissipate heat.

• Mounting Styles:

• Clevis,trunnion, orflange mountsfor stability under heavy loads.

5. Maintenance & Lifespan

• Regular Inspections: Check forseal leaks,rod scoring, andhydraulic fluid contamination.

• Lubrication: Usehigh-temperature greasefor bearings and bushings.

• Repair vs. Replacement:

• Repairable designs(e.g., welded cylinders with replaceable seals) are preferred for cost savings.

• Expected lifespan: 5–15 years, depending on operating conditions.
