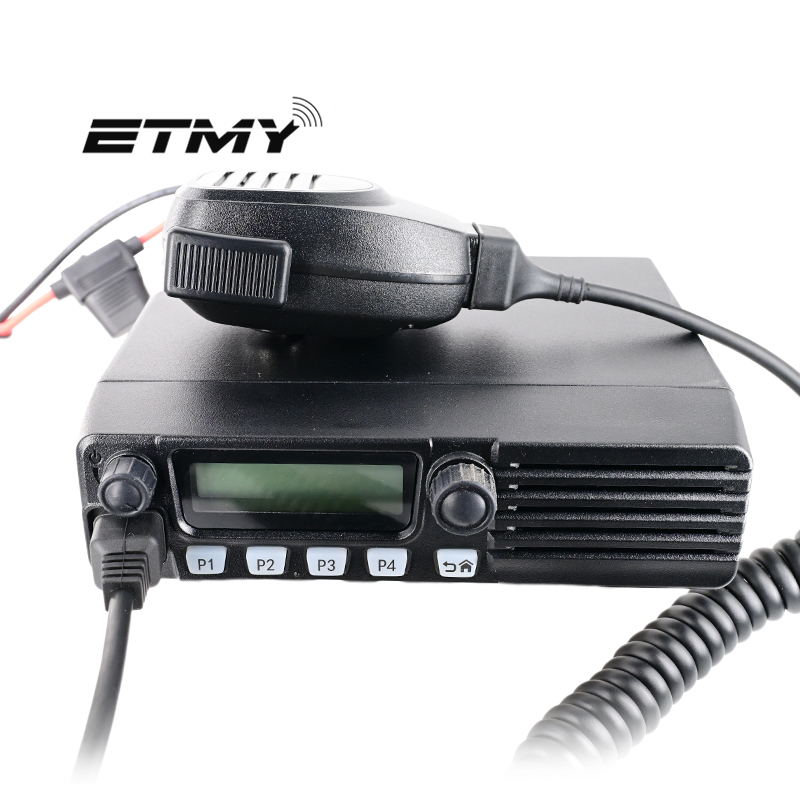

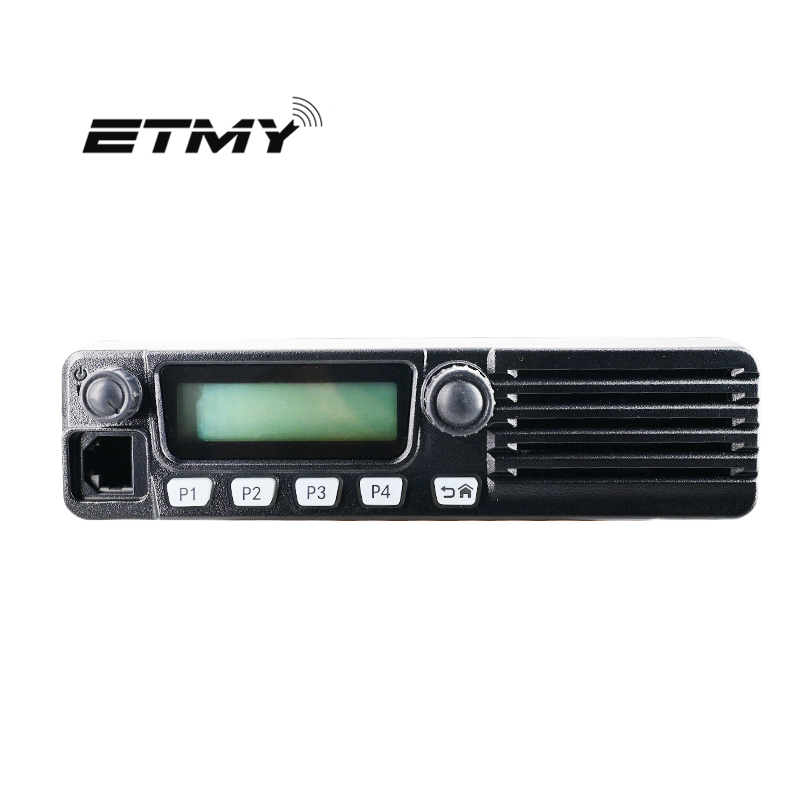

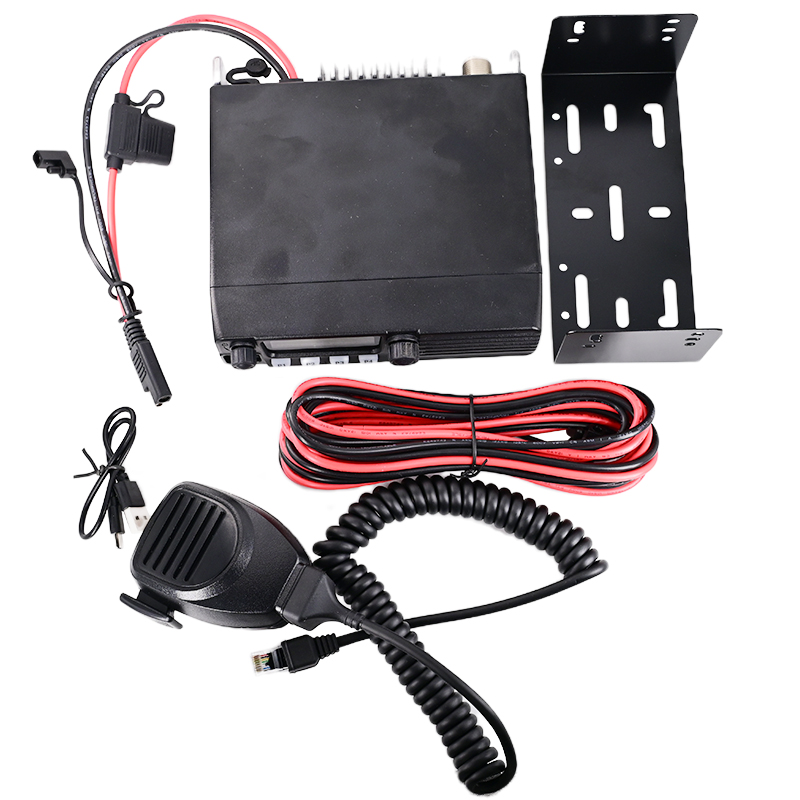

High Power 100W ECOME ET-M90D Vehicle Car Mobile Radio Communicator Base Station VHF UHF Dual Frequency Transceiver1
6 month ago
High Power 100W ECOME ET-M90D Vehicle Car Mobile Radio communicator Base Station VHF UHF Dual Frequency Transceiver
Product features :
- Four frequency Display and Standby
- Mini Size, Power Supply: 13.8V
- Frequency Range Manual Programmable
- Software Password Programmable
- DTMF, 2 Tone & 5 Tone
- Remote Stun, Remote Kill & Remote Revive
- PTT-ID identity code
- FM radio
- Scranbler(Optional)
|
General |
|
|
Frequency |
VHF: 136 ~ 174MHz / UHF: 400~470MHz |
|
Channel Capacity |
1024/64 zones
|
|
Channel Spacing |
5/6.25/10/12.5/15/25KHz |
|
Frequency Stability |
±2.5ppm |
|
Operating Voltage |
13.8V DC ± 15% |
|
Operating Temperature |
-20℃~60℃ |
|
Dimension |
160*158*43 mm |
|
Weight |
2.2kg |
|
Transmitter |
|
|
Output power |
VHF: 60W-25W / UHF: 40W -25W |
|
Modulation |
16KθF3E / 11KθF3E |
|
Signal-noise Ratio(SNR) |
>40dB / >36dB |
|
Modulation Distortion |
<5% |
|
FM Noise |
≥36dB 25KHz /≥40KHz 12.5KHz |
|
Adjacent Channel Power |
≥60dB /≥70KHz |
|
Parasitic harmonic |
≥60dB /≥60KHz |
|
Audio response |
+1-+3dB |
|
Receiver |
|
|
Receive Sensitivity |
0.25μV / 0.35μV |
|
Adjacent Channel Selectivity |
≥60dB / ≥70dB |
|
Inter-modulation Rejection |
≥65dB/ ≥60dB |
|
Spurious Response Rejection |
≥70dB |
|
Audio Response |
+1-+3dB |
|
Rated Audio Distortion |
<5% |
|
Audio output power |
≥2W@10% |
