Synno Lighting Linear LED Underground Light Model SL-GR1L
2 year ago
Linear LED Ground Light Outdoor Waterproof IP65 Underground Light
Description
The Linear LED Inground Light is a modern outdoor lighting fixture designed to provide seamless ground-level illumination for pathways, plazas, gardens, and architectural landscapes. With its long and slim design, this ground light is perfect for linear effects that add a sense of structure and sophistication to outdoor spaces.

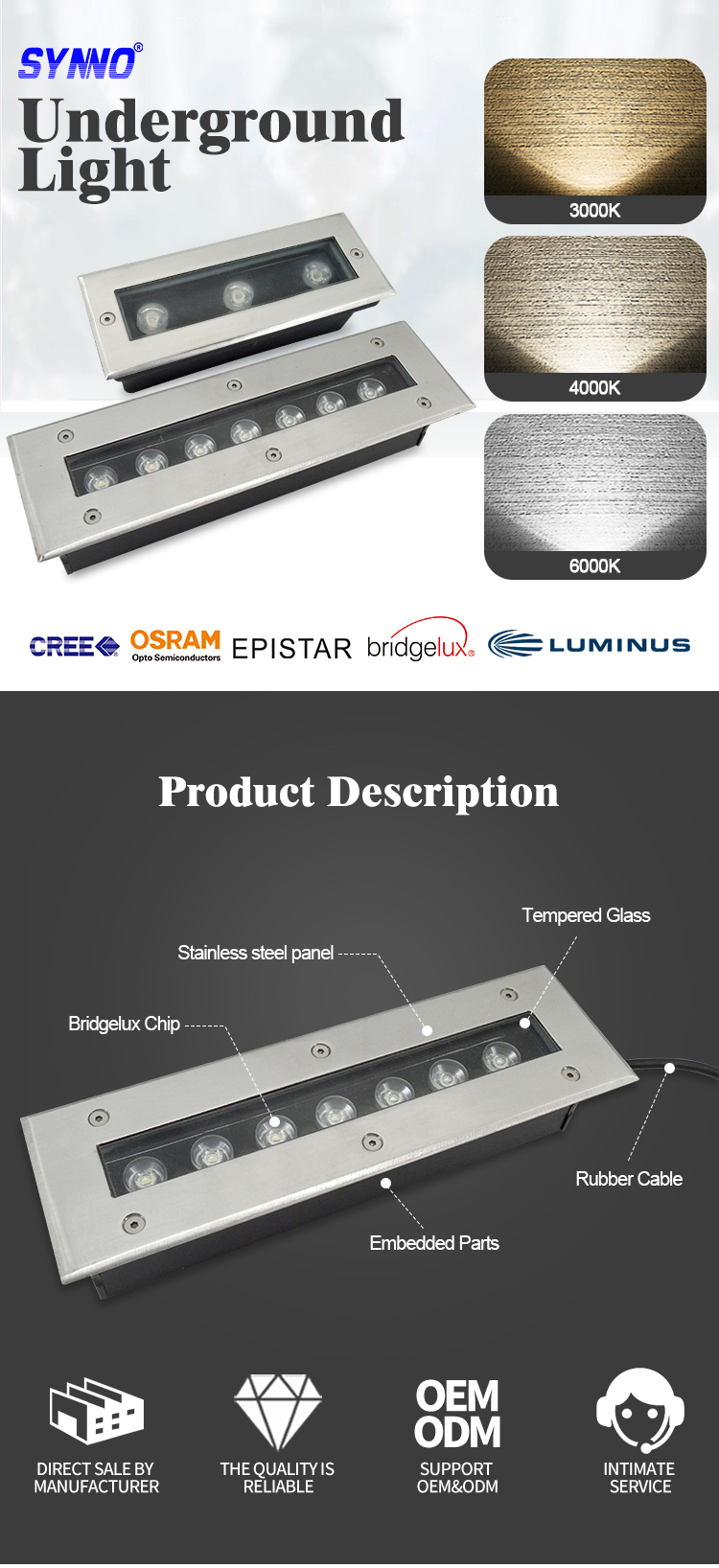

Made with high-strength die-cast aluminum housing and tempered glass cover, the linear ground light withstands outdoor environments with ease. Its IP67 waterproof rating ensures resistance to rain, dust, and soil pressure. The fixture is designed for in-ground installation, making it discreet while delivering powerful illumination.
The linear structure makes it ideal for highlighting edges, steps, building facades, and outdoor walkways. Available in single color (warm/neutral/cool white) and RGB/RGBW dynamic color-changing options, this product is widely used in commercial, residential, and urban landscape projects.
Key Features
-
Sleek linear design for architectural integration. -
In-ground recessed mounting for a minimalist effect.
-
Available in multiple lengths (300mm / 600mm / 1200mm).
-
IP67 waterproof for long-lasting outdoor durability.
-
Optional RGB/RGBW control for dynamic lighting effects.
-
Anti-glare lens design for comfortable lighting.
-
High luminous efficiency with energy-saving LEDs.

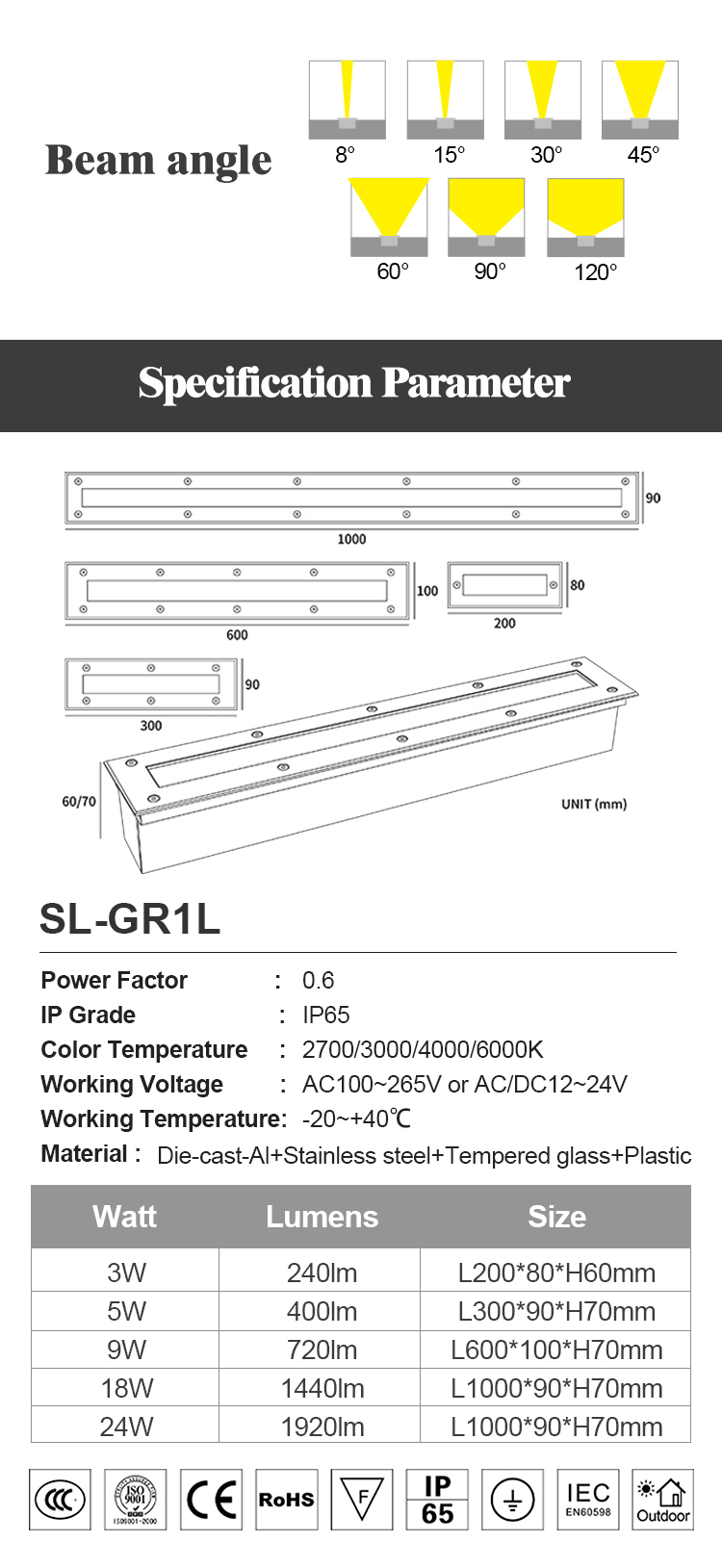

Technical Specifications
| Parameter | Specification |
|---|---|
| Power Options | 3W / 5W / 9W / 18W / 24W |
| Luminous Flux | 240 – 1920 lm |
| Input Voltage | AC 100–240V / DC 24V optional |
| Color Temperature | 2700K–6500K / RGB / RGBW optional |
| CRI | >80 standard |
| Beam Angle | 15° / 30° / 45° / 60° |
| Housing Material | Die-cast aluminum + tempered glass |
| Frame Material | 316 stainless steel (optional) |
| IP Rating | IP65 waterproof |
| Lifespan | 50,000+ hours |
| Installation Depth | 80mm – 120mm (depending on size) |
| Control Options | On/Off, DMX, DALI, Smart Control |
Applications
-
Pathway and walkway illumination.
-
Building facade highlighting.
-
Landscape edges and steps.
-
Outdoor plazas and public spaces.
-
Commercial complexes and hotel exteriors.
The Linear LED Ground Light is the ideal choice for architects and lighting designers who seek modern, minimal, and professional lighting effects.
Advantage:
1、Adjustable narrow beam angle provides focused highlights for architectural features, linear underground light making the scenery more beautiful. High quality chip and has a lifetime of up to 50,000 hours.
2、The convex lens is clear, making these linear led underground lighting look brighter than typical. High-quality stainless steel panel, high-temperature tempered soda-lime glass, high-quality aluminum casing, impact resistance, corrosion resistance, no cracking, no rust, better heat dissipation.
3、Waterproof IP65, rain and lightning protection, greatly improving the stability and long-term use of outdoor lighting such as roads and stairs, porches, terraces, corridors, balconies, etc.
4、Energy-saving and environmental protection. Led underground lights have no gas, no mercury emissions, no ultraviolet rays, no mosquitoes, only 5W of energy (equivalent to 50W halogen lamps), and can save 80% of electricity costs.

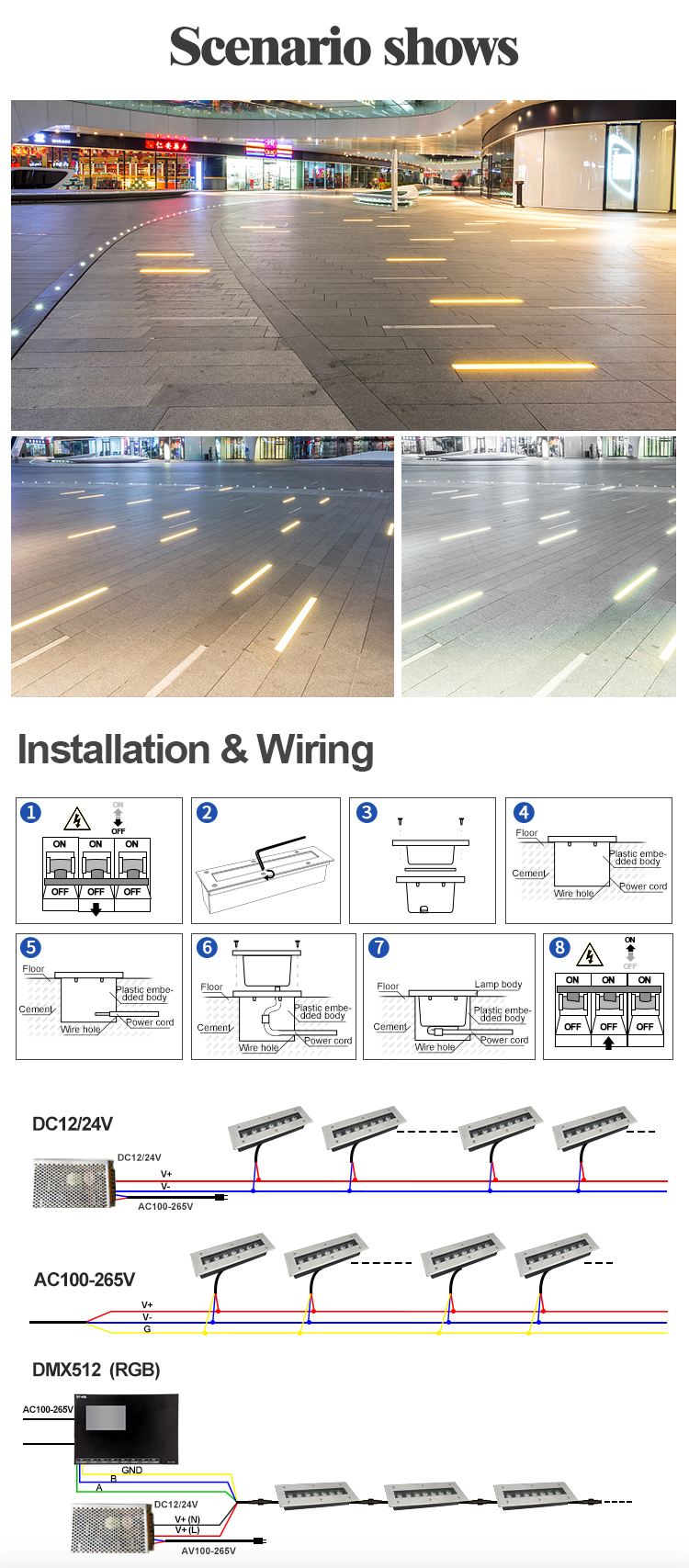

5、Easy Installation. The voltage of this Outdoor Linear Inground Lights are AC85-265V or DC12-24V which widely use in all over the world, there are not need transformer to install the light,, you can connect the light's wires with yours directly, then the light can work
