Trimless LED Downlight from Synno Lighitng Model SL-CL1J

Smart Down Light Trimless COB LED Downlight for Seamless Ceilings

I. Design Philosophy & Architecture

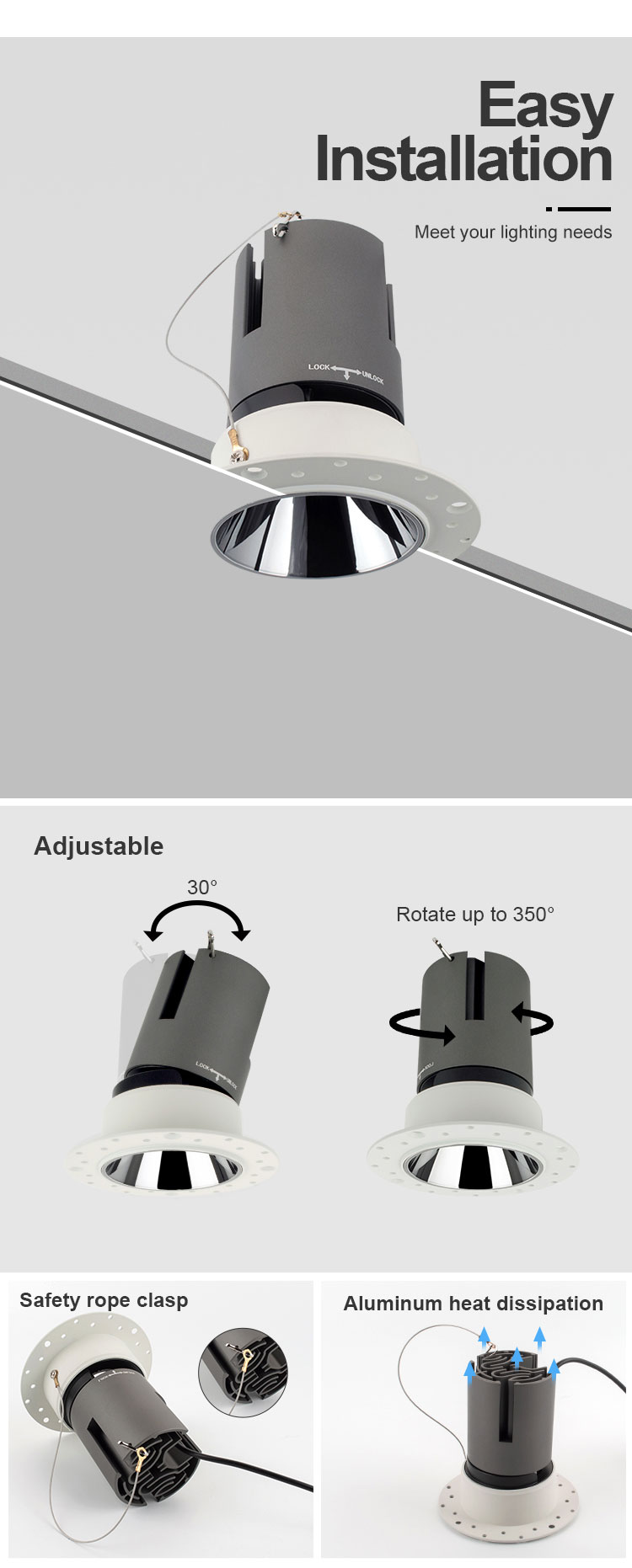

The trimless structure of this downlight enables a completely flush installation, eliminating visible rims or borders. It requires a plaster-in mounting frame, making it ideal for gypsum or drywall ceilings. The sleek construction ensures it blends seamlessly into contemporary and luxury interior spaces.

• Housing Material: Die-cast aluminum

• Finish: Powder-coated matte grey

• Mounting: Requires recessed frame kit (included)

II. Optical System & Lighting Quality

Using a high-performance COB LED module, this downlight delivers a focused, glare-controlled beam suitable for accent and ambient lighting. Reflectors are optimized for high efficiency and available in multiple beam angles.

• Luminous Efficacy: 80-90 lm/W

• Color Temperature Options: 2700K / 3000K / 4000K / 5000K / 6000K

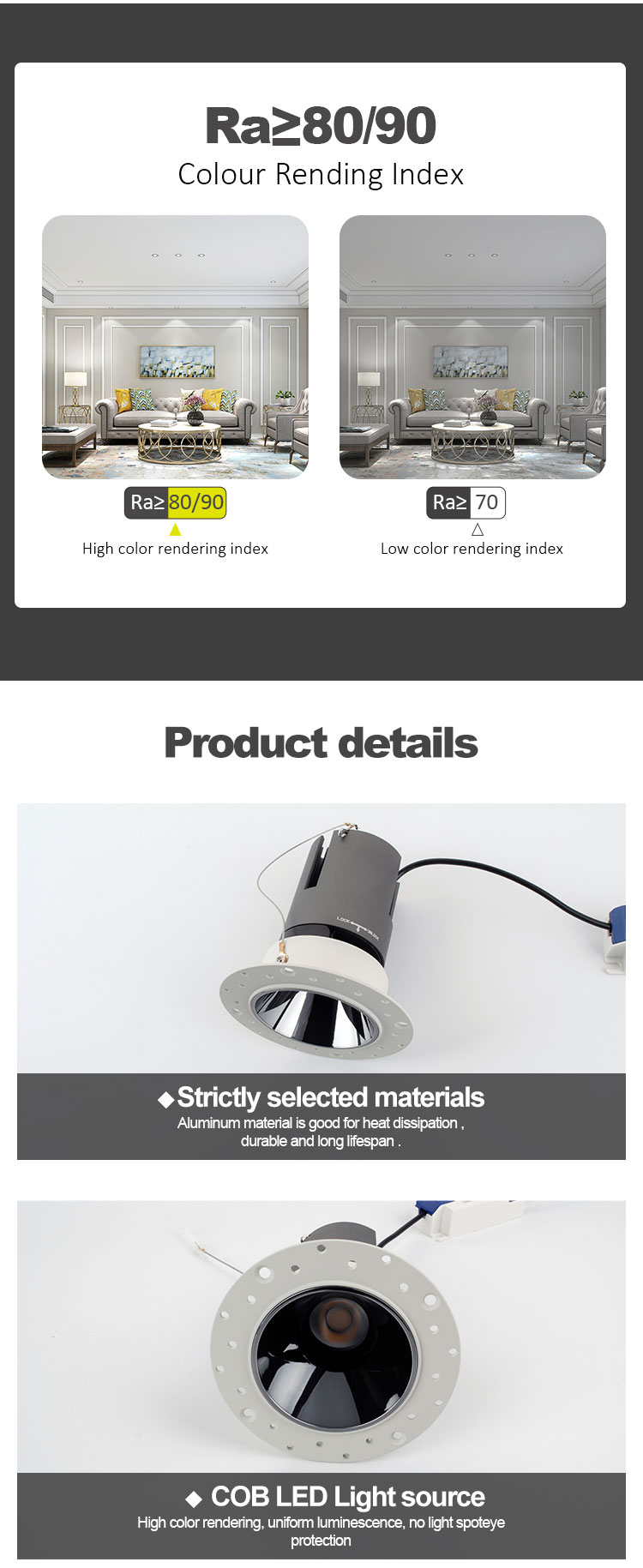

• CRI: >80/90 for superior color accuracy

• UGR: <19 (low glare design)

• Beam Angles: 15°, 24°, 36°, 50°, 60°

III. Specification Table

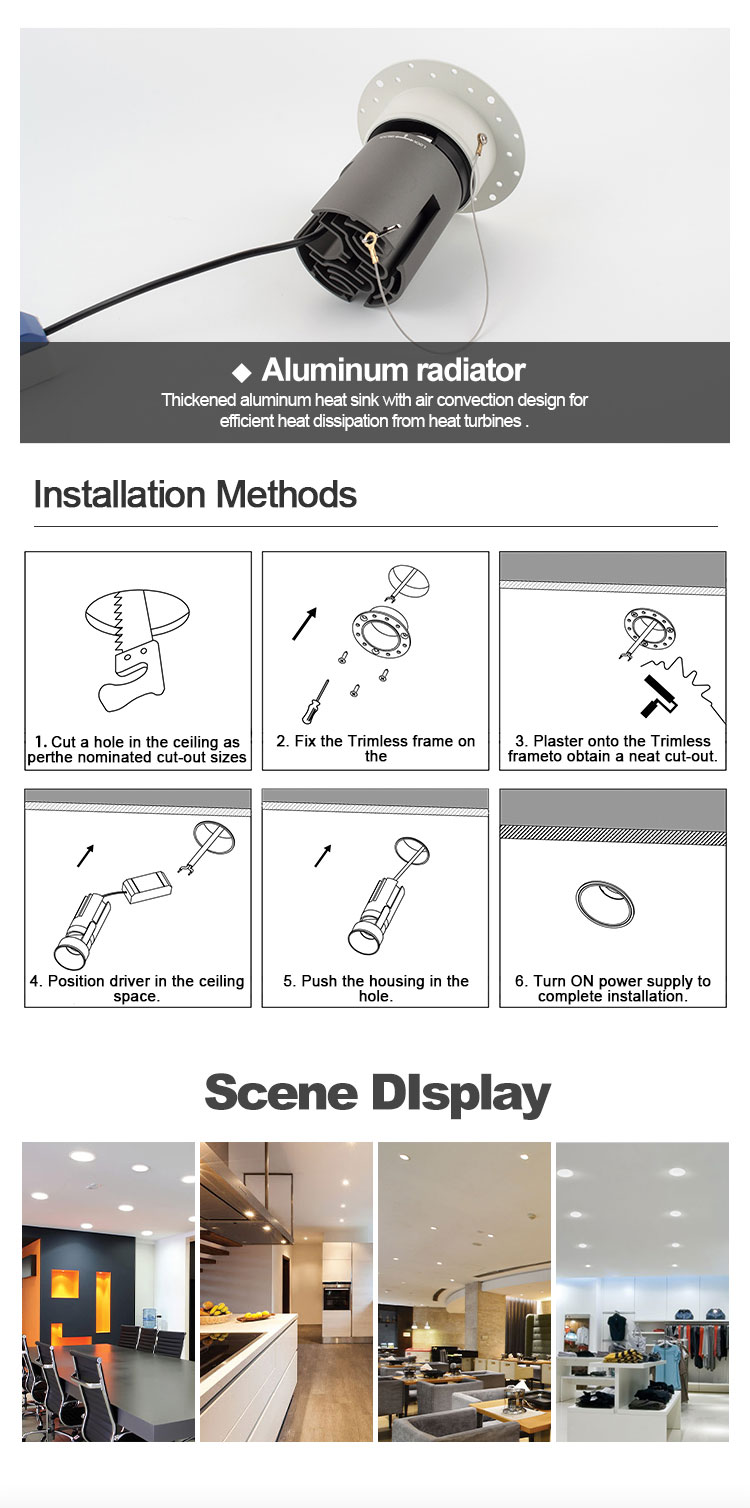

IV. Installation & Wiring

This series is compatible with leading dimming systems and offers flicker-free performance.

• Input Voltage: AC100-240V, AC220-240V

• Driver Types: Non-dimmable / Triac / 0-10V / DALI

• Power Factor: >0.90

• THD: <15%

V. Applications

• High-end residences

• Art galleries and museums

• Hospitality and boutique hotels

• Retail luxury stores

VI. Certifications & Quality Assurance

• CE, RoHS, SAA certified

• LM80 tested LED chips

• ISO 9001 manufacturing process compliance

• 3/5-Year Warranty

VII. Environmental Impact & Sustainability

The product body is fully recyclable, and the LED engine consumes up to 80% less energy than halogen equivalents. The trimless design also reduces ceiling material waste over time.
