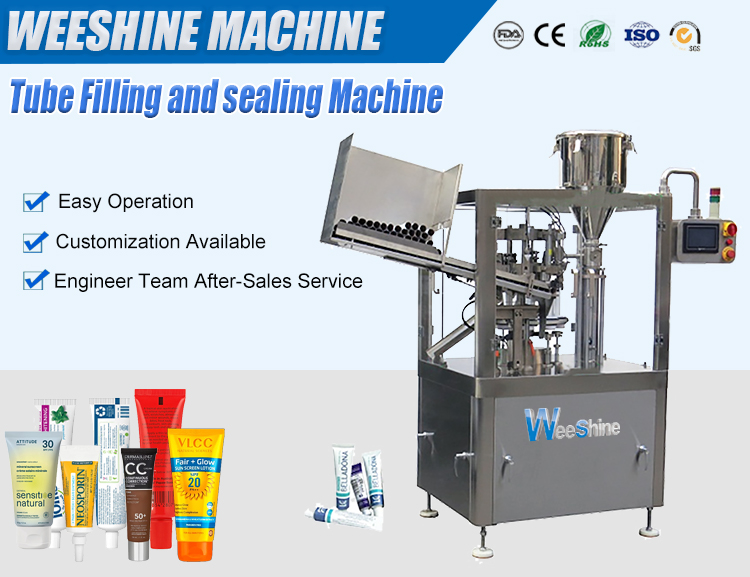

Tube Filling and Sealing Machine
3 month ago
| Product name | Tube Filling and Sealing Machine |
| Filling volume | 1-120ml/unit (Adjustable) |
| Filling accuracy | ±0.01 |
| Capacity | 2400-3600units/hour (Adjustable) |
| Tube diameter | 10-28 mm |
| Tube length | 50-180mm |
| Hopper volume | 40L |
| Machine power | 3kw |
Main Features
1.The transmission section is enclosed below the platform, ensuring safety, reliability, and no contamination.
— easy to observe, operate, and maintain.
3.Controlled by PLC with a human-machine interface (HMI).

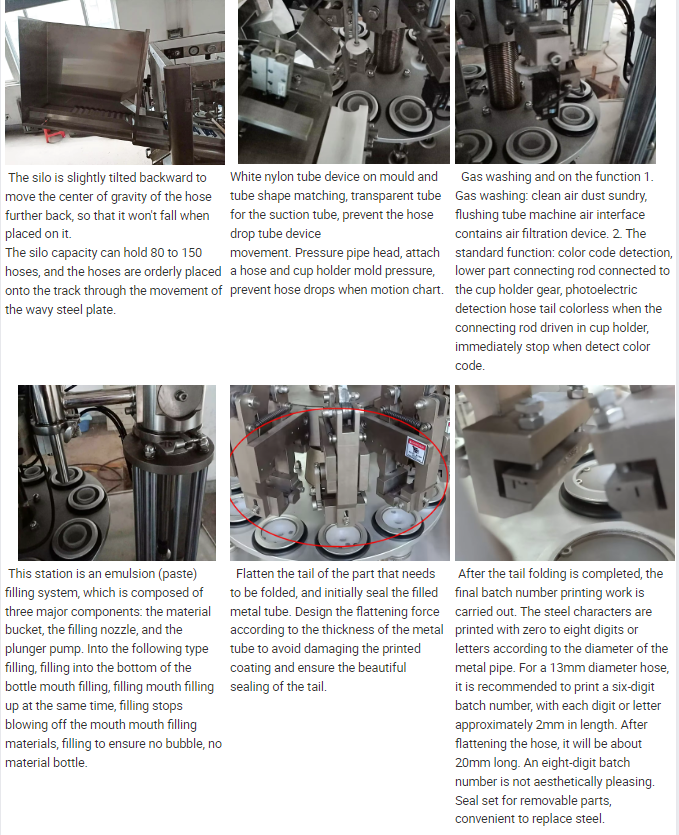

4.The rotary table is driven by a cam, offering high speed and precision.
5.The inclined tube magazine and automatic tube loading system are equipped with a vacuum suction device to ensure
accurate tube placement into holders. (Optional automatic tube sorting machine available.)
6.The photoelectric registration station uses a high-precision sensor and stepper motor to accurately position tube graphics.
7.The filling nozzle is equipped with a material cutoff mechanism to ensure filling accuracy.
8.No tube, no filling.

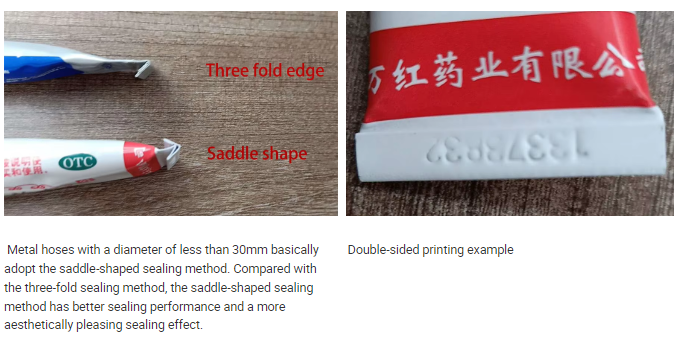

9.The sealing system uses a Leister hot air gun to heat the inside of the tube tail, with an external cooling unit
to lower the temperature.
10.The coding station automatically prints batch codes in the designated position as per process requirements.
11.A shaping manipulator cuts the tube end into right angles, rounded corners, or customized shapes.
12.Fault alarms for no tube, door open, and overload protection with automatic shutdown.
13.Counting function and automatic stop after a preset quantity.
FAQ
1. How do I know the packing machine model is suitable for my product?
Weeshine: Please advise all the below details of your product and we will check for you.
1.Product details
2.Bag shape
3. Bag size for each weight bag: Film width,bag width & bag length
4. Filling weight per bag
5.Packing film material
6. Production capacity per hour
7. Other requirements
15 working days for the small packing machines. It takes longer time for the large-scale machine.
your reference if you could send some samples to us.
in the packing R&D and production over 20+ years.
by yourself before shipping as well.
