Thin LED Underground Light from Synno Lighting SL-GR1H

2 year ago

45 0 

5 year

Product details

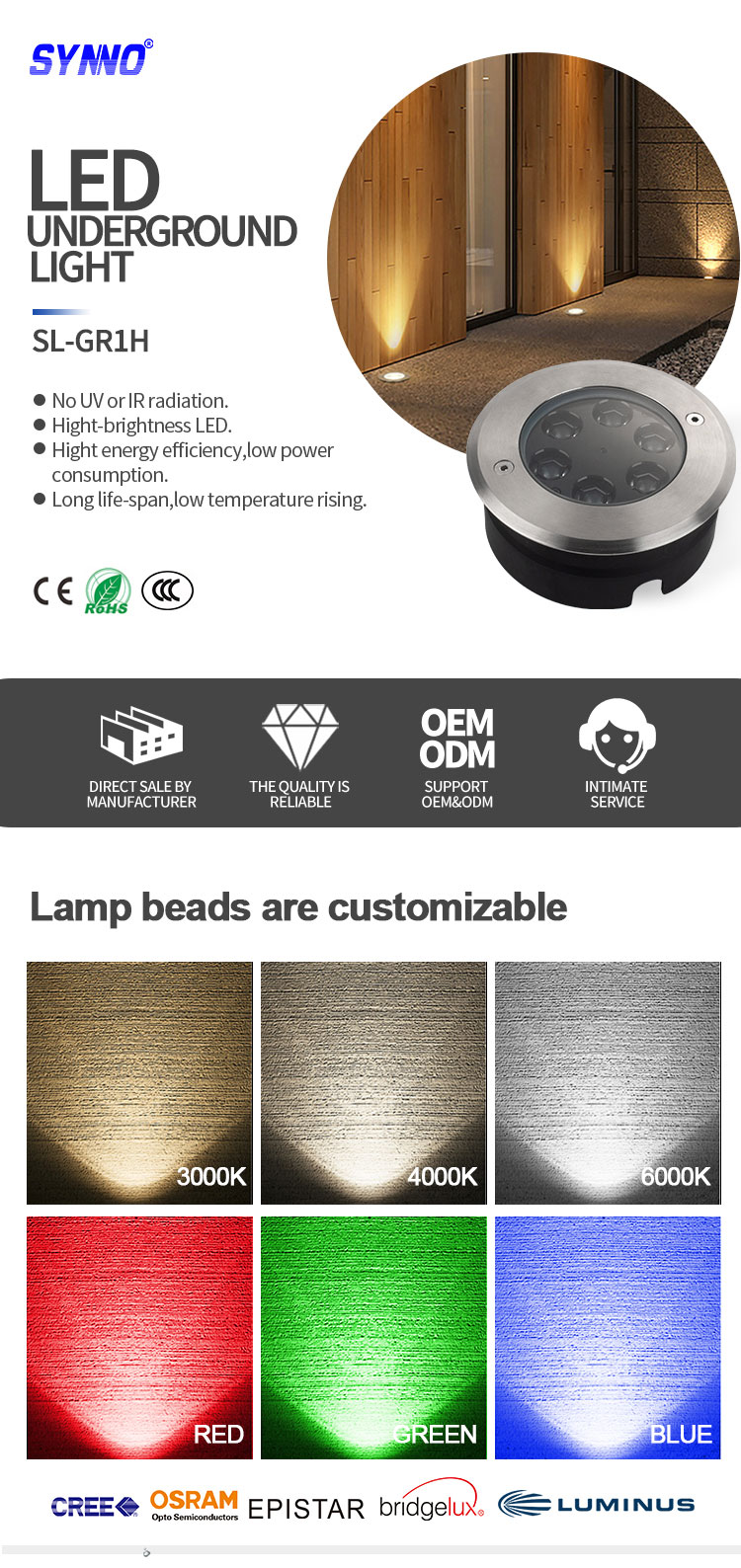

SL-GR1H Floor Recessed Thin Ground Light LED Underground Lamp | Ultra-Slim Inground Uplight 3W 18W Five Sizes 8 Colors RGB IP67 Waterproof Stainless Steel Tempered Glass 8° 15° 30° 45° 60° Beam AC/DC12-24V for Pathway Driveway Garden and Facade

The SL-GR1H floor recessed thin ground light is an ultra-slim, low-profile LED underground lamp engineered for flush installation in pavement, tile and concrete. Five power ratings from 3W to 18W span five diameters from 100mm to 210mm, in eight light colors including RGB. A brushed stainless steel trim with tempered glass cover shrugs off weather and foot traffic, while the IP67 waterproof construction - sealed with a waterproof nut and aluminum gland - keeps the COB source dry through rain, sprinklers and seasonal changes. This makes it a reliable choice for pathways, driveways, gardens, plazas and building facades.

Key Difference: This is the thin/ultra-slim member of the Synno LED underground light family. With only 55mm of installed height, five diameters from 100mm to 210mm, eight color options including RGB, and IP67 protection, one SL-GR1H series covers step lights, driveway markers, tree uplights and facade accent lines - all in one flush-mounted footprint. Low-voltage AC/DC12-24V wiring keeps installation safe and simple.

Feature Highlights

Thin Ground Light LED Underground Lamp

Ultra-slim profile with minimal protrusion for safety.

Floor Recessed Thin Ground Light 3W 18W

Five power ratings from 3W to 18W, five diameters 100-210mm.

Ultra-Slim Inground Light Stainless Steel

Brushed stainless steel trim, corrosion-resistant and durable.

IP67 Waterproof Underground Light

Waterproof nut and aluminum gland, fully sealed for outdoor use.

8° 15° 30° 45° 60° Beam In-Ground Uplight

Five beam options from narrow tree uplight to wide wash.

SL-GR1H Ground Light 100 210mm Diameter

Cutouts from 94mm to 202mm, uniform 55mm body height.

RGB Color Changing Inground Light

Eight colors - white, warm white, RGB, blue, red and more.

Heavy Load Resistance

Die-cast aluminum body that can be safely walked or driven over.

Technical Specifications

Parameter	Specification
Model	SL-GR1H (5W power options, 5 diameters)
Power	3W / 6W / 9W / 12W / 18W
Light Source	COB / LED (CREE, OSRAM, EPISTAR, Bridgelux, LUMINUS customizable)
Color Options	White / Yellow / Cold White / RGB / Blue / Red / Warm White / Green
Beam Angle	8° / 15° / 30° / 45° / 60°
Working Voltage	AC/DC 12-24V (AC100-265V input via driver)
Ingress Protection	IP67
Working Temperature	-20°C to +40°C, 10%-95% RH
Body Material	Die-cast aluminum + stainless steel trim + tempered glass + plastic
Lamp Life	50,000 hours
Warranty	2 years
Certifications	CE, RoHS, ISO9001, IEC EN60598, SAA, SASO

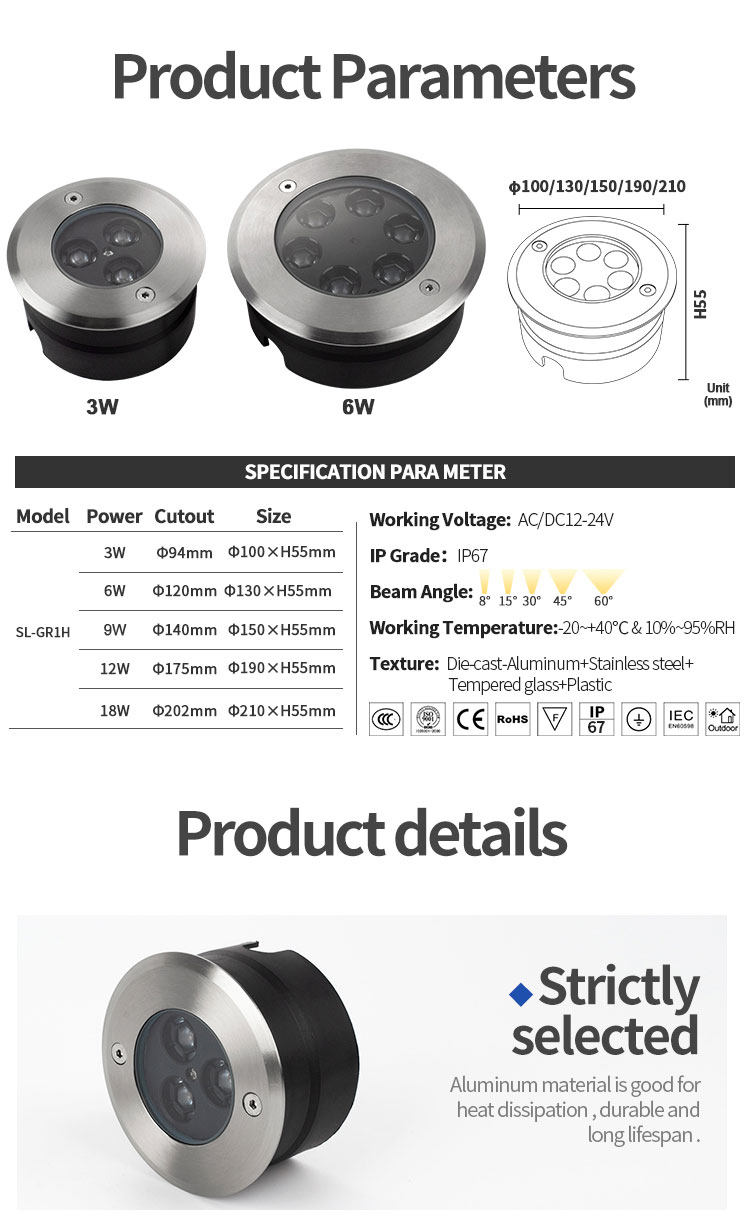

SL-GR1H Size Options

Power	Cutout	Size
3W	Φ94mm	Φ100 x H55mm
6W	Φ120mm	Φ130 x H55mm
9W	Φ140mm	Φ150 x H55mm
12W	Φ175mm	Φ190 x H55mm
18W	Φ202mm	Φ210 x H55mm

IP67 Waterproof & Eight Color Options

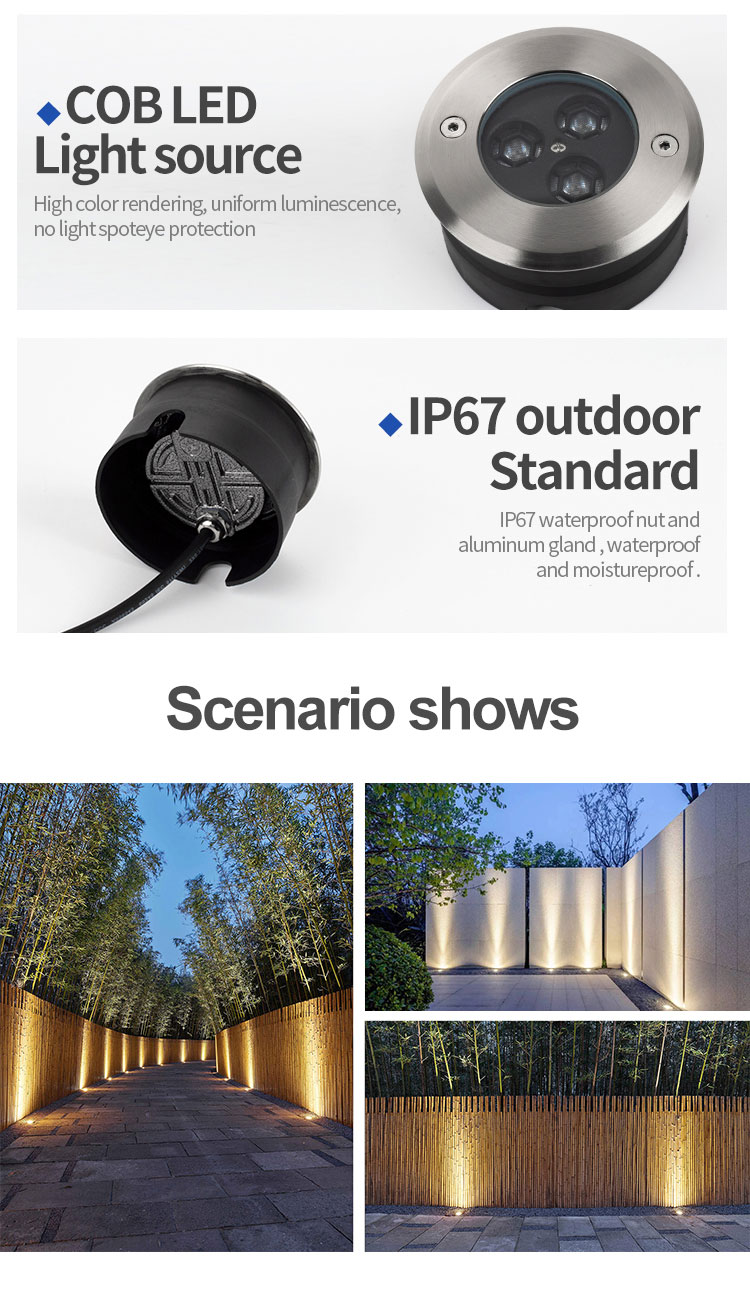

The SL-GR1H is sealed to IP67 with a waterproof nut and aluminum gland, keeping moisture and dust out of the housing through rain, sprinklers and winter weather. Inside, a COB or LED light source delivers uniform, high-color-rendering light with no visible spot, and the brushed stainless steel trim resists corrosion while the tempered glass cover offers high impact resistance and optical clarity. Eight colors - white, yellow, cold white, RGB, blue, red, warm white and green - let you match any landscape scheme, with lamp beads customizable from CREE, OSRAM Opto Semiconductors, EPISTAR, Bridgelux and LUMINUS at 3000K, 4000K or 6000K.

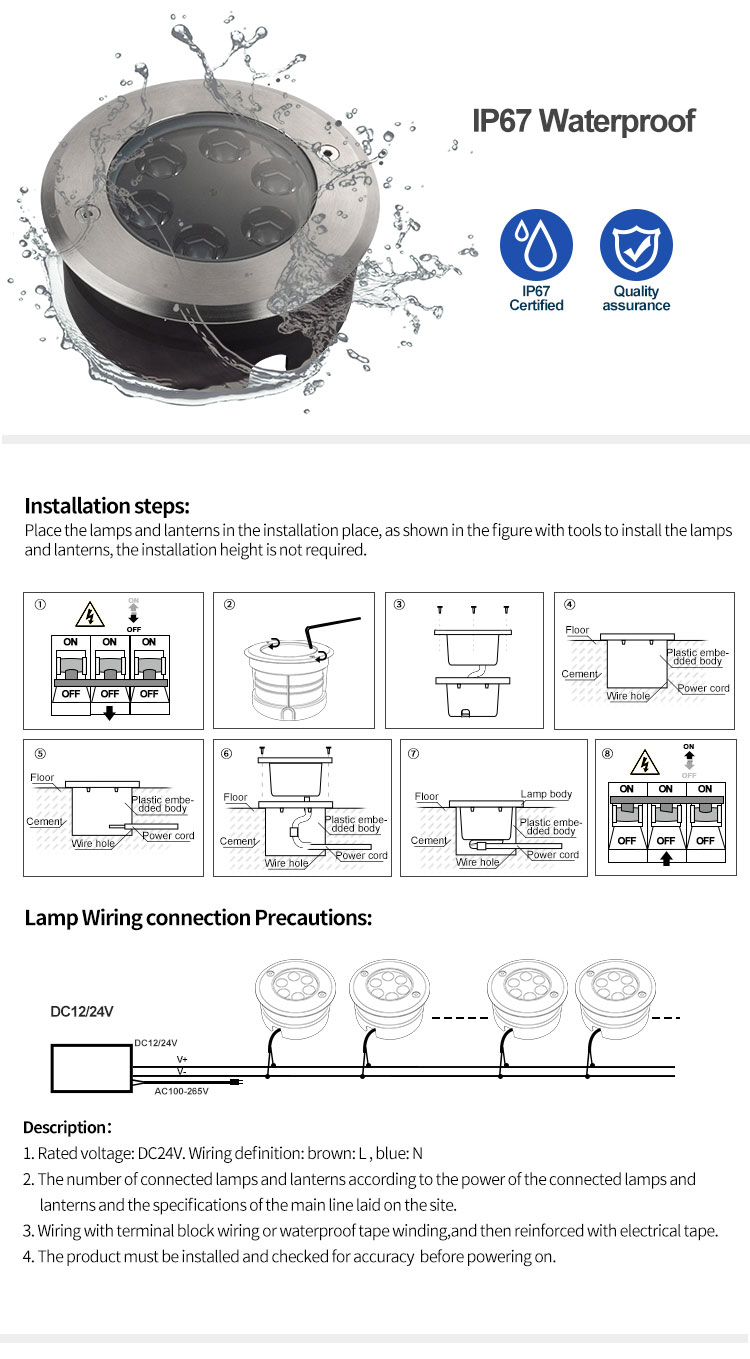

Eight-Step Installation & Low-Voltage Wiring

Installation follows a simple eight-step guide: switch the circuit breaker off, secure the embedded sleeve, fix the three screws, thread the power cord through the wire hole, lower the lamp body into the plastic embedded body, complete the flush mount, and switch the breaker back on. The system uses low-voltage DC12/24V wiring with an AC100-265V input driver; connect fixtures in parallel with brown to L and blue to N, use terminal blocks or waterproof tape reinforced with electrical tape, and always check the connection before powering on.

Typical Applications

Walkways & driveways - flush step light and path guidance.

Gardens & patios - ambient accent light in beds and borders.

Plazas & courtyards - heavy-load fixtures safe to walk over.

Building facades - vertical accent columns of light.

Tree uplighting - narrow 8-15 degree beams for trunks and canopies.

Wooden decks & tile - thin body fits shallow installation depths.

Related Products

Looking for more Synno underground light options? Explore the range:

LED Underground Light Collection - Browse all Synno underground lights.

Underground Light Collection - The full underground lighting range.

Square Underground Light Collection - All square underground light options.

Outdoor Underground Lamp for Pathway - A pathway ground light in the same series.

COB Ground Uplight Underground Light - A COB uplight for paths and gardens.

Landscape Uplighting Deck Lamp - A COB deck lamp for landscape uplighting.

Square Underground LED Light - An inground uplight with a square face.

Adjustable IP65 Underground Light - An adjustable underground uplight for outdoor use.

Waterproof IP67 Underground Light for Park - An IP67 park underground light.

18W Anti-Glare Underground Light - An anti-glare 18W driveway underground light.

Why Choose Synno

Direct Sale by Manufacturer

Buy straight from the factory for competitive pricing, consistent quality and a stable supply chain.

The Quality Is Reliable

Strictly selected aluminum and stainless steel for long life.

OEM / ODM Support

Custom chip brand, color, beam, CCT and packaging.

Intimate Service

Dedicated account management from sample confirmation through after-sales warranty.

FAQ & Ordering Information

What is the model number? SL-GR1H.

What power options are available? 3W, 6W, 9W, 12W and 18W.

What are the sizes and cutouts? 3W Φ100 (cutout Φ94) up to 18W Φ210 (cutout Φ202), all H55mm.

What beam angles are offered? 8, 15, 30, 45 and 60 degrees.

What colors are available? White, yellow, cold white, RGB, blue, red, warm white and green.

What is the waterproof rating? IP67, sealed with a waterproof nut and aluminum gland.

What voltage does it use? AC/DC 12-24V with AC100-265V input via driver.

Can the lamp beads be customized? Yes - CREE, OSRAM, EPISTAR, Bridgelux or LUMINUS with CCT options.

When sending your inquiry, please specify: model (SL-GR1H), power, color, beam angle, chip brand, voltage and quantity. Contact Synno today for a quotation.
