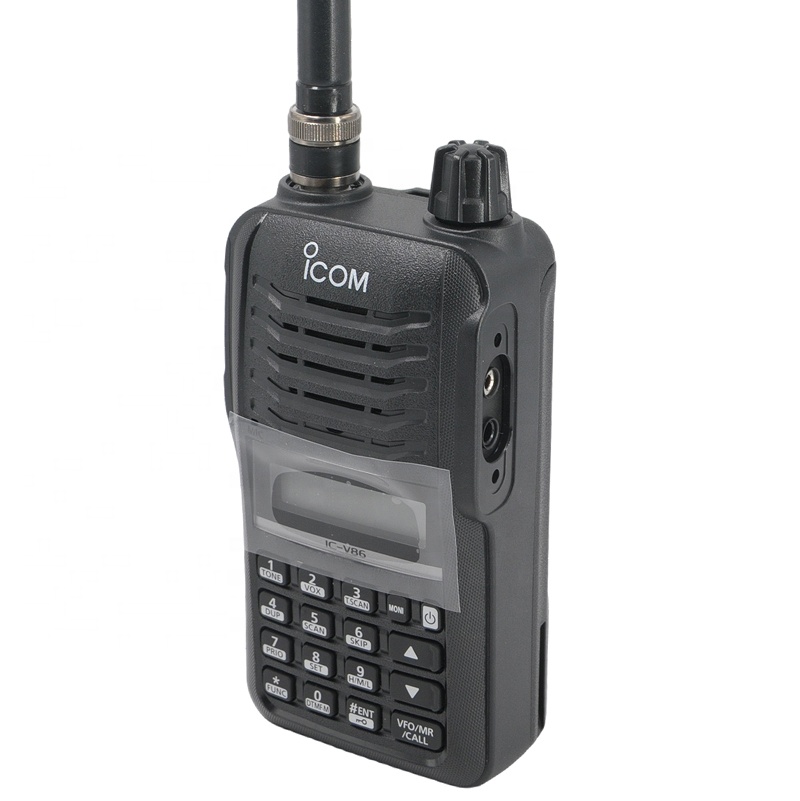

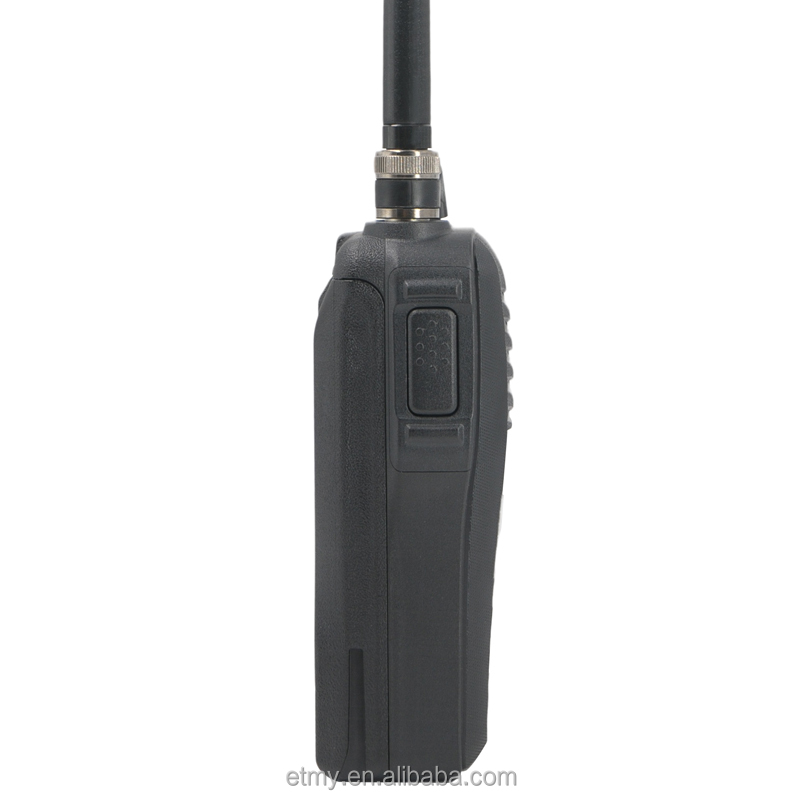

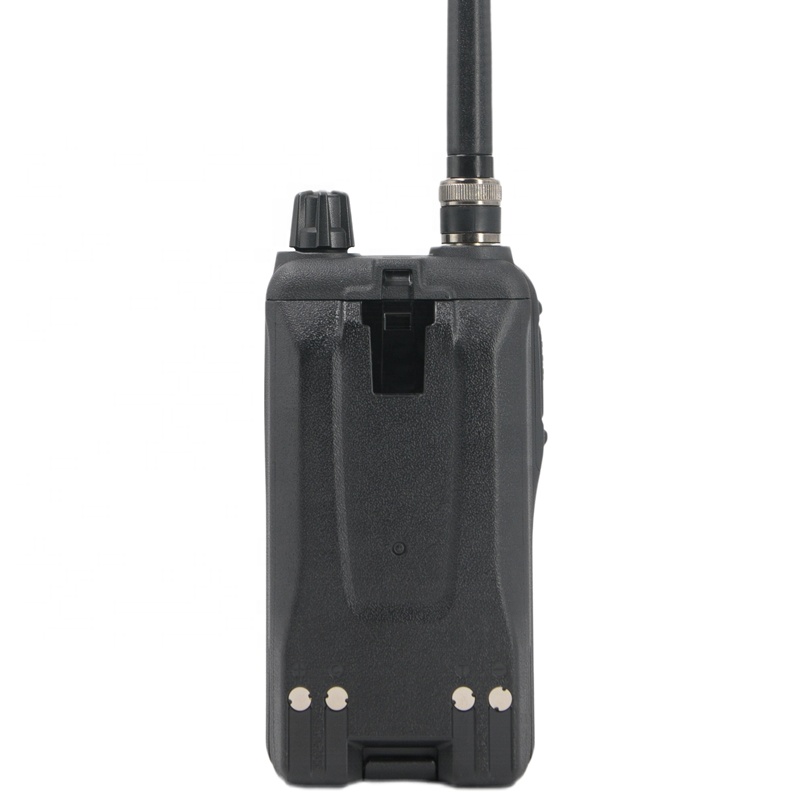

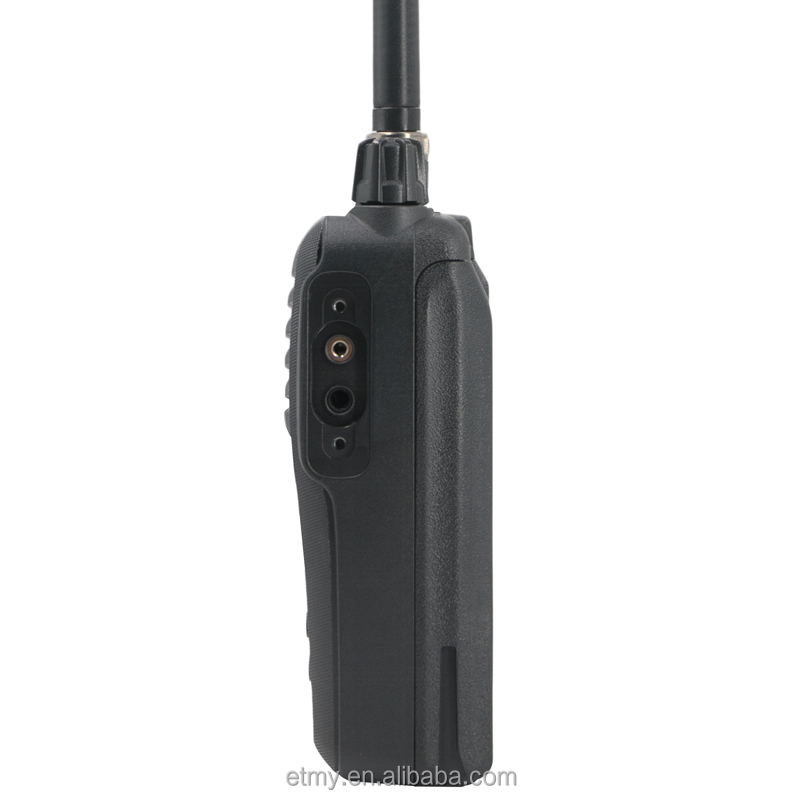

Original Icom IC-V86 7W HAM Vhf UHF Two Way Radio IP54 200 Channels Walkie Talkie1
8 month ago
original IC-V86 IP54 200 channels 7W output power icom vhf transceivers radio walkie talkie
Main features
7 W Output Power and 1500 mW Audio
Approximate, comparing the IC-V86 with the IC-V80. Communication range may differ depending on operating environment or weather conditions, etc. 7 W output power is only for the IC-V86.
Optional 1500 mW Speaker-Microphone, HM-222HLWP
The combination of the optional HM-222HLWP and the IC-V86/U86* also provides 1500 mW (typ.) loud audio from the attached speaker-microphone.
Dust-Protection, Water Resistance and a Tough Body
(IP54 and MIL-STD 810G)

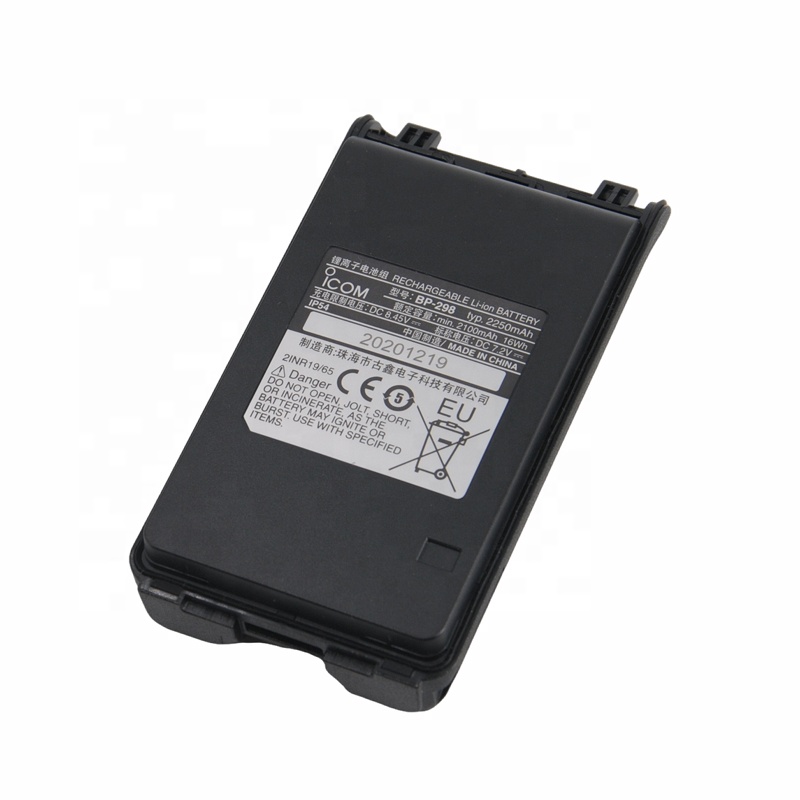

19 hours* of Long Lasting Battery Life
* EX Hi power with BP-298. TX : RX : standby = 5 : 5 : 90 (3 sec. : 3 sec. : 54 sec. ) (The Power Save function is set to "P–S.16")
Other Features
- Audio volume/VFO mode/Memory channel mode can be changed with the rotary knob

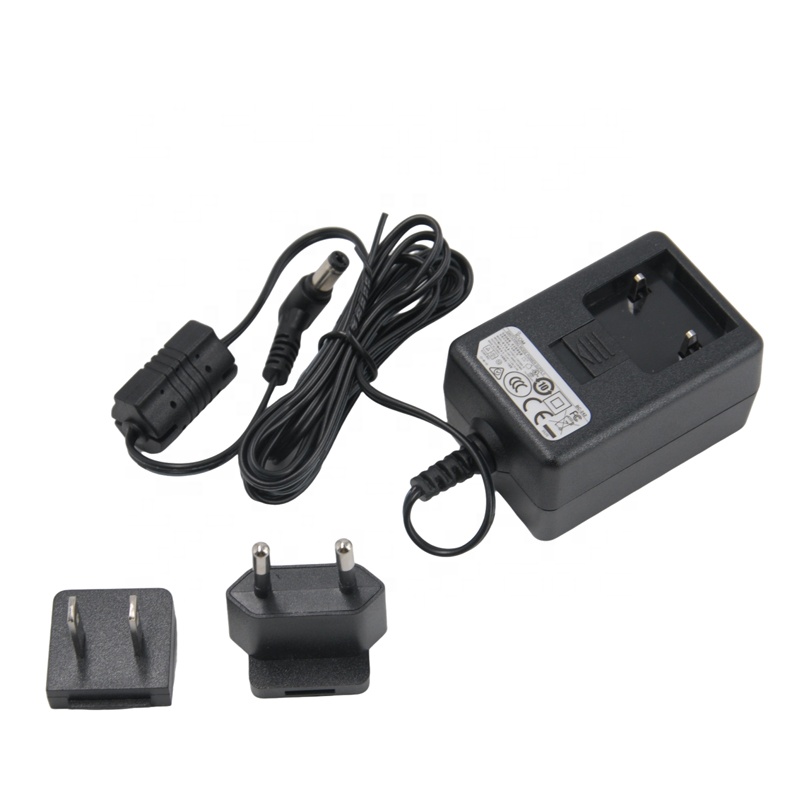

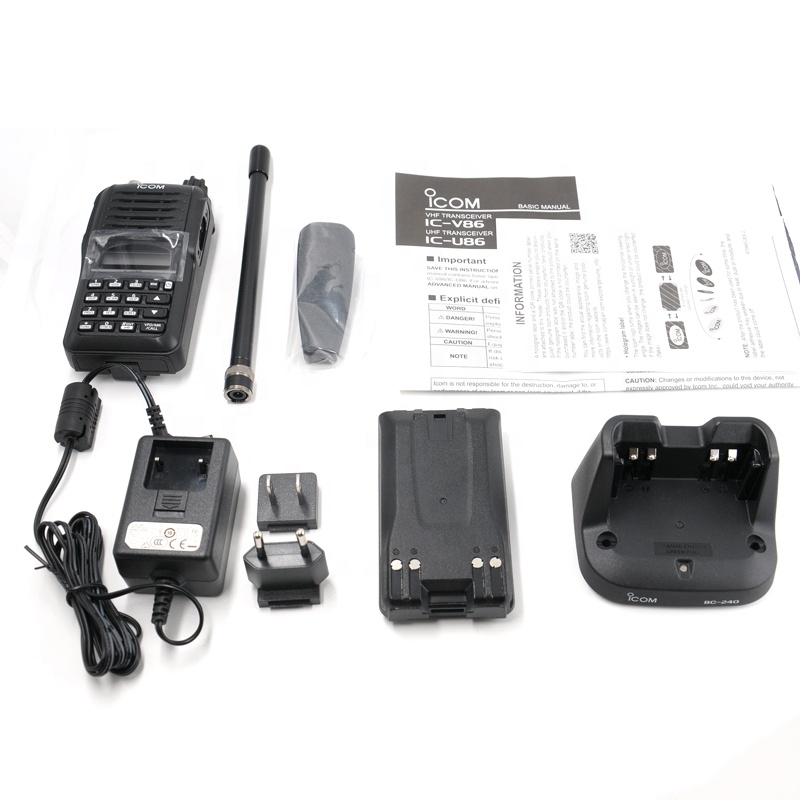

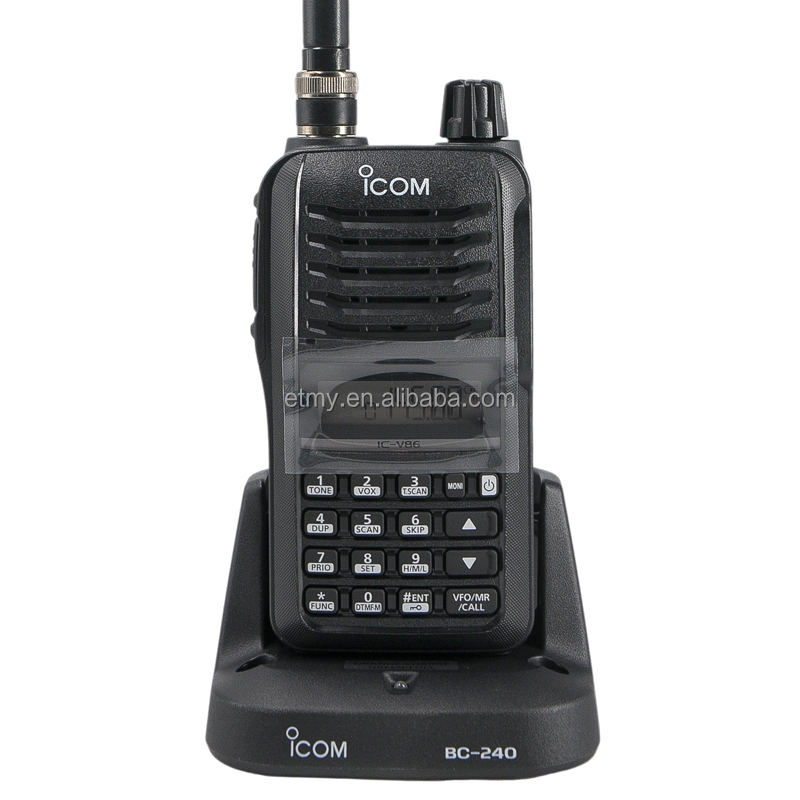

- Supplied BC-240, battery charger with a charging control function that prolongs the life of the battery
- Integrated VOX function
- 200 memory channels, 1 Call channel and 6 scan edges
- Built-in CTCSS and DTCS encoder/decoder
- Priority, program, memory, skip and tone scanning
Specification
| IC-V86 | IC-U86 | |
|
Frequency range (TX/RX guaranteed range) |
136–174 MHz (EX Hi power TX :144–160 MHz) |
EXP1 : 400–472 MHz (EX Hi power TX : 430–450 MHz) EXP2 : 330–400 MHz (EX Hi power TX : 335.4–380 MHz) |
| Type of emissions | F2D, F3E (FM, FM-N) | |
| Number of channels | 207 channels (200 memory channels, 1 call channel and 6 scan edges) | |
| Antenna impedance | 50Ω | |
| Power supply requirement | 7.5V DC | |
| Operating temperature range | –20 C to +60 C, –4 F to +140 F | |
| Frequency stability | ±2.5ppm (–20 C to +60 C, –4 °F to +140 °F) | |
|
Current drain TX(EX Hi/Hi/Mid/Low) RX(Max. audio) |
1.6/1.4/1.0/0.5 A typical
450 mA typ. (INT SP), 200 mA typ. (EXT SP)
|
EXP1: 1.6/1.5/1.0/0.5 A typ. EXP2: 1.6/1.4/0.9/0.5 A typ.
450 mA typ. (INT SP), 200 mA typ. (EXT SP)
|
|
Dimensions (W×H×D) (Projections not included) |
58.6 × 112 × 30.5 mm, 2.3 × 4.4 × 1.2 in (with BP-298) |
|
| Weight (Approximate) |
300 g, 10.6 oz (with BP-298, FA-B57V) |
290 g, 10.2 oz (with BP-298, FA-B57U) |
