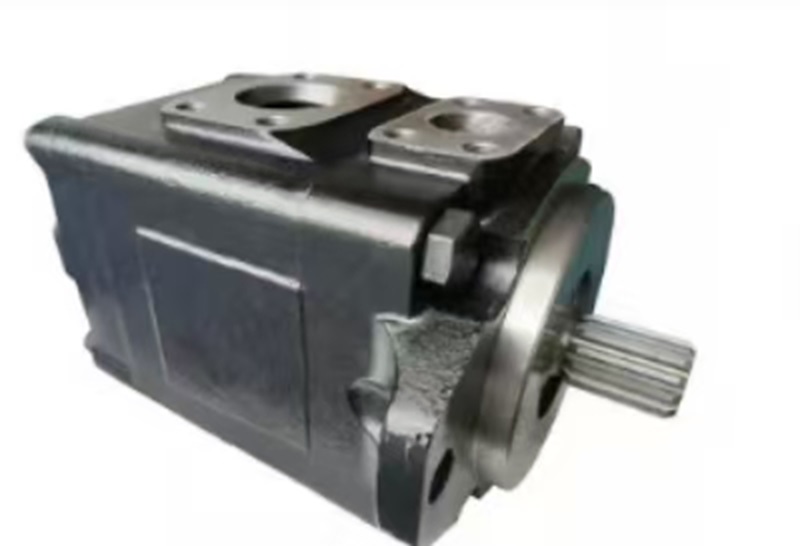

T6DR Series drive train vane pump
4 week ago
Product details
Drive train pumps allow the use of vane pump technology with a huge combination of other pumps, supported by SAE A, SAE B or SAE C rear drive.
Model No. T6DR T6ER T6CR
Maximum Pressure (psi) 3500 3500 4000
Maximum Pressure (bar) 240 240 275
Max. Displacement (in/rev) 2.90 - 11.65 8.07 - 16.40 0.66 - 6.10
Max. Displacement (cm/rev) 48 - 190 132 - 270 11 - 100
Maximum Speed rpm 2500 2200 2800
Mounting Standard SAE - C SAE - C SAE - B
Parker T6ERY-045-XR03-C42-A1-M249828- Vane pump
Vane pump Series T6ERY
Technical Details
- Version: Single pump
- Cam ring for P1: 045 : Delivery at 0 bar & 1500 r.p.m.: 213,6 l/min
- Volumetric displacement: 142,4 cm³/rev.
- Type of shaft: X =
- Direction of rotation (shaft end view): Clockwise
- Porting combination: 03
- Design letter: A
- Seal class: 1 = S1 BUNA N
- Weight: 42,5 kg
Technical Analysis of T6DR Series Drive Train Vane Pump
I. Key Product Features
1. Modular Design Architecture
• The T6DR series is part of Denison's T6 vane pump family, utilizing C/D/E housing specifications. By combining pump elements with varying displacements (e.g., T6D series displacement range of 48-158 ml/rev), it forms a comprehensive product line covering 10-227 ml/rev.
• Example model T6DR-031-1R00-B10-A1 demonstrates its standardized nomenclature, facilitating rapid selection based on user requirements.
2. Extreme Performance Parameters
• Pressure Capability: Rated operating pressure up to 275 bar (280 bar for certain models), reducing installation costs through minimized hydraulic component dimensions.
• Efficiency Performance: Achieves 94% volumetric and mechanical efficiency, enabling operation as low as 600 rpm under full pressure (400 rpm for mobile applications).
• Operational Adaptability: Supports -30°C cold starts (2000 cSt viscosity) without stall risks, with pressure pulsation controlled within ±2 bar.
3. Silent Operation & Contamination Resistance
• Employs 12-vane configuration and dual-lip vane design, reducing flow pulsation by 60% and noise levels by 5-8 dB(A) compared to competitors.
• Contamination resistance certified to ISO 4406 19/16/13 cleanliness, extending vane life to over 8000 hours.
4. Installation Flexibility
• Offers SAE J744a/ISO 3019-1 flange interfaces with support for parallel/spline drive shafts.
• Dual-pump configurations allow 32 installation combinations, while triple-pump options reach 128 combinations, with 4-way adjustable port orientations.
II. Technical Specifications
【表格】
Category Specifications Typical Applications
Pressure Range 240-280 bar (continuous operating pressure) Injection molding machine clamp systems, marine steering
Displacement Range 100-269 ml/rev (T6DR series) Crane luffing mechanisms, press boost circuits
Speed Range 600-2800 rpm (industrial)400-2800 rpm (mobile) Refuse truck hydraulic lifts, tractor attachments
Viscosity Adaptation 10-860 cSt (industrial)10-2000 cSt (mobile) Arctic construction equipment, high-viscosity media transfer
III. Application Coverage
1. Industrial Manufacturing
• Injection Molding: Provides high-pressure clamp force with ≤50 ms response time.
• Presses: Delivers 72 gpm total flow when paired with T6E series, maintaining pressure stability within ±1.5 bar.
2. Construction Equipment
• Cranes: Dual-pump parallel operation achieves 300 L/min total flow with ±0.5° luffing synchronization accuracy.
• Refuse Trucks: Enables full-load lifting within 3 seconds at -20°C, reducing energy consumption by 18%.
3. Agricultural & Mobile Equipment
• Tractors: Direct PTO connection via T-type drive shaft (540-1000 rpm), improving hydraulic output efficiency by 22%.
• Combines: Operates continuously for 1000 hours in 200 mg/m³ dust environments without failure.
IV. Competitive Advantages
1. Lifecycle Cost Efficiency
• 12% higher energy efficiency than competitors, yielding annual energy savings of ~8000 kWh per unit (5000 operating hours).
• Modular design reduces maintenance time by 60%, with pump element replacement without pipeline disassembly.
2. Customized Solutions
• 3D selection software generates pump-motor-valve matching schemes based on input parameters.
• Special coatings (e.g., nickel-phosphorus) for marine corrosion resistance, passing 1000-hour salt spray tests.
3. Industry Certifications
• ABS, DNV, CCS class approvals with ISO 8846 explosion-proof compliance.
• Food-grade models certified to NSF H1 for direct contact with edible oils.
V. Typical Application Cases
• Case 1: Energy-Saving Retrofit for Injection Molding
Replacing a gear pump with T6DR-158 reduced clamp pressure pulsation from ±5 bar to ±1.2 bar, shortening cycle time by 0.3 seconds and saving 150,000 kWh annually.
• Case 2: Arctic Research Vessel Hydraulic System
Operating at -40°C with T6DR-269 and低温 hydraulic oil achieved ≤0.8-second steering response with pressure stability优于±1.5 bar.
VI. Selection & Maintenance Guidelines
1. Key Selection Steps
• Calculate required flow: Q(L/min) = Displacement(ml/rev) × Speed(rpm)/1000 × Volumetric Efficiency
• Verify power matching: P(kW) = Pressure(bar) × Flow(L/min)/600
2. Maintenance Recommendations
• Change hydraulic oil after initial 50 hours, then every 2000 hours with oil cleanliness checks.
• Replace pump elements when vane wear exceeds 0.1 mm, with comprehensive inspections every 5000 hours.
