VNA Racking: Very Narrow Aisle Racking

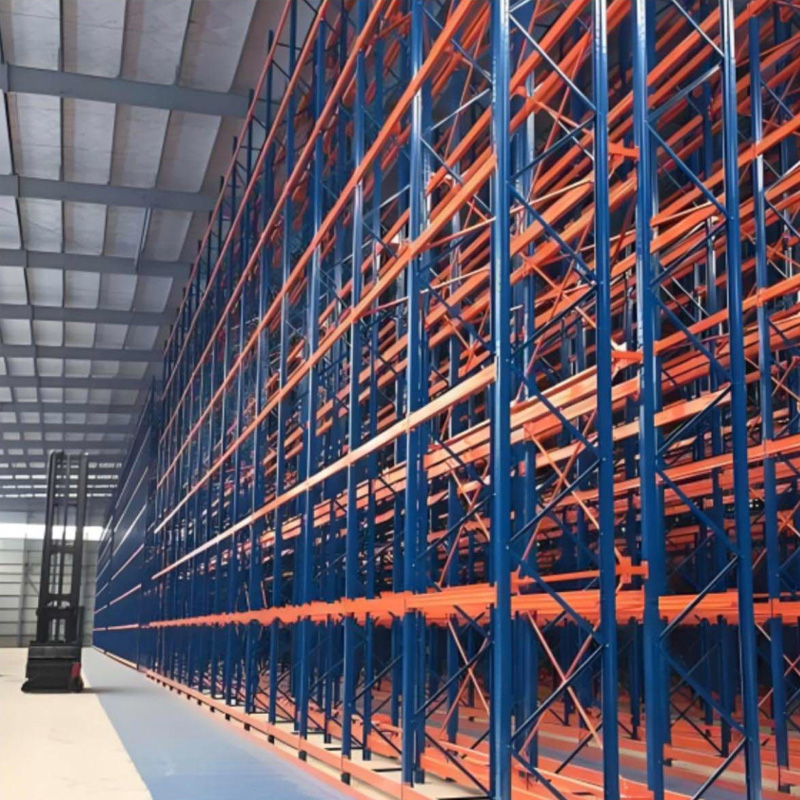

Very narrow aisle pallet racking suits warehouses with frequent movement of goods and high picking requirements. It provides fast storage efficiency.

Narrow Aisle Racking is a highly efficient, dense storage solution. Its main structure is a beam-type racking system, characterized by much narrower aisles than regular beam racking, typically around 1600 mm- 2000 mm, with narrower aisle widths and greater storage heights. This racking system requires special "tri-directional stacker forklift" guide rails installed on the ground, with rails typically made of unequal angle steel. Due to its relatively narrow forklift transport aisles, it is named narrow aisle or narrow channel racking.

The Narrow Aisle Racking System inherits all the advantages of beam-type racking systems. At the same time, by reducing aisle width, the very narrow aisle pallet racking can accommodate more goods in the same warehouse area. This design enables high-density storage needs, and all materials stored in the racking system have 100% selectivity, with forklifts able to access any pallet at any time.

To ensure the durability of our very narrow aisle racking, we select high-quality raw material suppliers and maintain long-term cooperation with major steel manufacturers. Our quality has remained consistent for ten years, with stronger load-bearing capacity and longer service life.

We have rich experience in warehouse racking production, focusing on Narrow Aisle Racking manufacturing with strong production capabilities. Very narrow aisle pallet racking has extremely strict requirements for structural strength and tolerance. We have a professional Narrow Aisle Racking solution customization team that conducts on-site warehouse inspections to create tailored logistics storage solutions for you, providing one-on-one 3D/CAD design drawings.

We also have standardized quality inspection processes, with strict quality checks at each production step and secure packaging for delivery and transportation to ensure the quality of Narrow Aisle Racking.

Paired with TOYOTA stand-up three-way electric forklift

-Can handle cold storage operations as low as -35 degrees

-Can provide cab specifications to improve comfort and insulation, extending actual warehouse operation time

-Maximum lifting height of up to 7500mm, achieving longitudinal high-density storage
