UNRA11 Series High Frequency Online UPS: Reliable Power Protection for Your Critical Systems
The UNRA11 Series High Frequency Online UPS is a state-of-the-art power protection solution designed to ensure the reliability and stability of your critical electrical systems. With its true online double-conversion technology and wide input voltage range, this UPS series offers exceptional performance and adaptability, making it the perfect choice for a variety of applications, from small offices to large data centers.
Key Features:
- Rack/Tower Convertible Design: The UNRA11 Series UPS can be easily installed in either rack or tower configurations, providing maximum flexibility to fit your specific space requirements.
- True Online Double-Conversion Technology: This advanced technology ensures that your connected devices always receive clean, stable power, protecting them from voltage fluctuations, surges, and other power anomalies.
- High Efficiency: With an AC to AC efficiency of up to 95%, the UNRA11 Series UPS not only saves energy but also reduces operating costs, making it an environmentally friendly and cost-effective solution.
- Wide Input Voltage Range (110Vac to 300Vac): This UPS can handle a wide range of input voltages, ensuring reliable operation even in areas with unstable power supplies.
- Smart RS232/USB Port with Monitoring Software: The built-in communication interfaces allow for easy remote monitoring and management of the UPS, enabling you to keep track of its status and performance in real-time.
- Advanced PFC Technology: The UNRA11 Series UPS features advanced Power Factor Correction (PFC) technology, with an input power factor of over 99%, ensuring high power quality and compatibility with various electrical systems.
- Hot-Swappable Battery: The hot-swappable battery design allows for easy battery replacement without interrupting power supply, minimizing downtime and ensuring continuous operation.
- ECO Mode Operation: The ECO mode further enhances energy efficiency, achieving up to 98% efficiency while maintaining reliable power protection.
- Generator Compatible and Battery Cold Start: These features make the UNRA11 Series UPS highly adaptable to different power sources and operational scenarios, ensuring uninterrupted power supply even in challenging conditions.

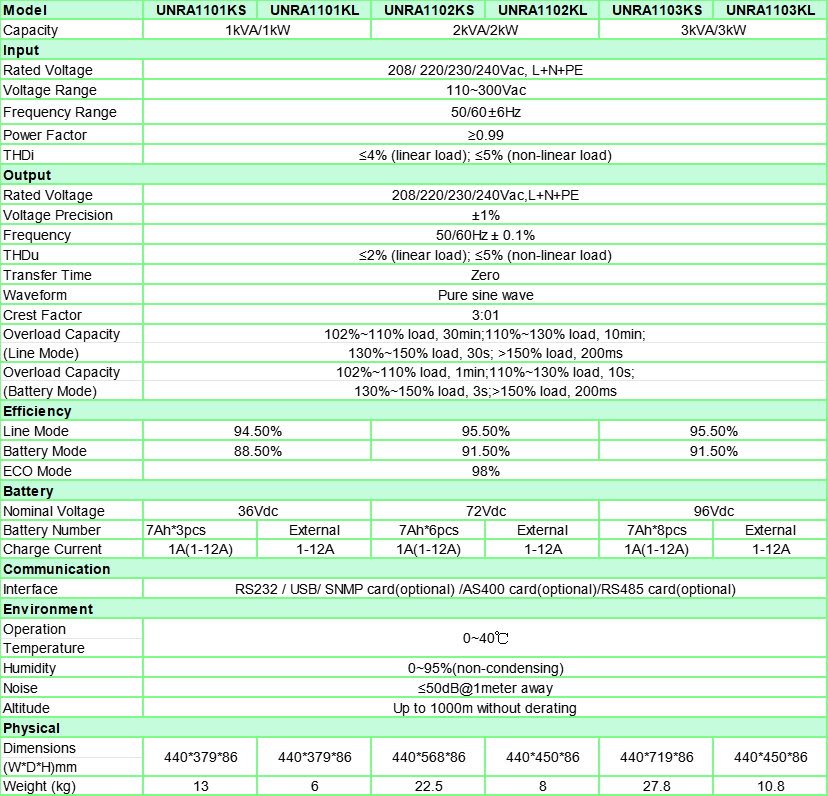

Models and Specifications:
The UNRA11 Series includes models with capacities ranging from 1kVA/1kW to 3kVA/3kW, catering to different power requirements. Each model is equipped with a wide input voltage range of 110Vac to 300Vac and a rated output voltage of 208/220/230/240Vac. The UPS also offers precise voltage control, with a precision of ±1%, and a pure sine wave output waveform, ensuring high-quality power delivery.
Battery and Communication:
The battery system of the UNRA11 Series UPS is designed for reliability and flexibility. The nominal battery voltages range from 36Vdc to 96Vdc, with external battery options available for extended runtime. The charge current can be adjusted from 1A to 12A, allowing for customized charging settings based on your needs.
In terms of communication, the UPS supports multiple interfaces, including RS232, USB, SNMP card (optional), AS400 card (optional), and RS485 card (optional), enabling seamless integration with various monitoring and management systems.
Environmental and Physical:
The UNRA11 Series UPS is designed to operate in a wide temperature range of 0~40℃ and a humidity range of 0~95% (non-condensing), ensuring reliable performance in different environmental conditions. The noise level is kept low at ≤50dB, minimizing disturbance in your working environment. The UPS can also operate at altitudes up to 1000m without derating, making it suitable for high-altitude locations.
Dimensions and Weight:
The compact design of the UNRA11 Series UPS ensures easy installation and space-saving. The dimensions range from 440*379*86mm to 440*719*86mm, and the weight varies from 6kg to 27.8kg, depending on the model.
Conclusion:
The UNRA11 Series High Frequency Online UPS is a comprehensive power protection solution that combines advanced technology, high efficiency, and flexible design. Whether you need to protect your office equipment, data center infrastructure, or other critical systems, the UNRA11 Series UPS is your reliable partner, ensuring continuous and stable power supply.

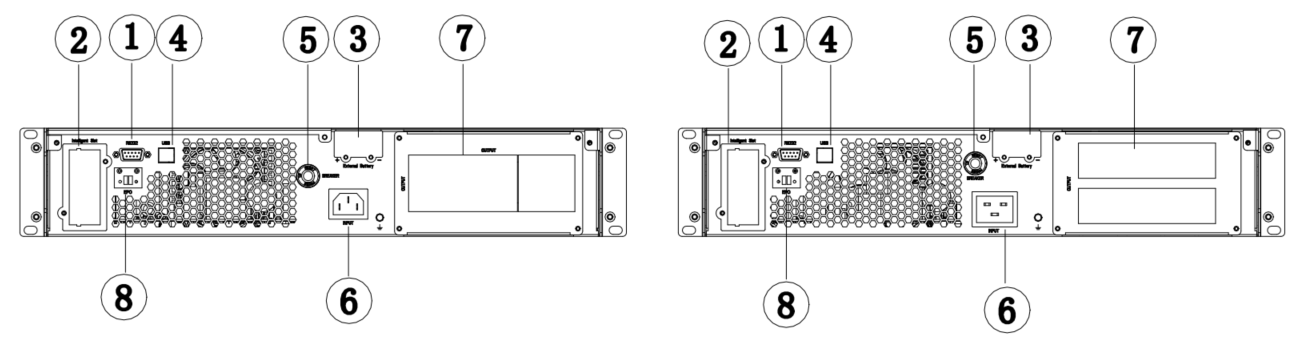

① RS232; ② Smart Slot; ③ External battery port ; ④ USB; ⑤ Input over current protection breaker; ⑥ AC input; ⑦ Output socket; ⑧ EPO
