Product details

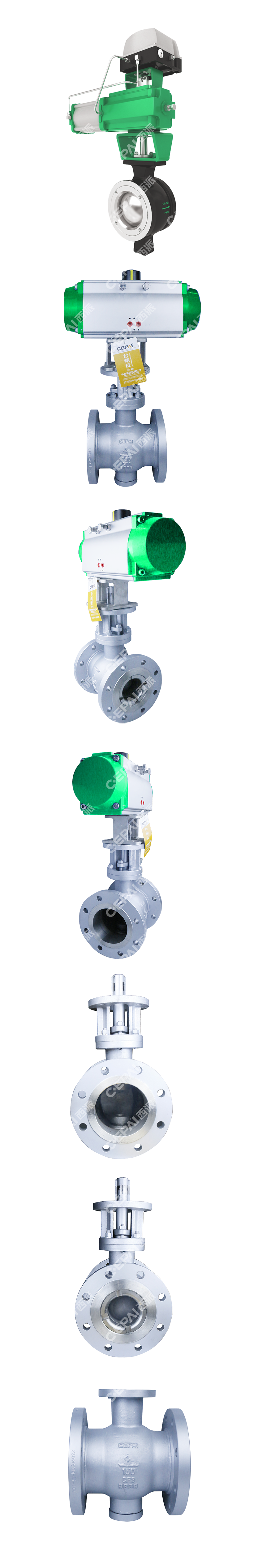

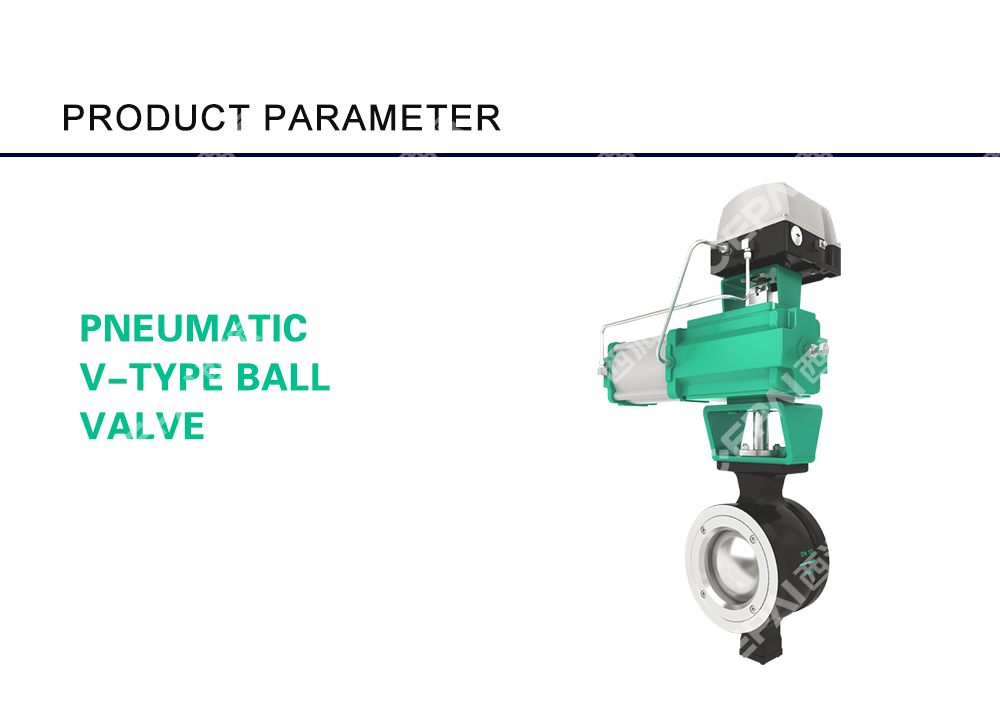

High quality pneumatic V-type ball valve specifications

Pneumatic V-type ball valve is a kind of control valve commonly used in pipeline system, which has the advantages of small fluid flow resistance, good sealing performance, easy operation and so on.

Specification introduction:

Size range: The size range of pneumatic V-type ball valves is usually from 1/2 inch to 24 inches, and the appropriate size can be selected according to actual needs.

Rated pressure: According to different working environments and use requirements, the rated pressure of pneumatic V-type ball valves is generally between 150 pounds/square inch (PN10) and 600 pounds/square inch (PN40).

Body material: The common body material is stainless steel, carbon steel, cast iron, etc., can be selected according to the characteristics of the medium and the working environment.

Sealing structure: The sealing structure of the pneumatic V-type ball valve usually uses PTFE sealing rings or metal sealing rings to ensure good sealing performance of the valve.

Our company's main products are also Gate Valve, Welhead, Ball Valve, Flowmeter,Globe Valve.

VALVE BODY

Ball core form:	full-bore V-shaped
Nominal diameter:	DN15-450mm
Nominal pressure:	PN16, 40, 64; ANSI150, 300, 600
Connection type:	flange type. Clamp type
Valve body material:	WCB, WC6, WC9, LCB, CF8, CF8M, etc.
Filling:	PTFE, flexible graphite

Valve Components

Valve core form:	metal seal, soft seal
Flow characteristics:	equal percentage
Internal materials:	304+PTFE, 316+PTFE, 304, 316, 304L, 316L

Executive Agency

Model:	Piston actuator
Air supply pressure:	400~700kPa
Air source interface:	G1/8″, G1/4″, G3/8″, G1/2″
Ambient temperature:	-30～+70℃
Form of action:	single action, double action

Performance

Leakage: Metal Seal:	Meets ANSI B16.104 Level IV
Non-metallic valve seat:	Meets ANSI B16.104 Level VI
Accessories (configured upon request)	Positioner, filter pressure reducing valve, handwheel mechanism, limit switch, solenoid valve, valve position transmitter, pneumatic accelerator, locking valve, etc.
