Product details

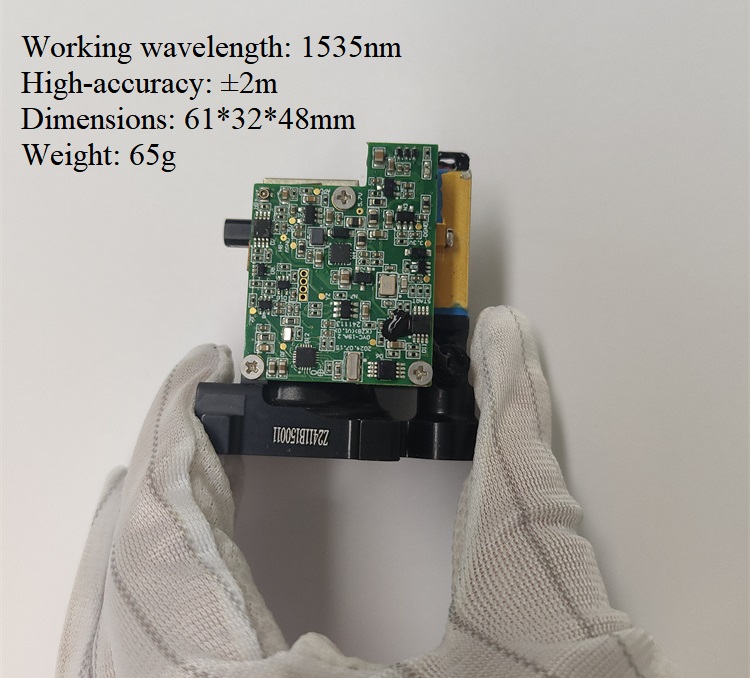

5000m Ir Infrared Sensor Distance Measurement

Hi, I am looking for a ir distance sensor module to reach 5000 meters with 2m accuracy that works outdoor in sunny days. I think 1535nm would be ideal. What types of laser distance sensors are available to suit our design? If that's your project requirements, yeah, we have the similar series laser to measure module, welcome to discuss with us.

Technical Parameters:

1. Operating wavelength: 1535nm ± 10nm

2. Eye safety level: Class Ⅰ

3. Transmitting aperture: Φ10.5mm

4. Receiving aperture: Φ26mm

5. Baud rate: 38400bps (default) / 9600bps / 57600bps / 115200bps

6. Ranging capability:

≥ 7700m (typical large target reference value)

≥ 5200m (2.3m × 4.6m standard target plate or equivalent target)

≥ 3000 (people)

7. Ranging blind zone: ≤ 50m

8. Ranging accuracy: ±2m (±1m optional)

9. Accuracy rate: ≥ 98%

10. False alarm rate: ≤ 2%

11. Ranging frequency: single shot, 1Hz, 5Hz

12. Functions: First and last target ranging function / distance gating function / self-check function / power-on and temperature collection reporting function / baud rate setting / serial port update program function / cumulative laser emission count function

Communication interface & Electrical

1. Electrical interface:

Connector socket: 530481010 (MOLEX right-angle 10PIN)

Connector plug: 151341006 (MOLEX / 600mm / 10PIN dual head)

2. Power supply voltage: 10V - 14V

3. Standby power consumption: ≤ 1.8W

4. Average power consumption: ≤ 2W

5. Peak power consumption: ≤ 4W

6. Electrical isolation: Power ground, communication ground and structure ground isolated

Physical characteristics Mechanical

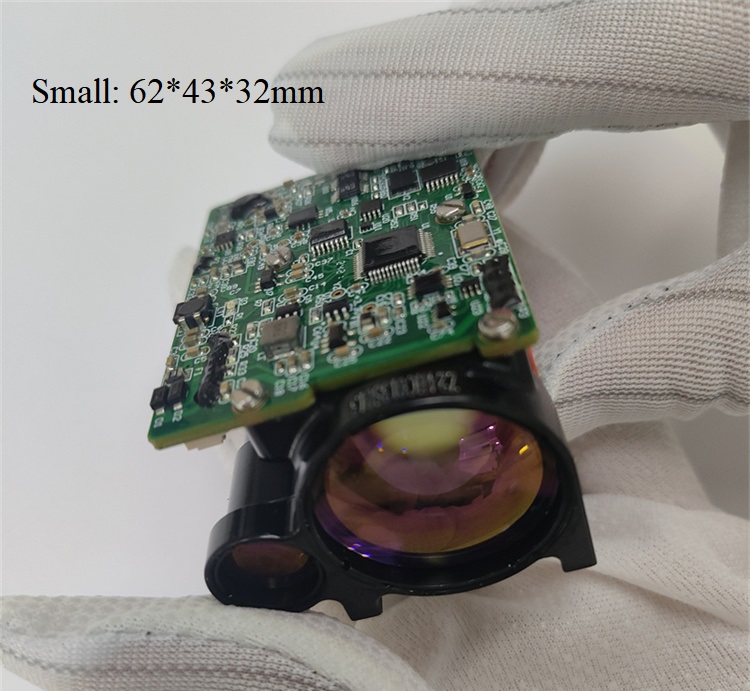

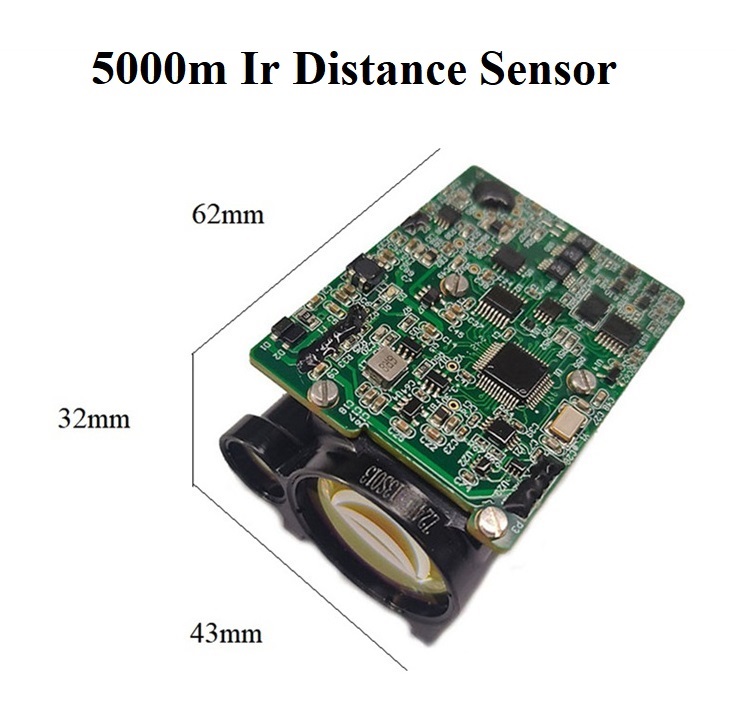

Dimensions: ≤ 62mm × 43mm × 32mm

Weight: ≤ 85g

Applicable environmental conditions

Operating temperature: -40℃ - 60℃ (military grade)

Storage temperature: -55℃ - 70℃ (military grade)

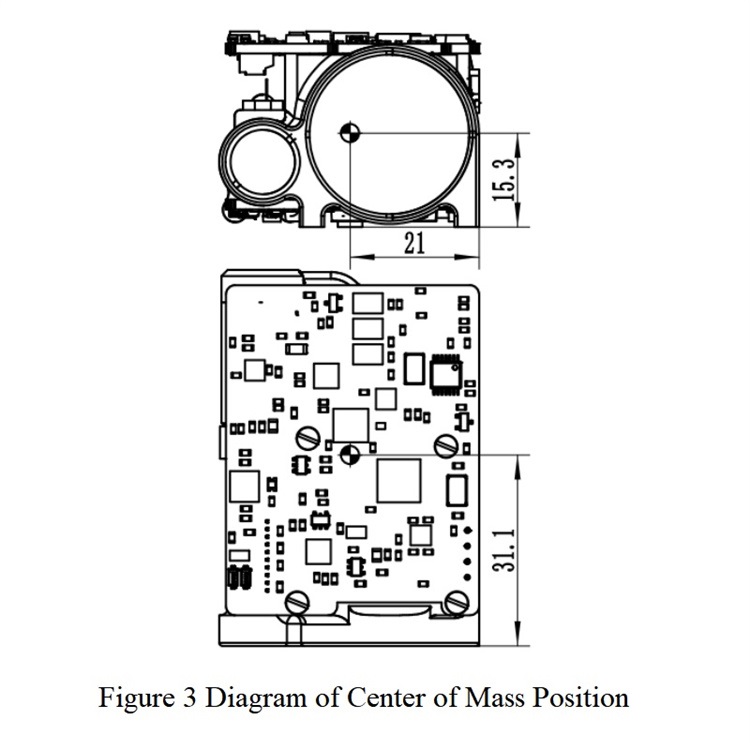

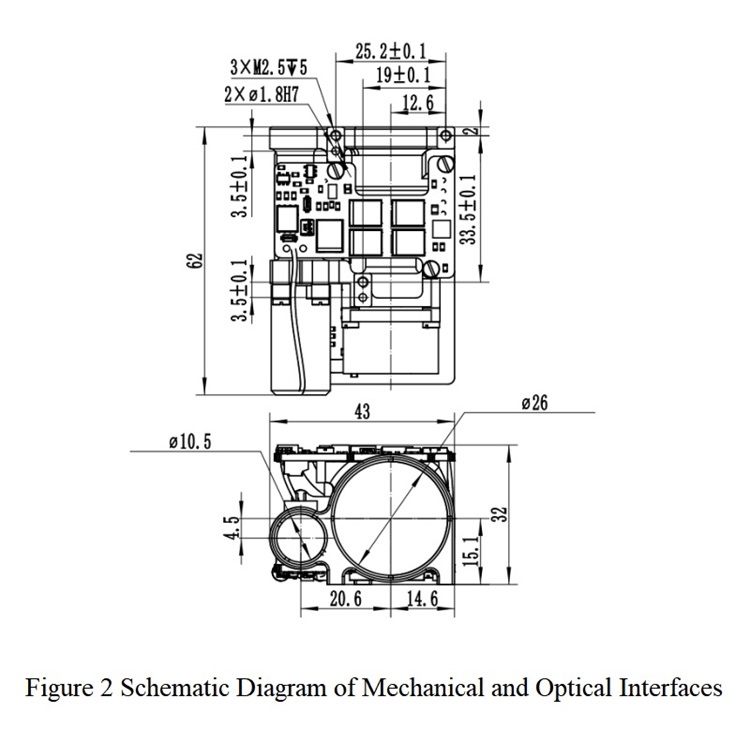

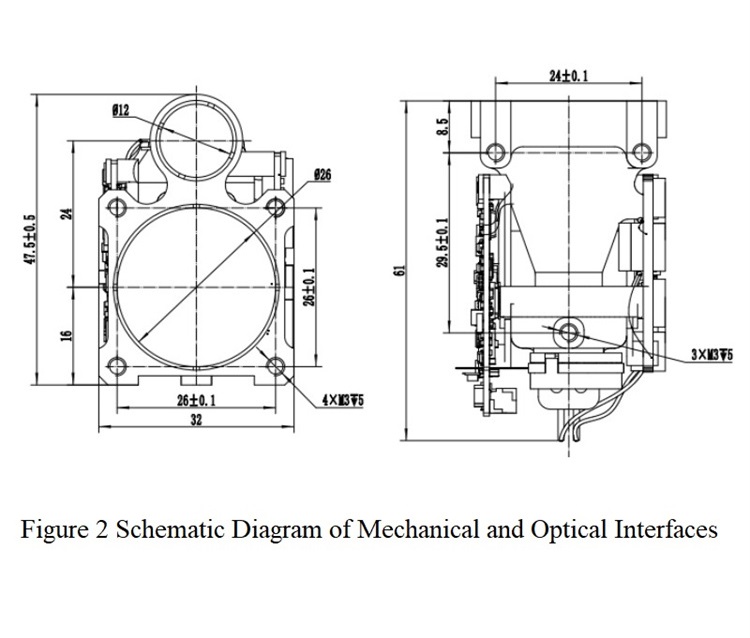

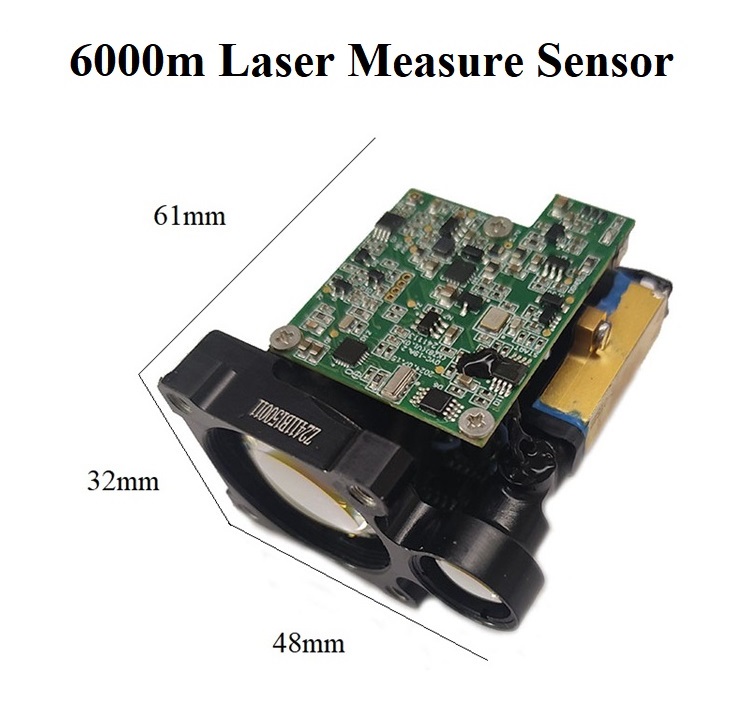

Machinical Dimensions

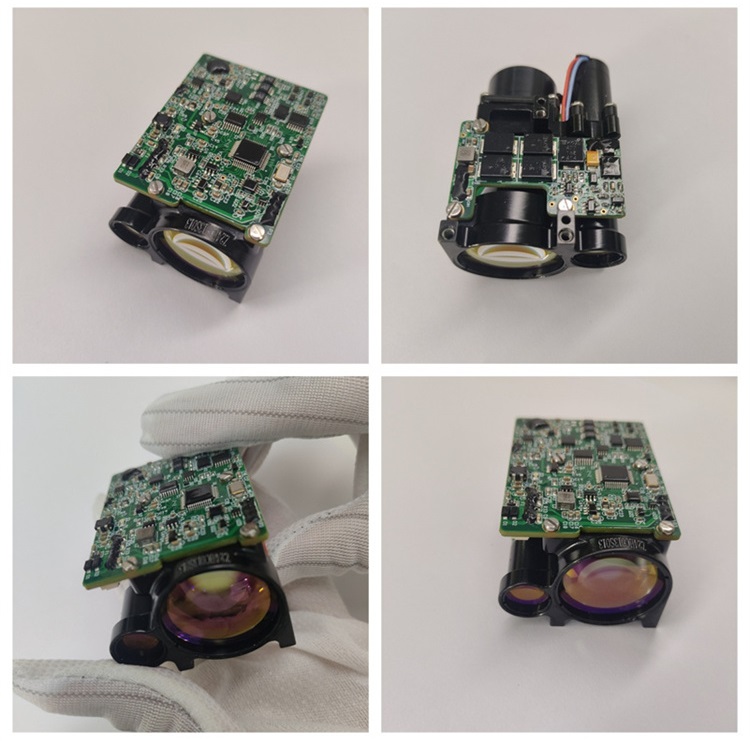

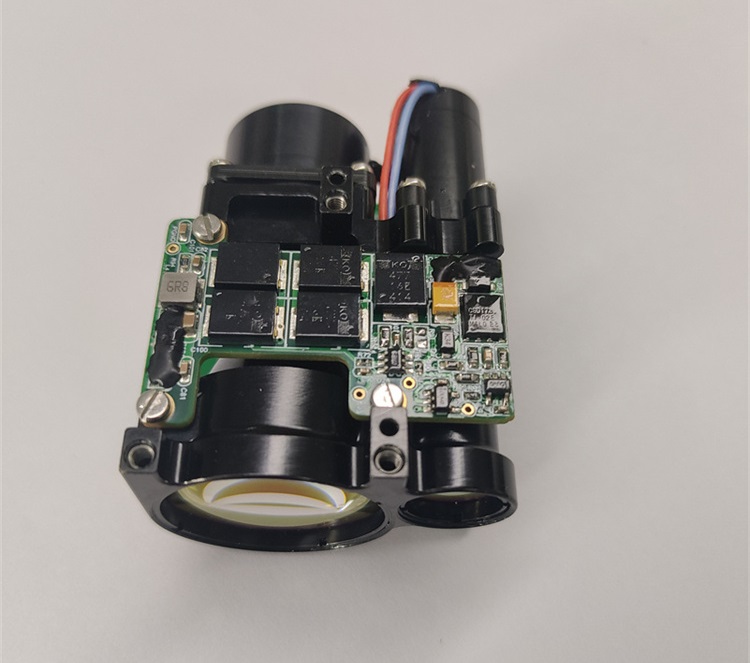

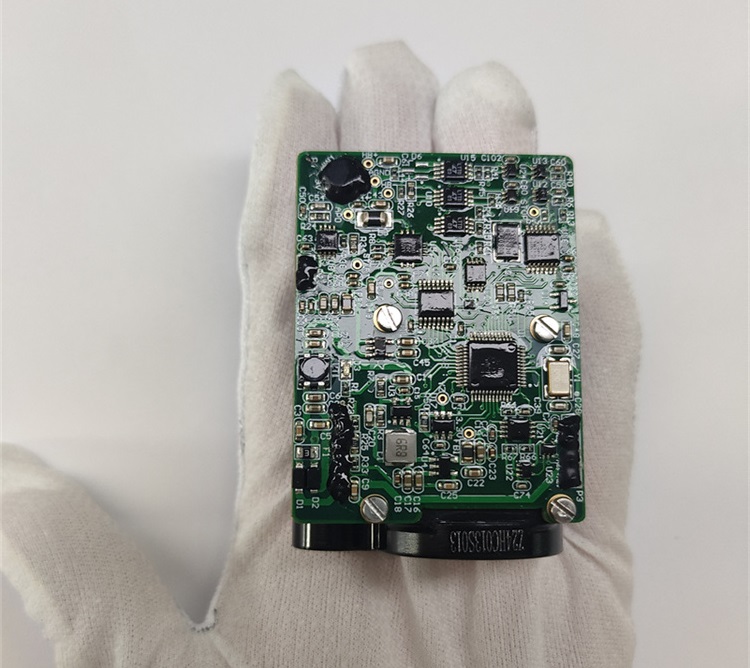

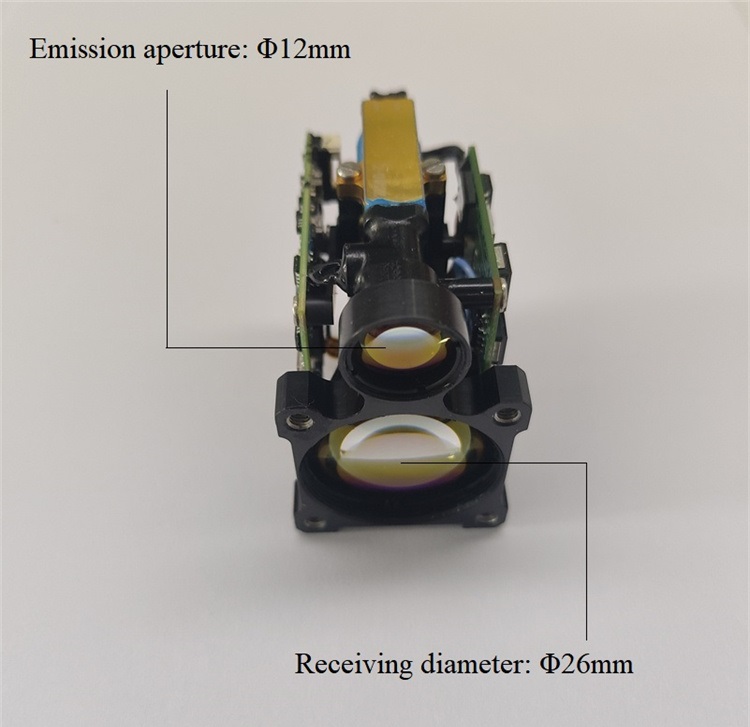

Front & Lens of Handy Ir Distance Sensor

5000m Ir Infrared Sensor Distance Measurement

Applications

This Industrial Laser Range Sensor can be widely used in agricultural forestry, electricity/power inspection, safety supervision, urban management, security, fire protection, geological exploration etc.

long range laser distance sensor arduino

Packaging

long distance sensor arduino

Chengdu JRT Main Smart Devices: Industrial Laser Distance Sensors, Rangefinder Sensor , Tof LiDAR Sensors, Measuring Tool Instruments.
