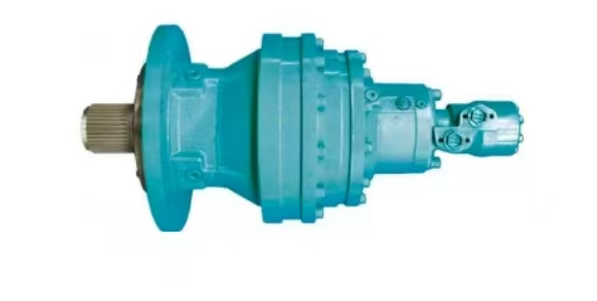

HZ1022 Planetary slewing drives

1. The input and output rotation directions of the reducer are the same. In addition to the gear ratios listed in the table, alternative gear ratios can be customized for mass-produced products.



2. The allowable output speed values (not specified in the catalog) may vary depending on actual operating conditions. For detailed information, please consult our technical staff.



H Series Planetary Slewing Reducer Assembly



The H series planetary slewing reducer assembly is independently developed by our company, integrating a hydraulic motor, hydraulic normally-closed multi-disc brake, planetary reducer, and other components. It can be equipped with different flow distributors according to various operating requirements, with integrated hydraulic valves such as counterbalance valves, overload relief valves, and high-pressure shuttle valves. This series of reducers features compact structure, small size, light weight, and aesthetically pleasing appearance, while offering high safety, excellent low-speed stability, low noise, and reliable operation. The product is primarily used in equipment such as truck-mounted cranes, mobile cranes, concrete pump trucks, shotcrete machines, and roadheaders. It is widely adopted by key domestic enterprises including XCMG Group and has been exported to Russia, Australia, India, and other countries.



When users require exceeding rated power applications for various models, please contact our company. After special treatment of the materials and surfaces of the planetary reducer's moving components, both performance and transmission power can be significantly enhanced, though manufacturing costs and pricing will increase accordingly.



The corresponding transmission units can be adapted to different operating conditions by incorporating various output gear types. For customized slewing drives, please contact our company directly.
