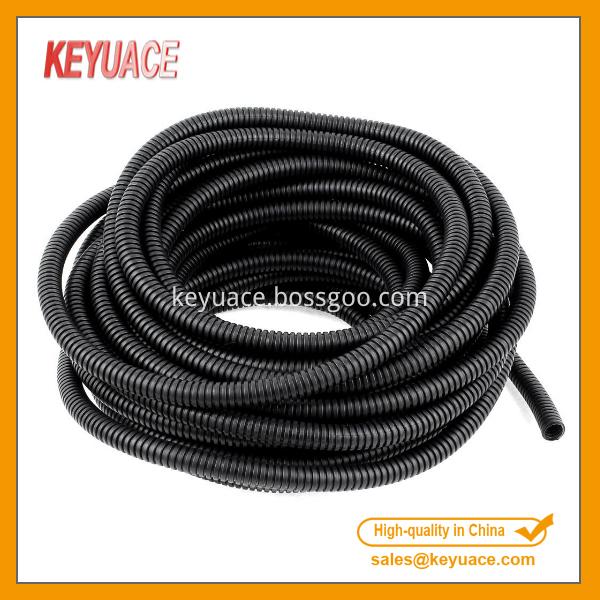

PA/PP/PE Corrugated Tube
3 week ago

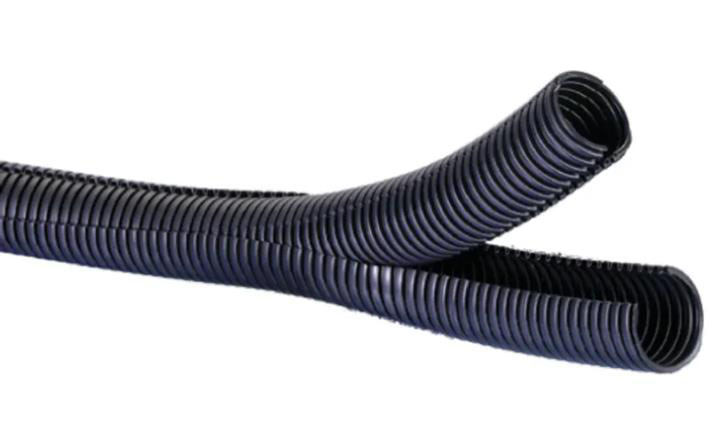

Open -Corrugated Tube / Open - Wave Grain Tube /
Split Corrugated tube / Split Bellows
Open-Corrugated Tube have PE, PA, PP extrusion molding, Three kinds of material used to protect cable, wire cut, split, mechanical damage, good product flexibility, bending resistance and friction, acid resistance and other properties, Bellows Good protective for wire, cable, wire,
Corrugated Tube /Wave Grain Tube can be customized flame retardant, open type wave tube.
Bellows application:

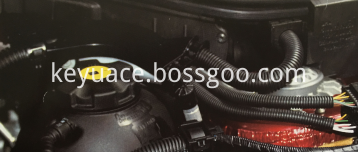

Split Corrugated tube is suitable for the machinery and equipment, automation equipment, automation control, bus, train, electrical switchgear, etc.
Technical parameters:
Material quality: PE, PA, PP
Working temperature: PE: - 40 ℃, + 90 ℃
PA: - 40 ℃, + 130 ℃
PP: - 30 ℃ - + 120 ℃

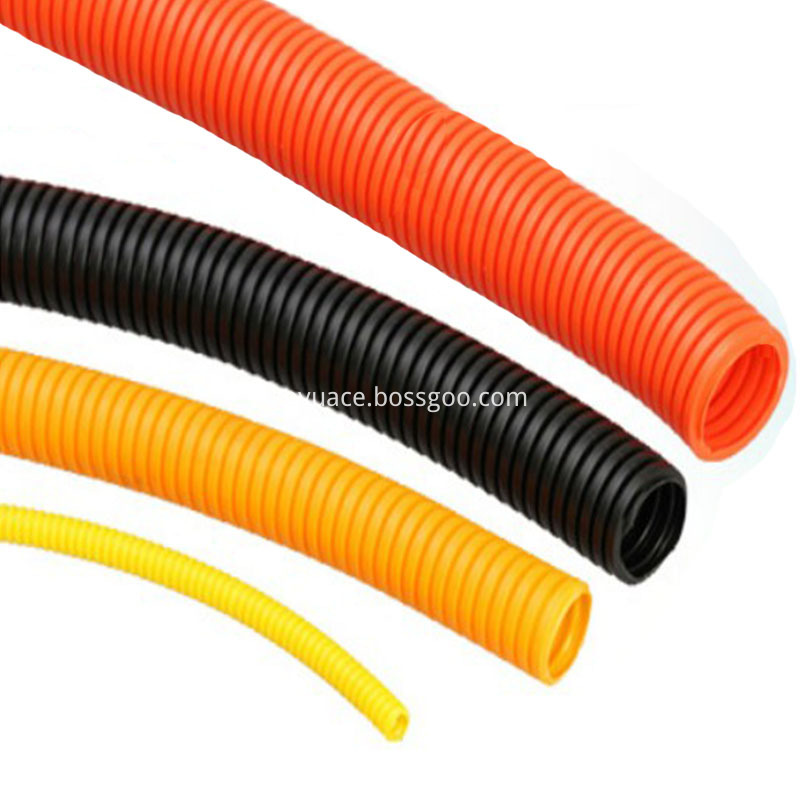

Standard color: Black, other color can be customized
Certification: ROHS
Cutting tools, scissors
Other features: high wear resistance, acid resistance, resistance to solvents and gasoline
Specifications:
| PE Bellows | PA Bellows | PP Bellows | ID*ED | FLODING RADIUS | PACKING(L) |
| WAG-PE-7 | WAG-PA-7 | WAG-PP-7 | 4.5*7.0 | 5 | 200M/ROLL |
| WAG-PE-8.5 | WAG-PA-8.5 | WAG-PP-8.5 | 5.5*8.5 | 8 | 100M/ROLL |
| WAG-PE-10 | WAG-PA-10 | WAG-PP-10 | 7.0*10.0 | 10 | 100M/ROLL |
| WAG-PE-12 | WAG-PA-12 | WAG-PP-12 | 8.5*11.5 | 15 | 100M/ROLL |
| WAG-PE-13 | WAG-PA-13 | WAG-PP-13 | 10.0*13.0 | 20 | 100M/ROLL |
| WAG-PE-15.8 | WAG-PA-15.8 | WAG-PP-15.8 | 12.0*15.8 | 30 | 100M/ROLL |
| WAG-PE-18.5 | WAG-PA-18.5 | WAG-PP-18.5 | 14.3*18.5 | 40 | 100M/ROLL |
| WAG-PE-21.2 | WAG-PA-21.2 | WAG-PP-21.2 | 17.0*21.2 | 45 | 100M/ROLL |
| WAG-PE-25 | WAG-PA-25 | WAG-PP-25 | 21.0*25.0 | 50 | 100M/ROLL |
| WAG-PE-28.5 | WAG-PA-28.5 | WAG-PP-28.5 | 23.0*28.5 | 55 | 50M/ROLL |
| WAG-PE-34.5 | WAG-PA-34.5 | WAG-PP-34.5 | 29.0*34.5 | 60 | 50M/ROLL |
| WAG-PE-42.5 | WAG-PA-42.5 | WAG-PP-42.5 | 36.0*42.5 | 70 | 25M/ROLL |
| WAG-PE-54.5 | WAG-PA-54.5 | WAG-PP-54.5 | 48.0*54.5 | 80 |
25M/ROLL |
