Utility Poles V Crossarm Brace Hot Dip Galvanized

2 week ago

0 0 

10 year

Product details

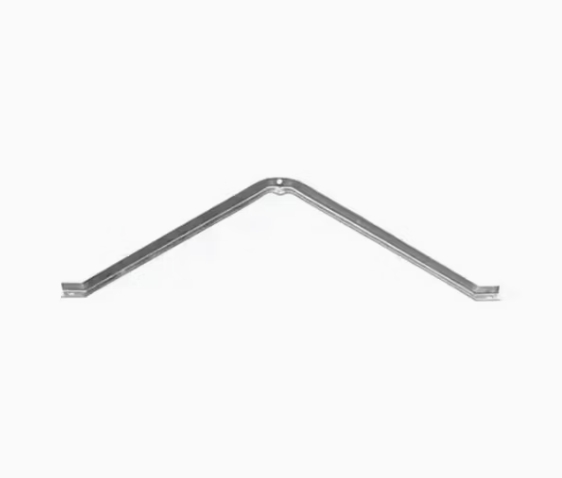

V Crossarm Brace

The V Crossarm Brace is a type of pole line hardware used to provide additional support to a wooden utility pole. It is designed to be installed at a 45-degree angle between the pole and the crossarm, forming a V shape. The brace is typically made of galvanized steel or aluminum and is available in various sizes to fit different pole and crossarm configurations.

V Crossarm Brace Features:

One piece brace is used to support heavy crossarms on utility poles.

Brace is attached to the underside of crossarms using 1/2" lag screws and is fastened to the pole using a 5/8" Machine Bolt.

Formed from AISI 1020 Steel.

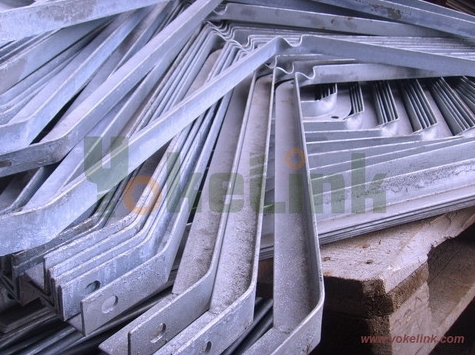

Hot dip galvanized to meet ASTM Specification F2329.

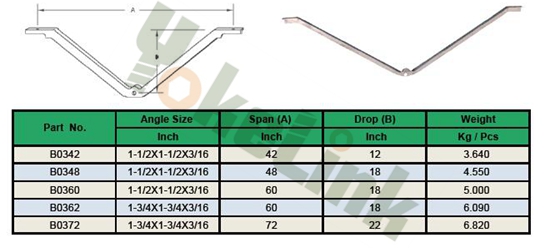

V Crossarm Brace Specification:

V Crossarm Brace Corrosion Resistance and Durability

High-quality materials: usually made of corrosion-resistant materials, such as galvanized steel, aluminum alloy or stainless steel, etc. These materials have good corrosion resistance and can be used for a long time in harsh environmental conditions such as humidity, acid and alkali. They are not easy to rust or corrode, which prolongs the service life of the bracket.

Surface treatment: In addition to the selection of high-quality materials, the V-shaped cross arm bracket will also undergo various surface treatment processes, such as hot-dip galvanizing, spraying anti-corrosion paint, etc., to further enhance its corrosion resistance, enable it to adapt to different working environments, and reduce the cost of maintenance and replacement.

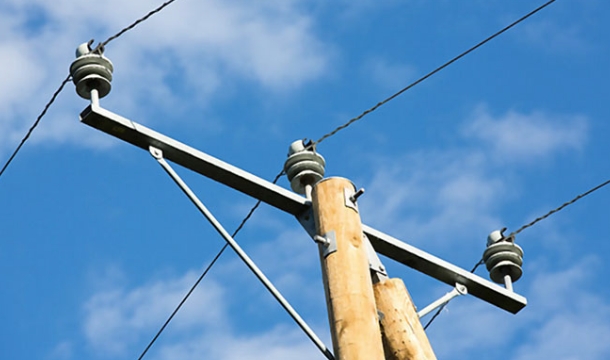

V Crossarm Brace Typical Application Scenarios

Scenario	Function	Specification example
10kV distribution network straight pole	Support three-phase conductors and maintain phase-to-phase distance	Horizontal arm length 1.5~2.5m, angle steel ∠63×6
Terminal pole / corner pole	Bear conductor tension to prevent the pole from tilting	Reinforced channel steel bracket, load ≥10kN
Coastal high humidity area	Corrosion-resistant aluminum alloy bracket, with wind deflection device	Surface anodizing treatment

Buy V Crossarm Brace From Yokelink

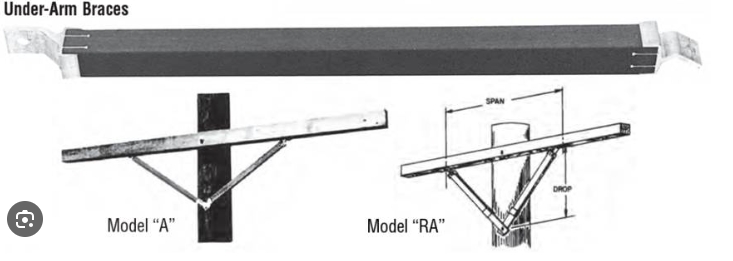

Pole and crossarm components offered by the yokelink brand includes braces, double-arming bolts, reinforcing plates and grid gains for crossarm support. Braces are offered in steel or Apitong wood and include V-type, side-arm and two-piece under arm and side mount styles.
