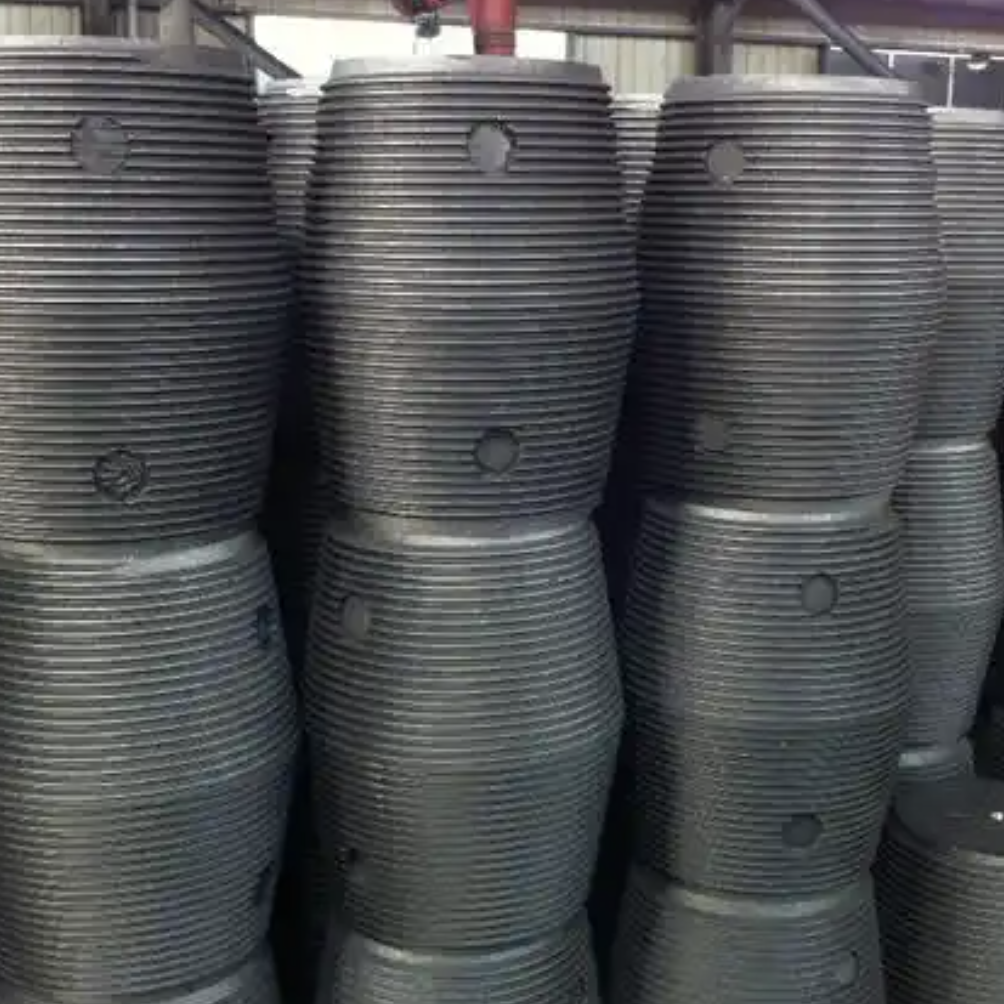

-graphite electrode nipple
2 month ago
Product details
In the field of electrode materials, high-power graphite electrodes are widely popular for their excellent electrical conductivity and high-temperature resistance. As an important component for connecting the electrode body, the selection and design of the thread parameters of the graphite electrode joint are of vital importance. Next, let's delve into the parameter issues of the high-power graphite electrode joint thread, and take the 800t4 graphite electrode as an example to interpret its specifications and related parameters in detail.
I. Basic Concepts of High-Power Graphite Electrode Joint Threads
First of all, let's take a look at what the thread of a graphite electrode joint is. In simple terms, it is a helical structure used to connect the graphite electrode body. By rotating the two electrodes, it ensures the stable conduction of current. The joint threads of high-power graphite electrodes, due to the need to withstand higher currents and temperatures, have more stringent requirements in design and manufacturing.
Ii. Key Parameters of the thread of High-power Graphite electrode joints
So, when designing and selecting the threads of high-power graphite electrode joints, what key parameters should we pay attention to?
1. Pitch: It refers to the distance between two adjacent threads. In high-power graphite electrode joints, a reasonable pitch design can ensure good electrical contact and mechanical strength.
2. Nominal Diameter: It refers to the maximum diameter of the thread and is an important factor affecting the strength and sealing performance of the threaded connection.
3. Thread types: Common thread types include ordinary threads, trapezoidal threads, etc. Different types of threads vary in load-bearing capacity and sealing performance.
Iii. Introduction to Specifications and Parameters of 800t4 Graphite Electrode
Next, we will take the 800t4 graphite electrode as an example to specifically explain its specifications and related parameters:
Diameter: The diameter of 800t4 graphite electrodes is usually a specific value, which is to ensure compatibility with other devices or connectors.
Length: The length varies depending on the application scenario, but there is always a standard range.
Resistivity: This is a key indicator for evaluating the electrical conductivity of graphite electrodes. 800t4 graphite electrodes typically have a relatively low resistivity to enhance the efficiency of current conduction.
Flexural strength: It indicates the ability of an electrode to not break easily when subjected to external forces. The 800t4 graphite electrode has a relatively high flexural strength to meet the requirements of high-temperature and high-pressure working environments.
Oxidation resistance: Graphite electrodes are prone to react with oxygen in the air at high temperatures. However, 800t4 graphite electrodes are usually specially treated to enhance their oxidation resistance and extend their service life.
Overall, the thread parameters of the high-power graphite electrode connector and the specifications and parameters of the 800t4 graphite electrode are all key factors to ensure the stable performance of the electrode in industrial applications. By thoroughly understanding these parameters, we can better select and use suitable electrode products, thereby enhancing production efficiency and ensuring production safety. It is hoped that this article can provide useful references for the practitioners in the majority of industries.
