KY-HSG Cable Clip Heat Shrink Gasket

                                                                          KY-HSG Cable Clip Heat Shrink Gasket ( Shrink Hoop )

Product description :

  KY-HSG Cable Clip Heat Shrink Gasket ( Shrink Hoop ) is a heatable gasket with a very high thermal shrinkage rate and good strain relief. This product can be placed on the cable harness after the connector crimping operation is completed. This material with a very high heat shrink ratio conveniently fills the gap between the clip-on connector attachment and the cable.

  When snapped into place, KY-HSG Cable Clip Heat Shrink Gasket ( Shrink Hoop ) provide better and more convenient strain relief than traditional seals (such as tape, gaskets, or a combination of the two), while matching most cable harness shapes, ranging from From single-conductor harnesses to high-density multi-conductor harnesses.

  Repairs and sealing are easier with KY-HSG Cable Clip Heat Shrink Gasket ( Shrink Hoop ), heat the gasket until soft, and pass a non-metallic probe through the center of the wire bundle (enlarge the inner diameter of the gasket). The gasket remains expanded after cooling, allowing wires to be added and removed or reworked. The system can then be inspected, reheated (re-used shrink), positioned and snapped into the ring gasket.

Temperature range :

  -55 ℃ ~ 135 ℃

 Features :

  1. Excellent stress relief, short installation time (only 10~20 seconds for curved installation), not easy to make mistakes, easy to reseal .

  2. No tape or lead buildup in the ring gasket .

  3. The inner diameter of the product can be expanded repeatedly, allowing additional wires to be added to the cable bundle .

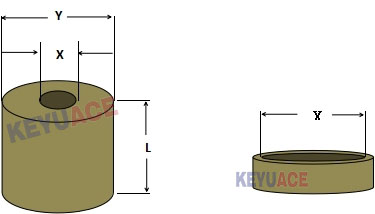

Drawing

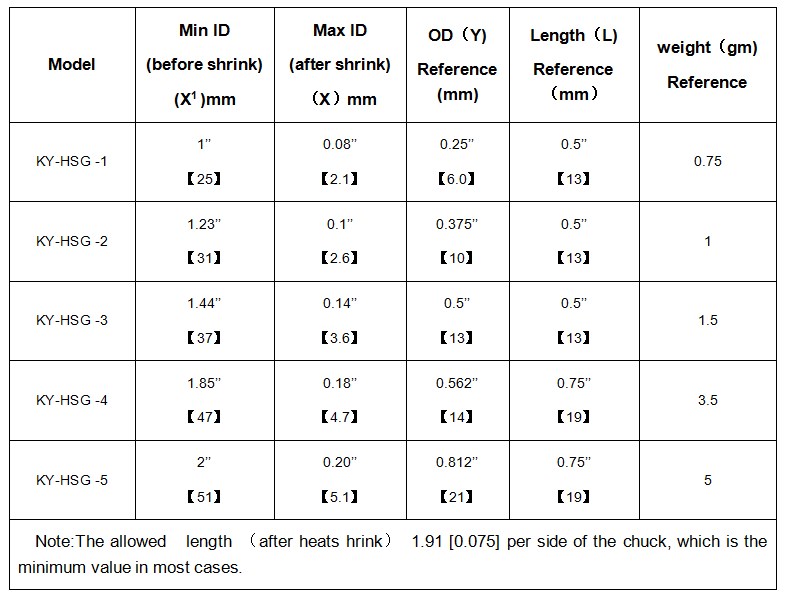

Specification :

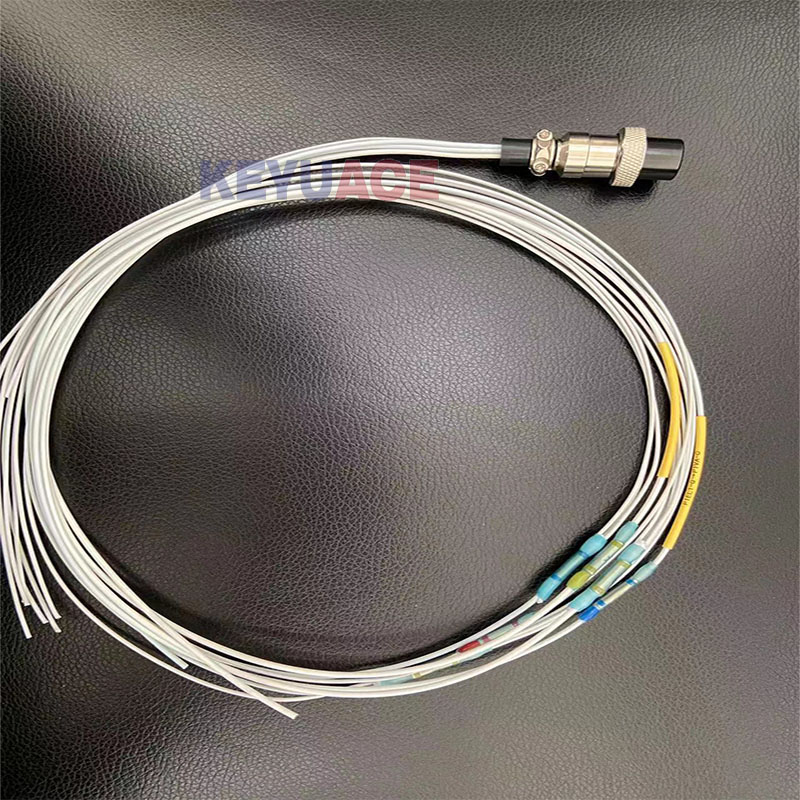

Application ：
