5mm Ultra Bright RYG LED
3 month ago
- 5MM RGB LED -
Z509FRGYC-14

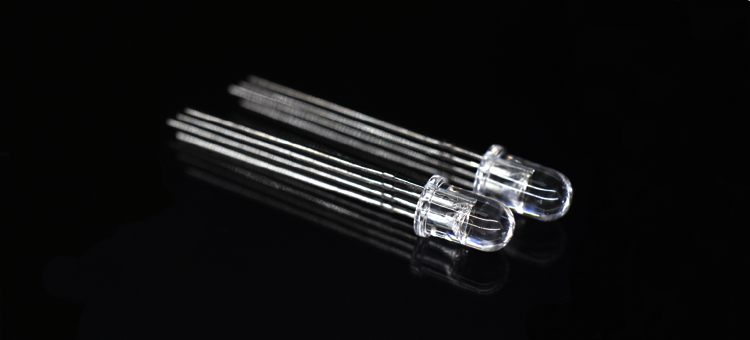

The most popular tricolor LED in the market is RGB LED. But for some project, people will need some different color in this 4-pins LED. Z509FRGYC-14 is the tricolor LED which have red color, yellow color and green color in side of this LED at the same time. There have 4 leads for the current in the bottom of this through-hole LED and each lead connect with different color. Z509FRGYC-14 is a common anode LED which means the longest lead will be for anode polarity and other leads will be for the cathode and each one of them can connect with different color. You can design the circuit as your requirement to control the color as your requirement. With the ultra brightness on this RYG LED 5mm multi-color LED Lamps, you will definitely got a beautiful project!
- Size: 5.0*8.7mm
- Chip Number: 3chips
- Color: red+green+yellow
- Type: water clear
- Chip brand: Sanan
-Common Anode
- Different color are available
- Different wavelength are available
- Warranty: 5 Years
- RoHS, REACH, EN62471
- Uniform light output
- Long life-solid state reliability
- Low Power consumption
-Anti UV epoxy resin package
-High temperature resistance
-Dimension Parameters -
These through-hole LED case are also available for IR LED, UV LED, Blue SMD LED, Red SMD LED, Amber LED ect.

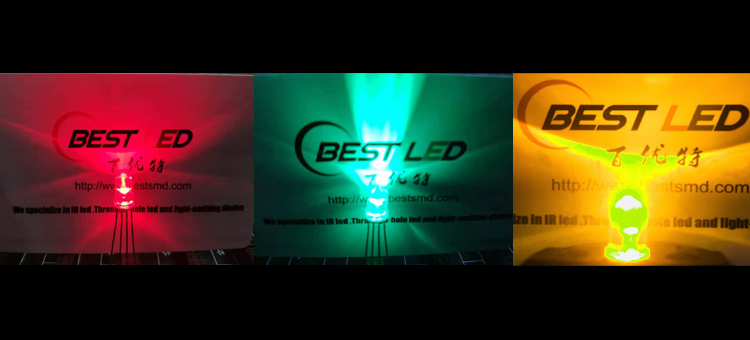

- Emitting Color -
*Colors in the photo was took by camera, please take actual emitting color as standard.

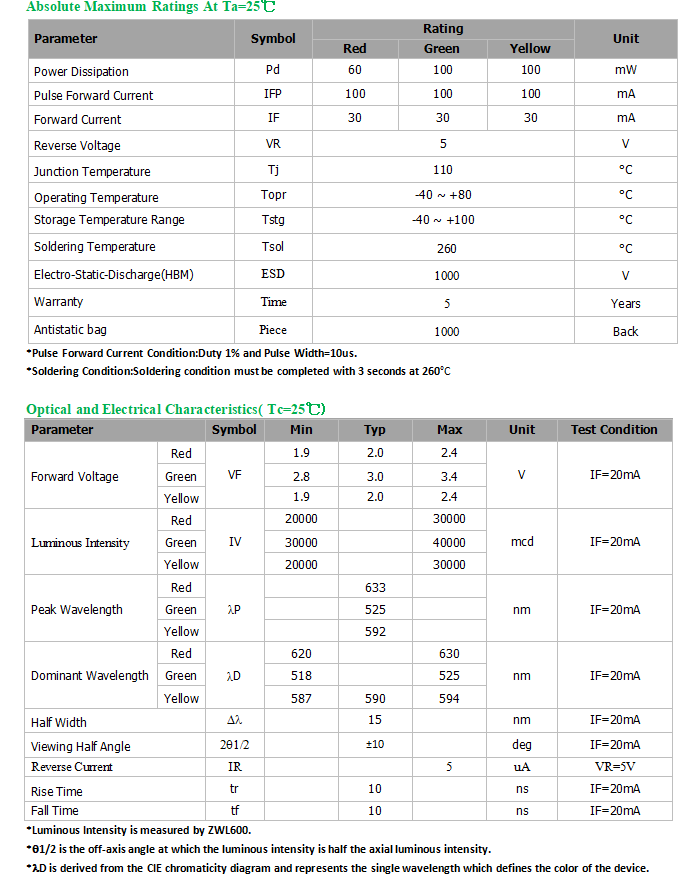

- Electrical Parameters -
- Golden Wire Connection -
- Packing -
*We package it with vacuum packing after tape it as a reel
- Application -
- Related RGB LED -
- Production -
- Use -
