Identification of fluorescent agents in laundry detergent
3 month ago
Fiber optical spectrometer acts a critical role in spectrum analysis and detection. It is used to measure wavelength and linewidth of lasers, LEDs and ordinary light source. Quantum efficiency of the high sensitivity spectrometer-Sunshine can be up to 80%. The performance of these CCD spectrometers is used for educational applications or fiber-based systems.
CNI also provides many kinds of spectrum analysis accessories, such as optical filter, laser power meter, laser goggles, spectrum calibration laser, tungsten Lamp, halogen light source, laser safety protection board, etc.CNI provide the UV laser, violet laser, blue laser, green laser, yellow laser, red laser and IR laser.
|
11Features
|
11Applications11111111111111111111111
|
Available Model
| Model |
Spectral range |
|
|
Sunshine General series |
GE 200-1100nm |
|
|
GE 350-1100nm |
||
|
GE-Raman 532-700nm |
||
|
GE-Raman 785-1100nm |
||
|
New |
185-240nm |
|
|
New |
1000-1550nm |
|
|
Sunshine External Triggering series |
TG 200-1100nm |
|
|
TG-Raman 532-700nm |
||
|
TG-Raman 785-1100nm |
||
| Model |
Wavelength
|
Optical resolution (nm) | ||||
| Entrance aperture (um) | ||||||
| 10 | 25 | 50 | 100 | 200 | ||
| Sunshine | 200-1100nm | 0.87 | 1.09 | 1.84 | 3.51 | 6.72 |
| 350-1100nm | 0.87 | 1.09 | 1.84 | 3.51 | 6.72 | |
| 300-515nm | 0.20 | 0.26 | 0.44 | 0.83 | 1.60 | |
| 400-837nm | 0.42 | 0.53 | 0.89 | 1.70 | 3.26 | |
| 785-110nm | 0.30 | 0.38 | 0.64 | 1.23 | 2.35 | |
Standard Specifications
Detector
| Detector | Hamamatsu S 11510 |
| Wavelength range | 200-1100nm |
| Pixels | 2048 pixels |
| Pixel size | 14*14um |
Spectrometer
| Dimensions (nm) | 149*109*50 |
| Weight (g) | 1000 |
| Optical resolution | Depending om the grating mark density and the alit size (available in a varinety of options) |
| Signal-to-nois-ratio | ~450:1 |
| Integration time | 17ms~10s |
Electronics
| Power consumption | 450mA@5VDC |
| Data transter speed | Full scans into memory every 4ms with USB 2.0; every 18 ms with USB 1.1 |
| Inputs/ outputs | 5 inputs and 5 outputs (opto-isolator inputs/ outputs) |
| Analog channels | One 12 analog input one 12 analog output |
| S5 inputs and 5 trobe functions | Yes |
| Connector | 30-pin connector |
Applications

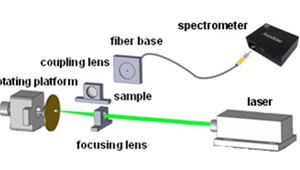

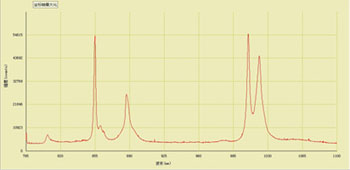

Raman Spectrum
LIBS Spectrum
Related Products
High Frequency Laser
Optic Fiber Spectrometer
Fluorescence Spectrometer
Confocal Laser Scanning Microscopy
Raman Spectroscopy Laser
Laser Induced Breakdown Spectroscopy
Fiber Coupled Laser Diode Module
Certification
Copmpany Information
Changchun New Industries (CNI), founded in 1996, located in Changchun, CHINA, is a manufacturer of solid-state and diode laser systems. CNI possesses accountable and dependable service as well as quality products with compact design, high reliability, good performance. The products are widely used for scientific research, equipment manufacturing, biomedical experiment, precision measurement, entertainment, radar communication, material processing, process control, online detection, investigation equipment and other fields.
