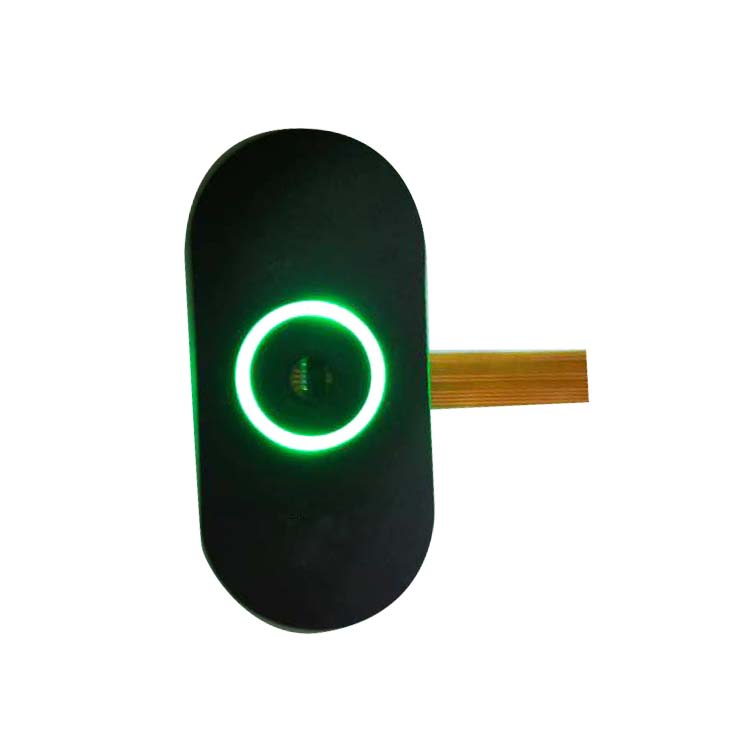

RGB backlight membrane switch

I. The Role of Backlighting in Membrane Switch Design

1.  Visual Effect: Used to highlight or draw attention to certain key areas of the graphic overlay, or to aid visibility in low lighting conditions.

2.  Enhanced Usability: Makes the graphic overlay elements more visible in dim lighting, helps users identify the correct control options, and serves as an indicator of active functions.

II. Considerations in Backlighting Design

1.  Power Consumption and Heat Production: Some backlighting technologies with low power consumption and heat generation are more suitable for battery-powered devices and applications where minimizing power demands is desirable.

2.   Aesthetics: The backlighting options should be carefully chosen based on the usability requirements and the general layout of the graphic overlay to enhance the aesthetic appeal of the product.

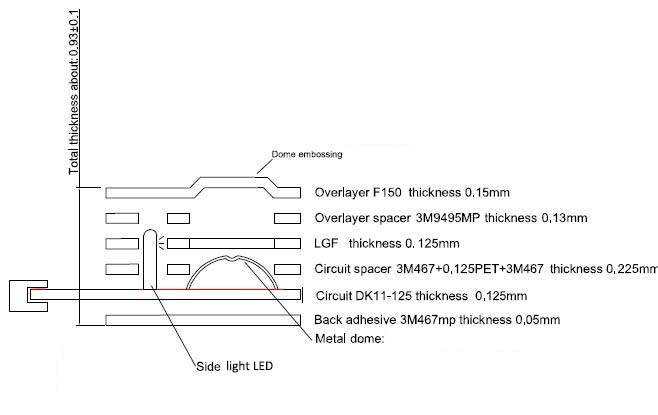

III. Light Guide Film (LGF) Backlighting:

1.    Principle: LGF (Light Guide Film) backlight membrane switch is a type of membrane switch that uses a light guide film to distribute light evenly across the switch. The light source is typically located at the edge of the film, and the light is guided through the film to provide uniform backlighting.

2.    Advantage：a thinner and more compact design, improved energy efficiency, and better light uniformity.
