OFPT ceramic ribbon fiber optic heat shrink tubing

Ceramic Ribbon Fiber Optic Fusion Splice Protection Sleeve

Ceramic Ribbon Fiber Optic Fusion Splice Protection Sleeve, Fiber Heat Shrink Tube made of transparent heat shrink tube( outer tube), transparent heat melting tube (inner tube) and single ceramic strengthening core, Fiber Optical Heat Shrinkable Tubing , Fiber Optic Heat Shrink Sleeve is protection component designed for 8~12 cores ribbon optical fiber splice.

Quartz strengthening core
Heat melting tube length: 40mm, 60mm.
Working temperature: -45 degrees C~100 degrees C
Final temperature: 120 degrees C

Fiberglass rod strengthening rib optical welding protective tube

 Thin Wall Clear Heat Shrink Tubing,  The product is made of transparent heat shrink tube( outer tube), transparent heat melting tube (inner tube) and diameter 1.0 fiberglass rod strengthening rib, is protection component designed for optical fiber welding splice.

Product feature:
1, High strength, no magnetic interference, insulation, light weight.
2, Do not affect the optical properties of the optical fiber; Protect Splice, improve mechanical strength.
3, Easy to operate, reduce the danger of optical damage during installation.
4 , Transparent tube, optical connection status is clear at a glance.

Working temperature: -45 degrees C ~100 degrees C
Final shrink temp.: 120 degrees C
Size: 1.0mm fiber rob, 1.5mm fiber rob

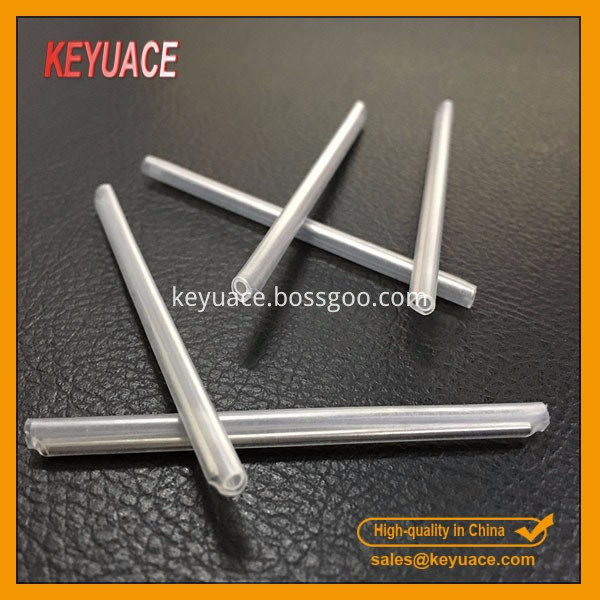

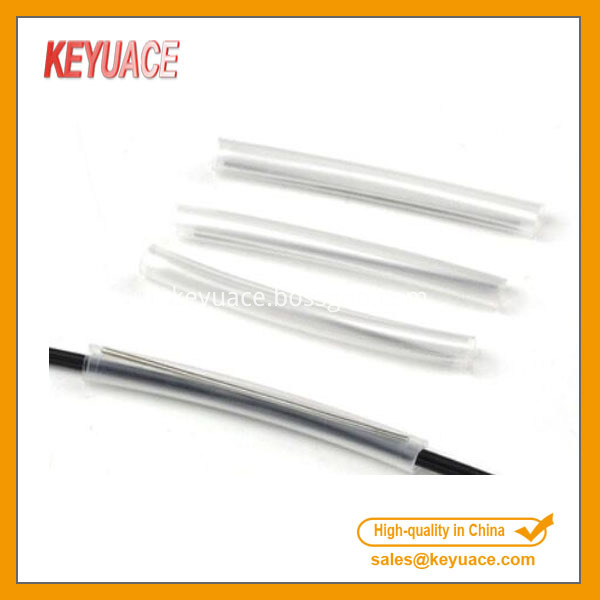

Quartz glass rob strengthening rib optical fiber welding splice protection tube

      The product is made of transparent heat shrink tube( outer tube), transparent heat melting tube (inner tube) and diameter 1.5 quartz fiberglass rod strengthening rib, is protection component designed for 0.9mm optical fiber welding splice.

      Length:45mm, transparent single core optical fiber welding splice protection tube, 1.5mm quarts glass rob strengthening rib, diameter 2.8mm after heat shrinking.

Product Feature:
1, Do not affect the optical properties of the optical fiber; Protect Splice, improve mechanical strength.
2, Easy to operate, reduce the danger of  optical damage during installation.
3, Transparent tube, optical connection status is clear at a glance.
4, Shrinkable, seal structure makes the slice have high temperature resistant and dump-proof properties.

Working temperature: -45 degrees C- 100 degrees C
Final temp.: 120 degrees C

Click The Picture To Enter Relative Splice Protection Sleeve Below:
