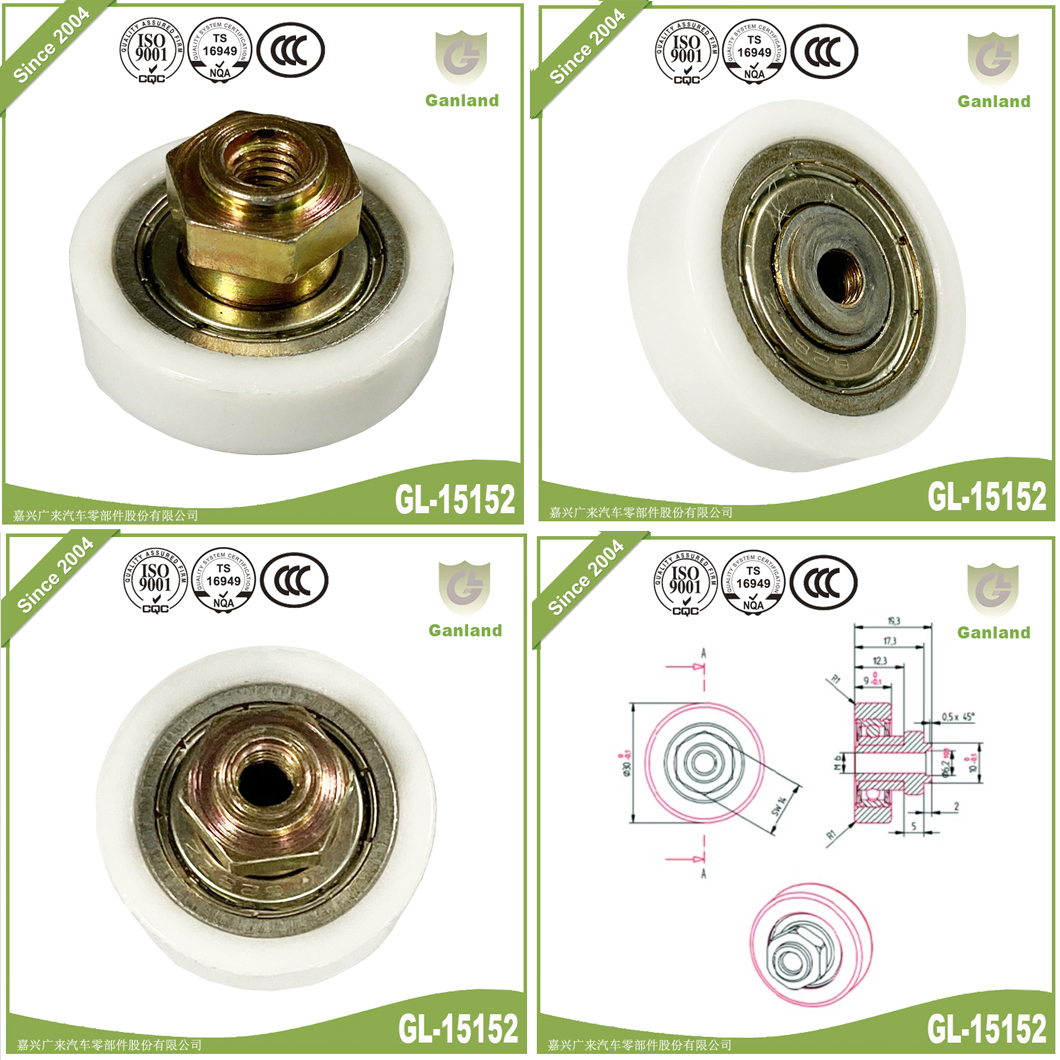

GL-15152 30mm roler

A 30mm Curtainside Roller for Schmitz (often specifically referenced as a 30.5mm roller) is a heavy-duty sliding component designed specifically for the side curtain systems of Schmitz Cargobull trailers. It allows the large PVC curtains to glide smoothly along the top aluminum or steel track for quick loading and unloading.

Key Technical Specifications

While "30mm" is the common shorthand, the actual dimensions for a Schmitz-compatible roller are usually:

• Wheel Diameter: approximately $30.5mm$ (to fit the specific curve of Schmitz tracks).

• Wheel Width: $26mm$ to $30mm$.

• Shank Length: Typically around $160mm$ (the vertical metal bar that attaches to the curtain buckle or strap).

• Material: Usually features a high-impact Nylon wheel (to reduce noise and wear on the track) or a Steel wheel for heavy-duty use.

• Bearing: Equipped with a sealed ball bearing for long-term smooth operation and resistance to road debris/moisture.

Why the "30mm" Detail Matters

• Track Compatibility: Schmitz trailers use a specific track profile. Using a standard 24mm or 35mm roller will result in the curtain jamming or jumping out of the rail.

• Load Distribution: The $30.5mm$ wheel size is engineered to handle the vertical tension of the curtain straps without deforming the track.

Common Signs It Needs Replacement

If you are looking for this part, you might be noticing:

• Resistance: The curtain "sticks" or requires significant force to open.

• Flat Spots: The nylon wheels have worn down or flattened from being stationary for too long under high tension.

• Corrosion: The galvanized steel shank has rusted, making it difficult for the roller to pivot.

Recommended Complementary Parts

When replacing these rollers, it is often standard practice to check the following:

• Curtain Buckles: Ensure the tensioning buckles are not bent.

• Track Cleanliness: Use a dry lubricant spray (not grease, which attracts grit) inside the $30mm$ track.

• Bottom Poles: Check that the bottom curtain poles aren't warped, as this puts extra stress on the top rollers.
