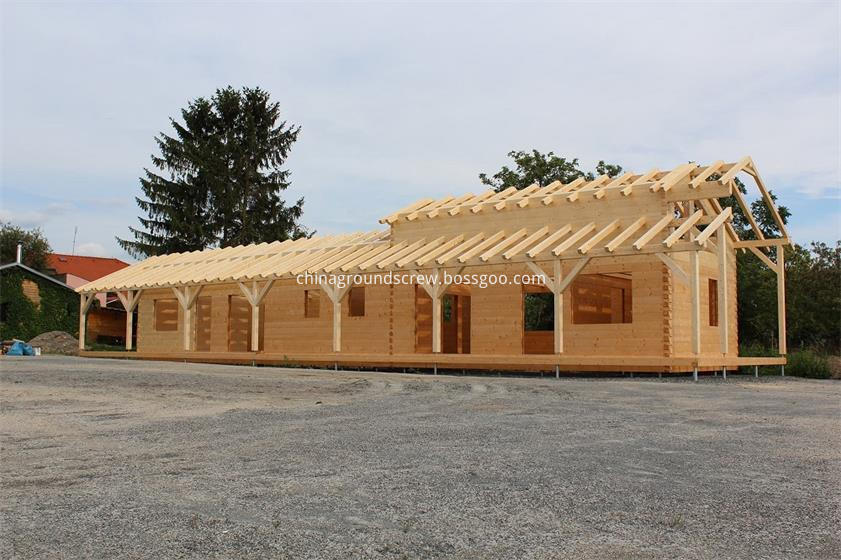

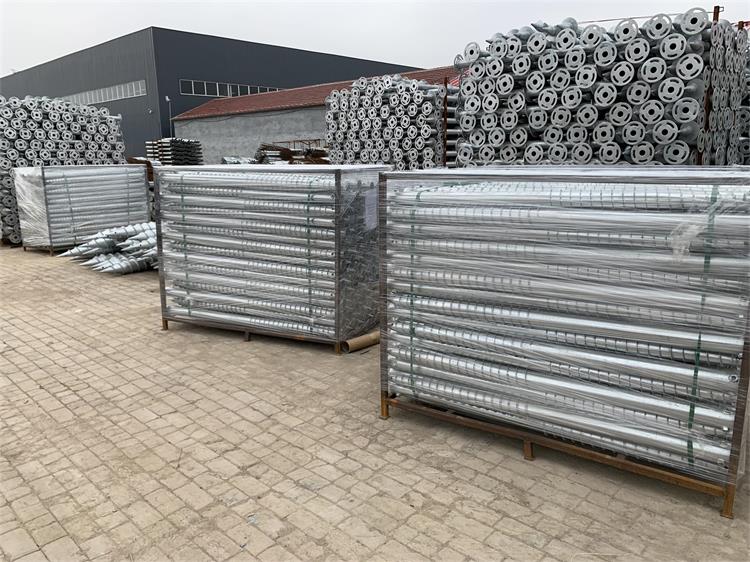

Now more and more timber construction and simple house use Ground Screw Anchor for basement.Using Ground Pile as foundation support is convenient and fast,saving time and money.Screw Piles are also easier transport than other traditional foundations.Suppliers generally pack Ground Screws into pallets,and the construction only needs to transport the required number of pallets to the construction site.

N series Ground Screw Pile without flange, but with Nut and reinforced washer, usually with 3 or 6 nut , and 2 pieces reinforced washer to reinforce strength .

Material: S 235 carbon steel.

Length of the N Series Ground Screw: 550-6000 mm .

Diameter of pipe: 48 mm, 68 mm, 76 mm, 89 mm, 114 mm, according to clients' request.

Thickness of pile: 2.75 mm, 3.00 mm, 3.75 mm, 4.00 mm

Nut : M 10/12/14/16 According to clients' request.

Welding: with auto welding machine.

Cutting:with automatic pipe cutting machines.

Surface treatment: High dip galvanized, according to DIN EN ISO 1461-1999, thickness of coating zinc: more than 80 micron.

Galvanized Steel Ground Screw common size as follow:
