ground screw foundation
2 month ago

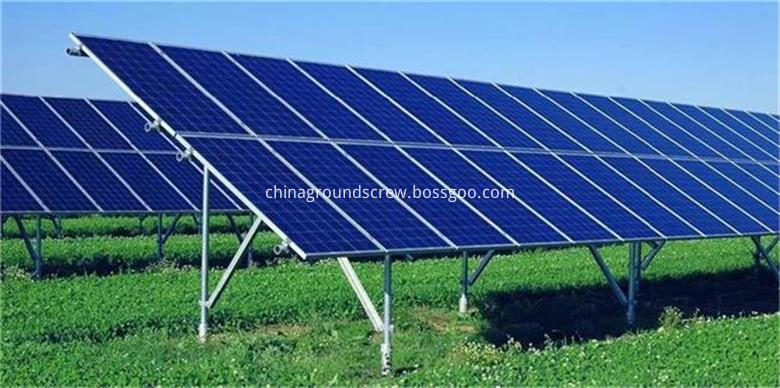

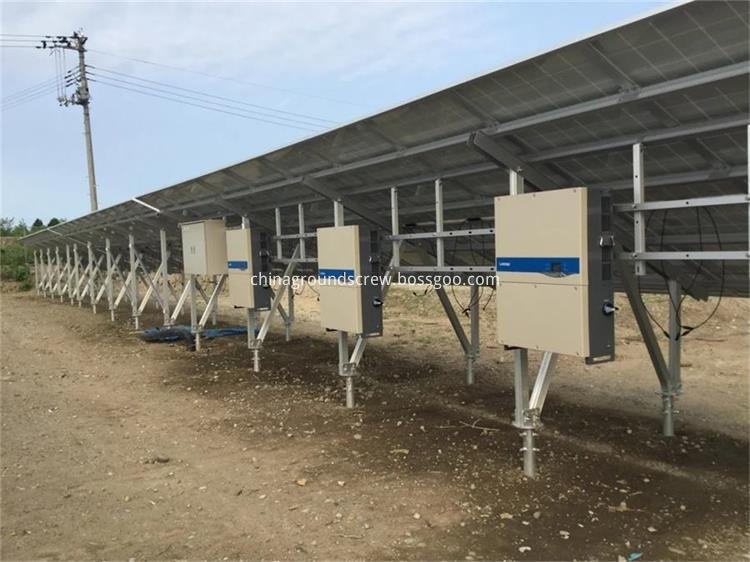

We are one of Chinese Best Ground Screw Anchor supplier.When you want to start mounting photovoltaic solar panel project,Do you need a ground support?The Helical Ground Screw have many advantage,such as: easy install , no digging , no concrete , no waiting , much convenient , cost effective , save time, suitable for different soil.So using Ground Pile you can quickly and easily start mounting system.

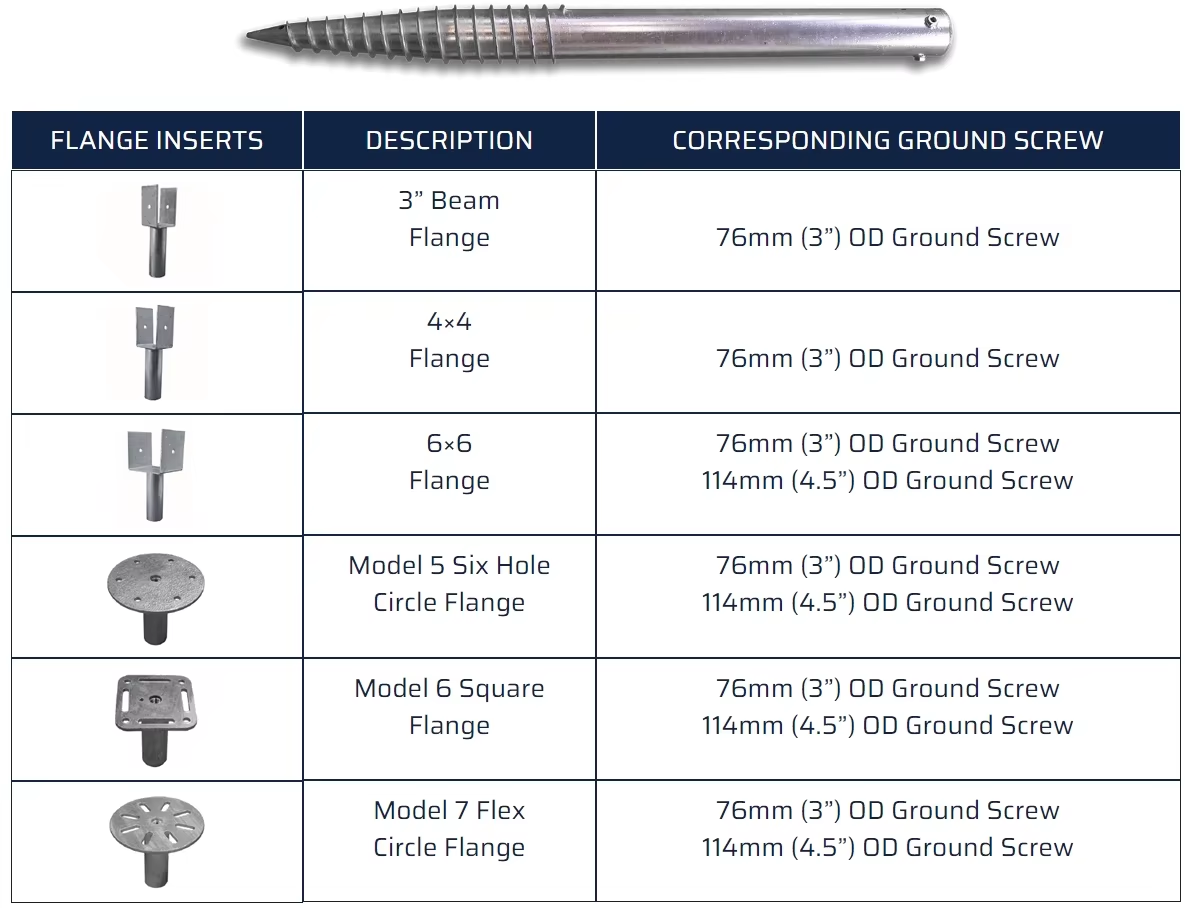

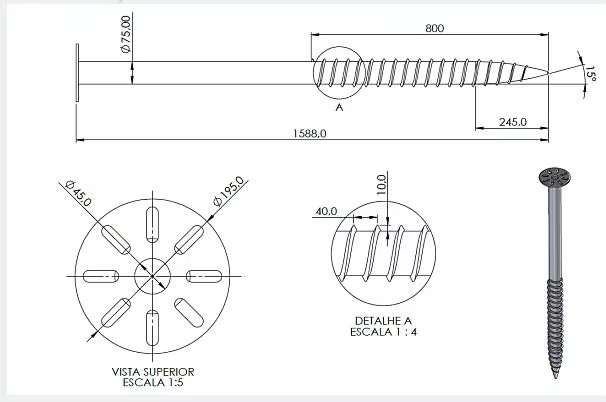

The Flange Ground Screw with flange, flange size is 8*200 mm, or 6*160 mm, or according to clients' request.
Material :S 235 carbon steel.
Length of Ground Screw: 550-6000 mm .
Screw Pile's diameter: 48 mm, 68 mm, 76 mm, 89 mm, 114 mm , according to clients' request.
Thickness of Helix Ground Screw Pile: 2.75 mm, 3.00 mm, 3.75 mm, 4.00 mm.
Flange diameter: 200 mm, thickness : 8 mm. or according to clients' request.
Surface treatment: High dip galvanized, according to DIN EN ISO 1461-1999, thickness of coating zinc: more than 80 micron.
Range of application: Photovoltaic solar energy system, garden or farm fencing, timber construction, simple house construction , advertising board and banner, traffic signature, lighting pole, flag pole , event structure, sheds and containers &.
Common size of Ground Screw Foundation as follow:
|
Diameter(mm) |
Thickness(mm) |
Length(mm) |
|
76 |
2.75 |
1000 |
|
76 |
2.75 |
1200 |
|
76 |
3.0 |
1200 |
|
76 |
3.0 |
1500 |
|
76 |
3.0 |
1800 |
|
89 |
3.0 |
1500 |
|
89 |
3.0 |
1800 |
|
89 |
3.0 |
2100 |
|
114 |
4.0 |
1800 |
|
114 |
4.0 |
2100 |
|
114 |
4.0 |
2500 |
