Padel tennis is a combination of tennis, squash, table tennis, badminton and other technical features, is a ball game played on a fully enclosed dedicated court, can be composed of porous concrete, cement, wood, artificial turfor any regular rebound surface. The venue is convenient (configurable) and can be assembled and disassembled according to the specific competition and tour.

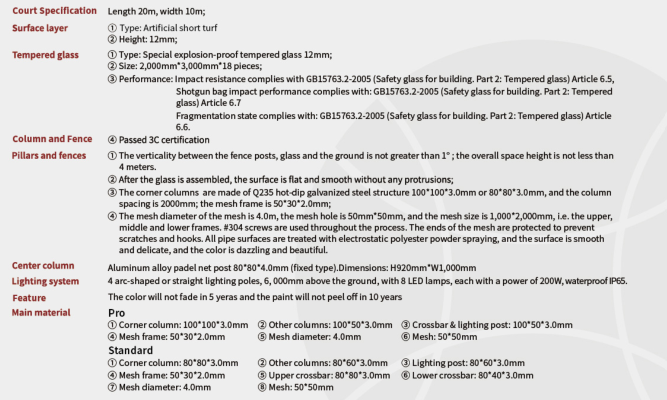

| model | Composition and Parameters | specifiction | unit |
| Y-PD004 | 1. Site dimensions: Length 20 meters * Width 10 meters. 2. Column and beam dimensions parameters: Corner column dimensions: 100mm x 100mm x 3mm * Height 3000mm * 4 pieces 20-meter side beam dimensions: 50mm x 100mm x 3mm * Length 4000mm * 4 pieces 20-meter side lower beam dimensions: 50mm x 100mm x 3mm * Length 4000mm * 4 pieces 10-meter side beam dimensions: 50mm x 100mm x 3mm * Length 5000mm * 4 pieces 10-meter side lower beam dimensions: 50mm x 100mm x 3mm * Length 5000mm * 4 pieces 20-meter side column dimensions: 50mm x 100mm x 3mm * Height 3000mm * 12 pieces Lighting column dimensions: 50mm x 100mm x 3mm * Height 3000mm * 4 pieces The materials and processes of columns and beams: Columns and beams are made of high-quality steel tubes, with electrostatic spraying technology for anti-corrosion and rust prevention, and the color can be customized according to requirements. 3. Steel frame tube dimensions: 30mm x 50mm x 2mm, the overall size of the frame is 2000 x 1000mm, each set has 46 pieces, the height of the end and side guardrails at the top is 4m, the height of the middle guardrail on the side is 3m; the wire diameter is 4mm, the mesh size is 50mm x 50mm. The ends of the wire have protective measures to prevent scratches and hooks, all pipe surfaces are electrostatic powder coated, smooth and fine, durable and elegant. 4. Accessories: All connecting screws are made of 304 stainless steel, they will not rust for a lifetime, are firm and do not deform, and have a beautiful appearance. The connecting accessories for glass holes use high-quality rubber plugs, washers, and stainless steel screws. 5. Tempered glass: 18 pieces Type: Special explosion-proof tempered glass Size: 1995mm x 2995mm Thickness: 12mm 6. Artificial turf Height: 12mm; Spacing: 250; Row spacing: 3/16" Density: 52500; Weight: 9000; Back adhesive: PU 7. Lighting: 8 LED lamps with 200W each 8. Tennis pole set 1 set |
Length:20 meters Width:10 meters |
Our company offers after-sales service.
Delivery terms accepted: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDU. Delivery methods: DAF, DES. Acceptable payment currencies: US dollars, euros, Japanese yen, Canadian dollars, Australian dollars, Hong Kong dollars, British pounds, RMB, Swiss francs. Acceptable payment methods: T/T, L/C, D/P D/A, Western Union, PayPal, MoneyGram, Cash, Custody. Languages: English, Chinese, Spanish.
Enlio company was established in 2007, and specialized in producing PVC Sports Flooring, Modular Court Tiles, Wet Area Mats, Kids Room Flooring, Dance Flooring, Multi- Purpose Flooring, and so on.
CNAS national accreditation laboratory, among the ranks of national accreditation laboratories.
The products is approved by BWF, ITTF, ITF, IHF, FIBA, FIBA 3X3. The products has passed CE, SGS, ROHS certification.
Enlio is the FIBA 3x3 Global Official Court Supplier 2019-2026, and is the FIBA 3x3 World Cup Official Court Supplier 2019-2026.
We are one of the supplier that provides products to three Olympic Games, respecticely 2020 Toyko, 2024 Paris and upcoming 2028 L.A.
