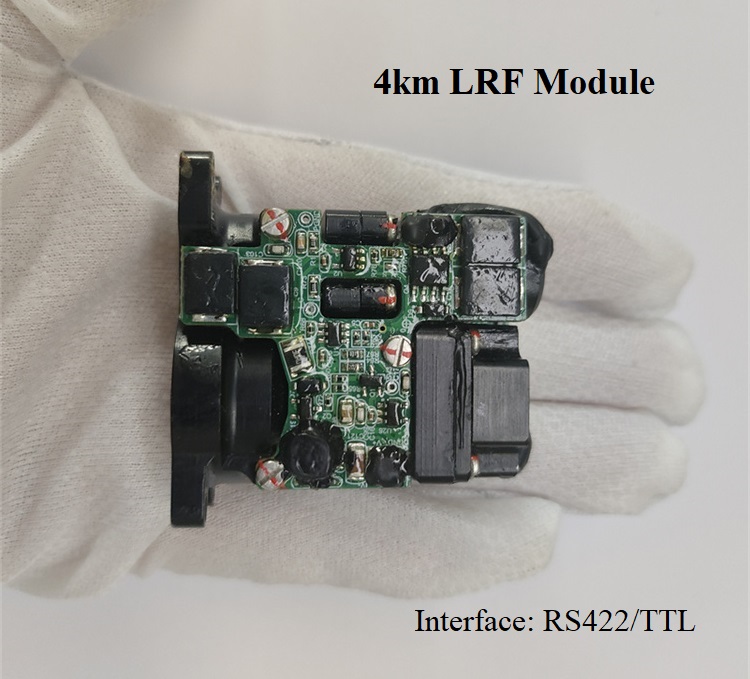

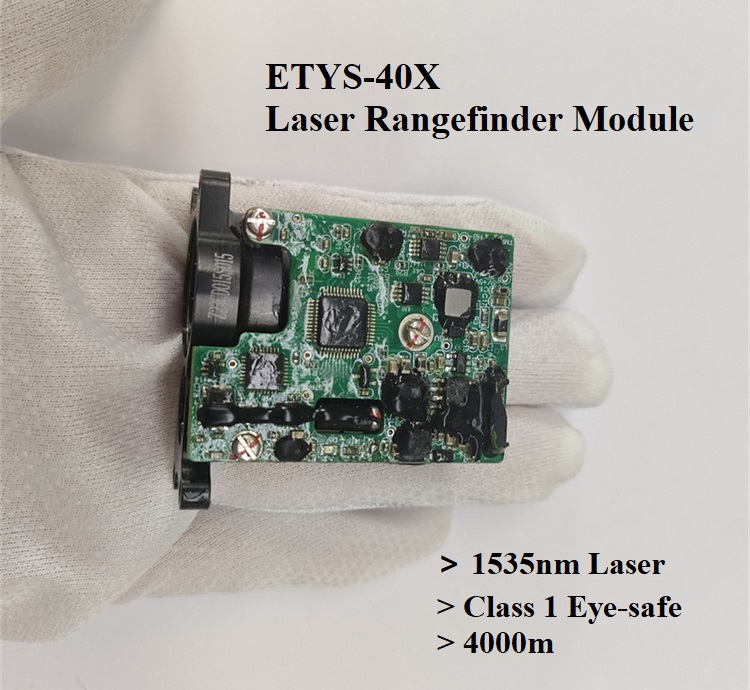

4000m Compact Binoculars Sensor Measurement Module

10km LiDAR Hunting Range Finders Sensor RS422

Are you looking for a LiDAR range finder sensor solution to measure the quantity of multiple unmanned aircraft targets? With 10000 m of range measurement ability, it's suitable for using is in outdoor and monitoring the height of drone. If the target is human, the measure ranging can be up to 5100m. If you hope to know more product infos and have a good cooperation with our company, please contact us.

Frequently Asked Questions:

Q1: Hello, what is the range of this rangefinder module? Can you provide me with the exact pictures? I need a sample first.

A1: The ETYS-10KX is a long range sensor can measure up to 10000 metres. For exact pictures, please see the following particulars, thanks.

Q2: I would like to buy the range finders sensor. What is the interface? The sensor is designed to measure the height of UAS (unmanned aircraft system) for collision avoidance.

A2: Its output is rs422. Can you provide more information of your project? That will be helpful for product selection.

Technical Parameters:

Working wavelength: 1535nm ± 10nm

2 Eye-safe level: Class Ⅰ

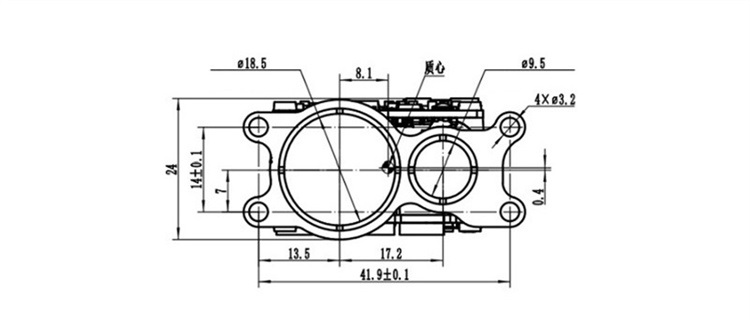

3 Transmitting aperture: Φ15.2mm

4 Receiving aperture: Φ47.2mm

5 Baud rate: 38400bps (default)/9600bps/57600bps/115200bps

6 Range measurement capability:

≥ 13200m (typical reference value for large targets)

≥ 10200m (2.3m × 4.6m standard target plate or equivalent target)

≥ 6400 * (person)

7 Range measurement blind area: ≤ 50m

8 Range measurement accuracy: ± 2m (optional ± 1m)

9 Precise measurement rate: ≥ 98%

10 False alarm rate: ≤ 2%

11 Range measurement frequency: single shot, 1Hz, 5Hz

12 Electrical isolation: Power ground, communication ground and structural ground are isolated

Physical characteristics

Weight: ≤ 230g

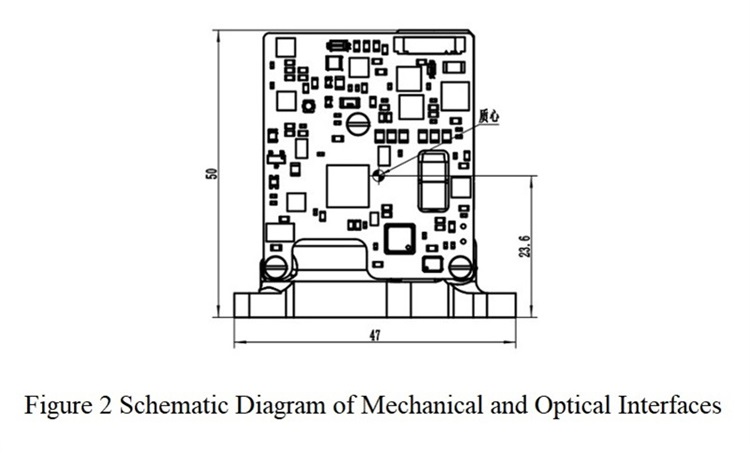

13 Dimensions: ≤ 95mm × 60.5mm × 71.5mm



Communication interface & Electrical

Electrical interface: Connector socket: J30JZLN15ZKWA000

Connector plug: J30JZ/XN15TJCAL01

Power supply voltage: 18V ~ 36V

Standby power consumption: ≤ 1.6W

Average power consumption: ≤ 1.8W

Peak power consumption: ≤ 4.5W



Environmental conditions

Operating temperature: -40℃ ~ 60℃ (defense grade)

Storage temperature: -55℃ ~ 70℃ (defense grade)

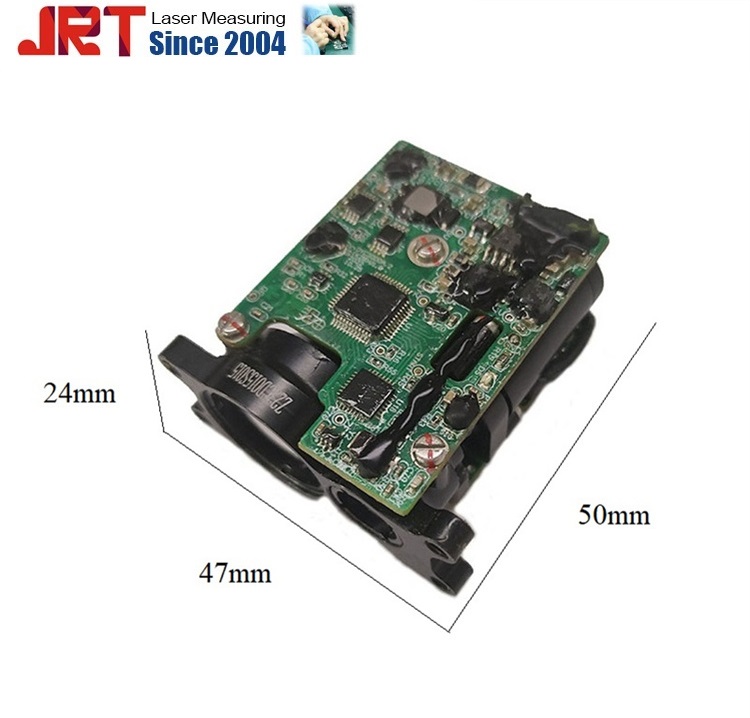

Front & Back

Applications

This Industrial Laser Range Sensor can be widely used in agricultural forestry, electricity/power inspection, safety supervision, urban management, security, fire protection, geological exploration etc.

Packaging

Chengdu JRT Main Smart Devices: Industrial Laser Distance Sensors, Rangefinder Sensor , Tof LiDAR Sensors, Measuring Tool Instruments.
