Stamping Die Plate

3 month ago

0 0 

Dongguan Hao Chen Precision Industry Co., Ltd.

2 year

Product details

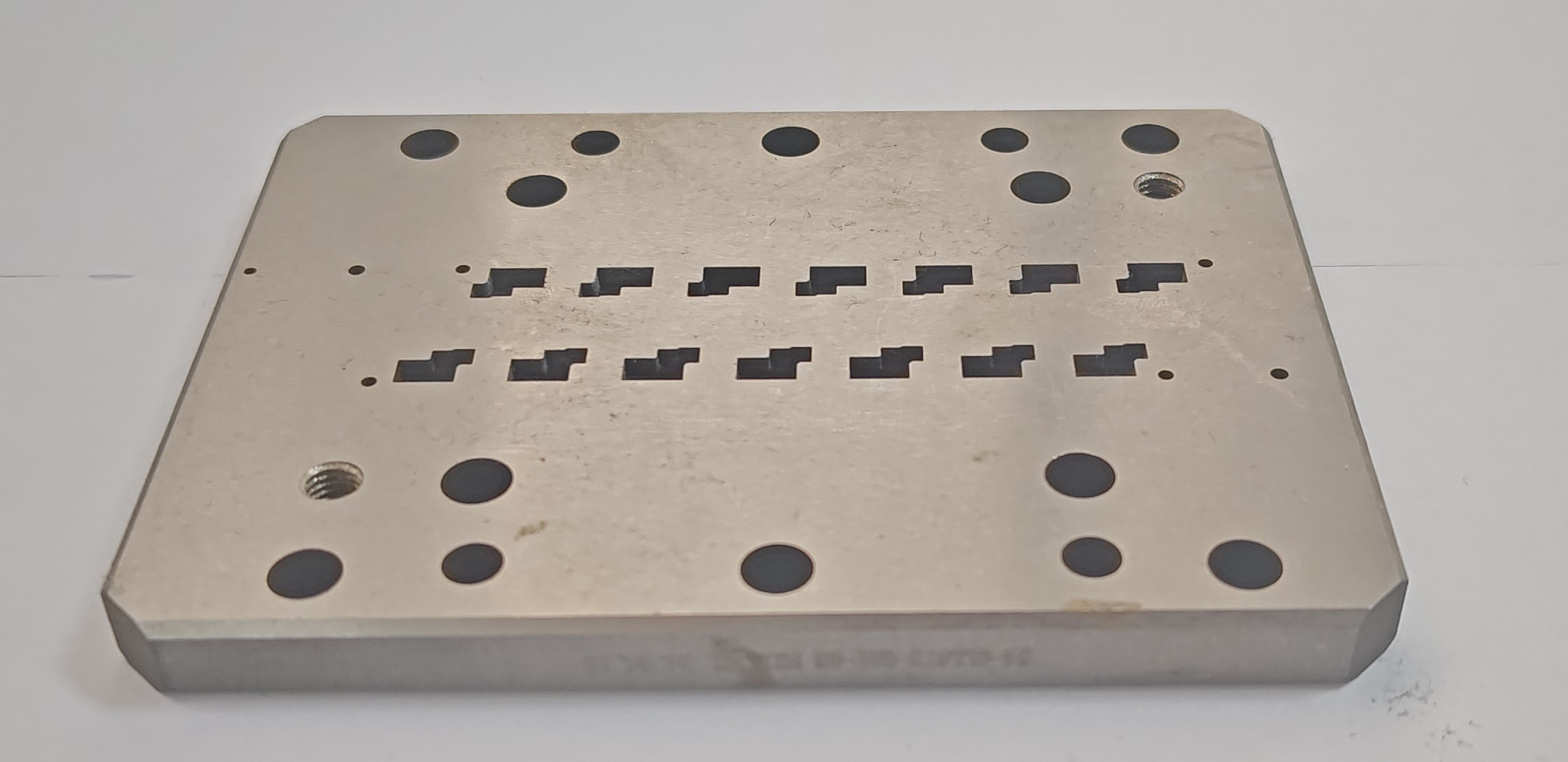

This is a precision-machined industrial-grade metal template. The overall structure is a standard rectangular structure, and the corners are rounded to ensure structural strength and avoid safety hazards caused by sharp angles. The surface of the template has been finely polished to present a uniform silver-gray metallic luster. The material is speculated to be high-quality alloy steel or tool steel, with good wear resistance and mechanical strength.

There are multiple sets of CNC precision-machined hole systems distributed on the template: standardized circular through holes of different diameters are evenly arranged on the edges, including bolt holes for strong fixation and pin holes for precise positioning, and all holes maintain strict coaxiality and position tolerances. The central area is designed with two rows of equally spaced rectangular functional slots, each of which is precisely embedded with a special functional module (possibly a guide slider, ejection mechanism or sensor mounting seat), and the chamfering treatment of the edge of the slot body shows professional design considerations.

In terms of structural layout, the arrangement of holes and functional slots follows the modular design concept, showing obvious symmetry and scalability. Calibration reference surfaces are also specially set at the four corners of the template, and process slots for hoisting may be processed on the side. Judging from the precise processing traces and rigorous structural design, this template is likely to be a key positioning component in an automated production line or precision stamping die, used to ensure repeated positioning accuracy and system stability during the production process. Its standardized interface design also suggests that it is a core component in a certain industrial standard parts system.
