MP-20KV Bus Bar Heat Shrink Sleeving

2 month ago

4 0 

Dong Guan KE YU New Material Technology co.,LTD

8 year

Product details

MP-20KV Bus Bar Heat Shrink Sleeving

Description

MP-20KV bus bar heat shrink sleeving, known as copper bar protection tube, is made of cross-linked environmental protection polyolefin PE heat shrinkable materials which is bombarded by high power electron beam.

The product with good resistance to bending and scratching, high insulation strength and resistance to electric carbon mark, applies to switchgear, substation bus, busbar, electrical equipment for anti-corrosion and insulation protection. It’s widely used in electric power industry.

Feature & benefit

1, Resistance to flame and corrosion.

2, With superior insulated and chemical properties.

3, Shrink ratio: 2:1 , Withstand voltage : 1 kV, 10KV, 20KV, 35 kV

4, Environmental friendly, high strength, good elasticity, flame-resistant, soft.

Operating indexes:

Min. Shrink temp.: 80℃

Final shrink temp.: ~120℃

Operating temp.: -55℃~125℃

Up to standard: Approvals

Meet RoHs compliant

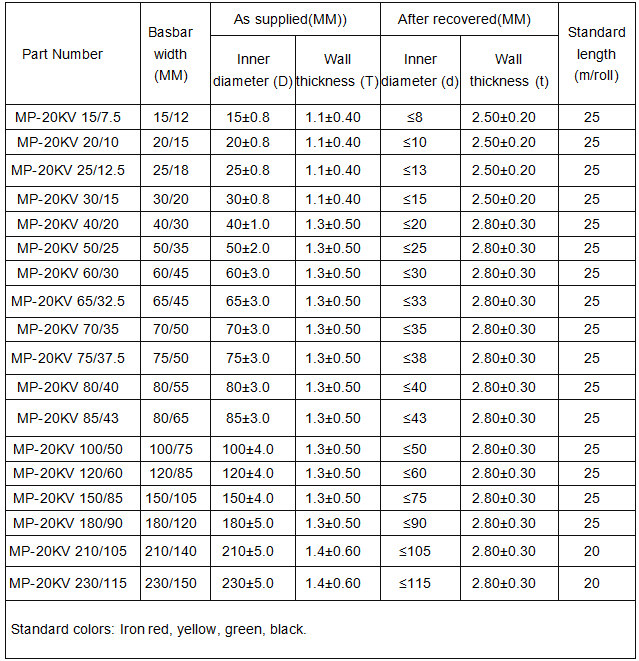

Technical Date

Dimension

Standard colors: Iron red, yellow, green, black.

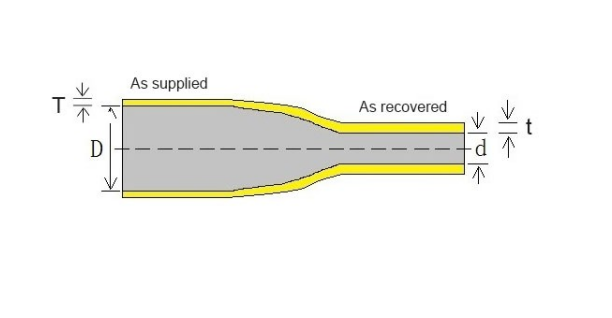

Schematic diagram
