TRIAC （ISOLATED MOLD TYPE）

P/N:YZPST-TG40E60

TG40E is isolated mold triac suitable for wide range of

applications like copier, micro wave ovens, solid state switches, motor control, light control and heater control.

. IT（AV） 40A

. High surge capability 420A . Isolated Nounting（AC2500V）

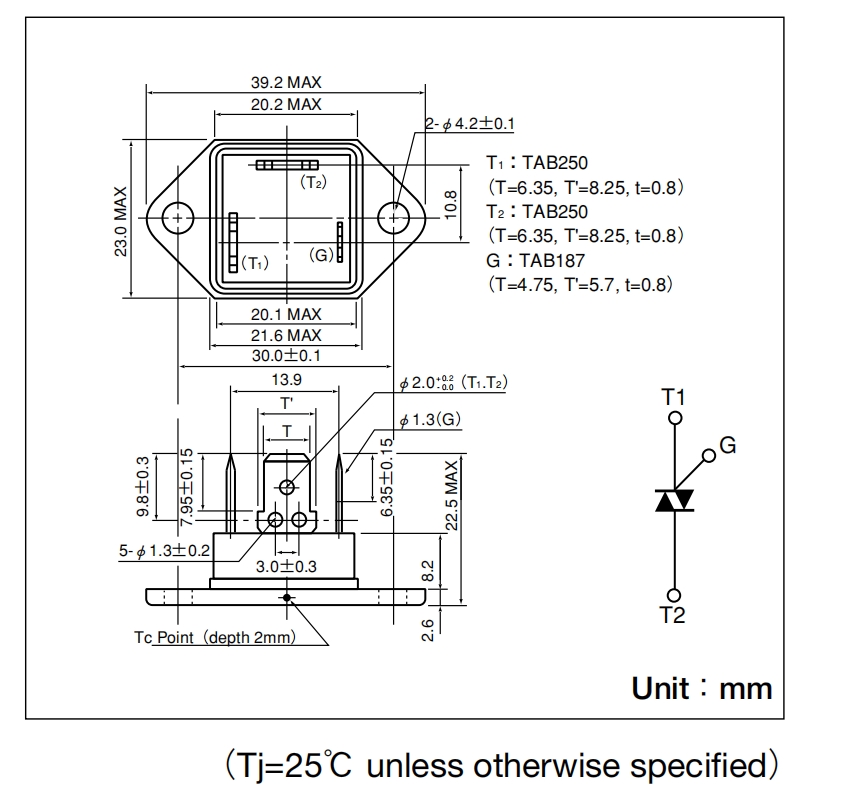

. Tab Terminals

Maximum Ratings

Symbol	Item	Ratings	Unit
		TG40E60
VDRM	Repetitive Peak Off-State Voltage	600	V

Symbol	Item	Conditions	Ratings	Unit
IT（RMS）	R.M.S. On-State Current	Tc ＝64℃	40	A
ITSM	Surge On-State Current	One cycle, 50/60Hz, peak value, non-repetitive	380/420	A
I2t	I2t	Value for one cycle of surge current	730	A2s
PGM	Peak Gate Power Dissipation		10	W
PG（AV）	Average Gate Power Dissipation		1	W
IGM	Peak Gate Current		3	A
VGM	Peak Gate Voltage		10	V
di/dt	Critical Rate of Rise of On-State Current	IG ＝100mA，VD = ½VDRM，diG/dt ＝1A/ μs	50	A/ μs
Tj	Operating Junction Temperature		-40～＋125	℃
Tstg	Storage Temperature		-40～＋150	℃
VISO	Isolation Breakdown Voltage（R.M.S.）	A.C.1 minute	2500	V
	Mounting Torque（M4）	Recommended Value 1.0～1.4N ・m（10～14kgf・㎝）	1.5（15）	N･m （kgf･㎝）
	Mass	Typical value	23	g

Electrical Characteristics

Symbol	Item		Conditions	Ratings			Unit
Symbol	Item		Conditions	Min.	Typ.	Max.	Unit
IDRM	Repetitive Peak Off-State Current		Tj ＝125℃, VD ＝VDRM			5	mA
VTM	Peak On-State Voltage		IT ＝60A			1.4	V

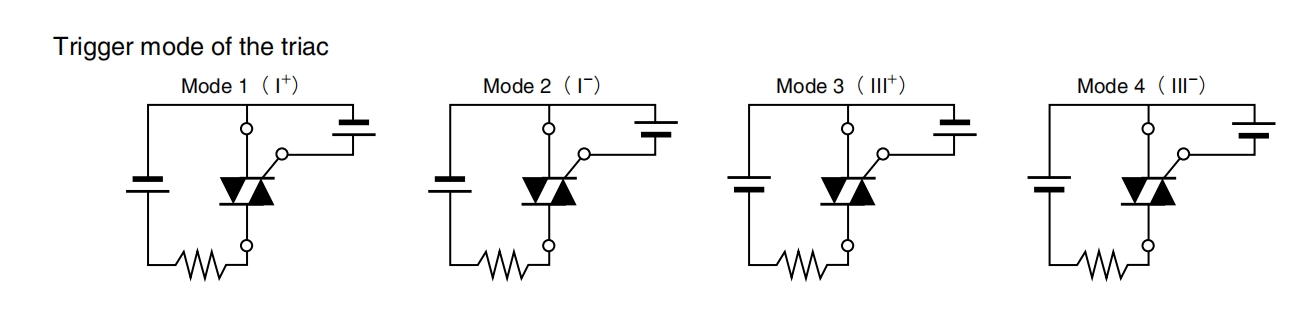

I G(＋)T1	1	Gate Trigger Current	VD ＝6V, IT ＝1A			50	mA
I G(－)T1	2					50	mA
I G(＋)T3	3			―	―	―	mA
I G(－)T3	4					50	mA
VG(＋)T1	1	Gate Trigger Voltage	VD ＝6V, IT ＝1A			1.5	V
VG(－)T1	2					1.5	V
VG(＋)T3	3			―	―	―	V
VG(－)T3	4					1.5	V
VGD	Non-Trigger Gate Voltage		Tj ＝125℃, VD = ½VDRM	0.2			V
dv/dt	Critical Rate of Rise of Off-State Voltage		Tj ＝125℃, VD =⅔VDRM, Exponential wave.	500			V/ μs
〔dv/dt〕c	Critical Rate of Rise of Off-State Voltage at commutation		Tj ＝125℃, VD =⅔VDRM,〔di/dt〕c ＝10A/ms	6			V/ μs
IH	Holding Current				30		mA
Rth（j-c）	Thermal Impedance		Junction to case			1.3	℃/W
