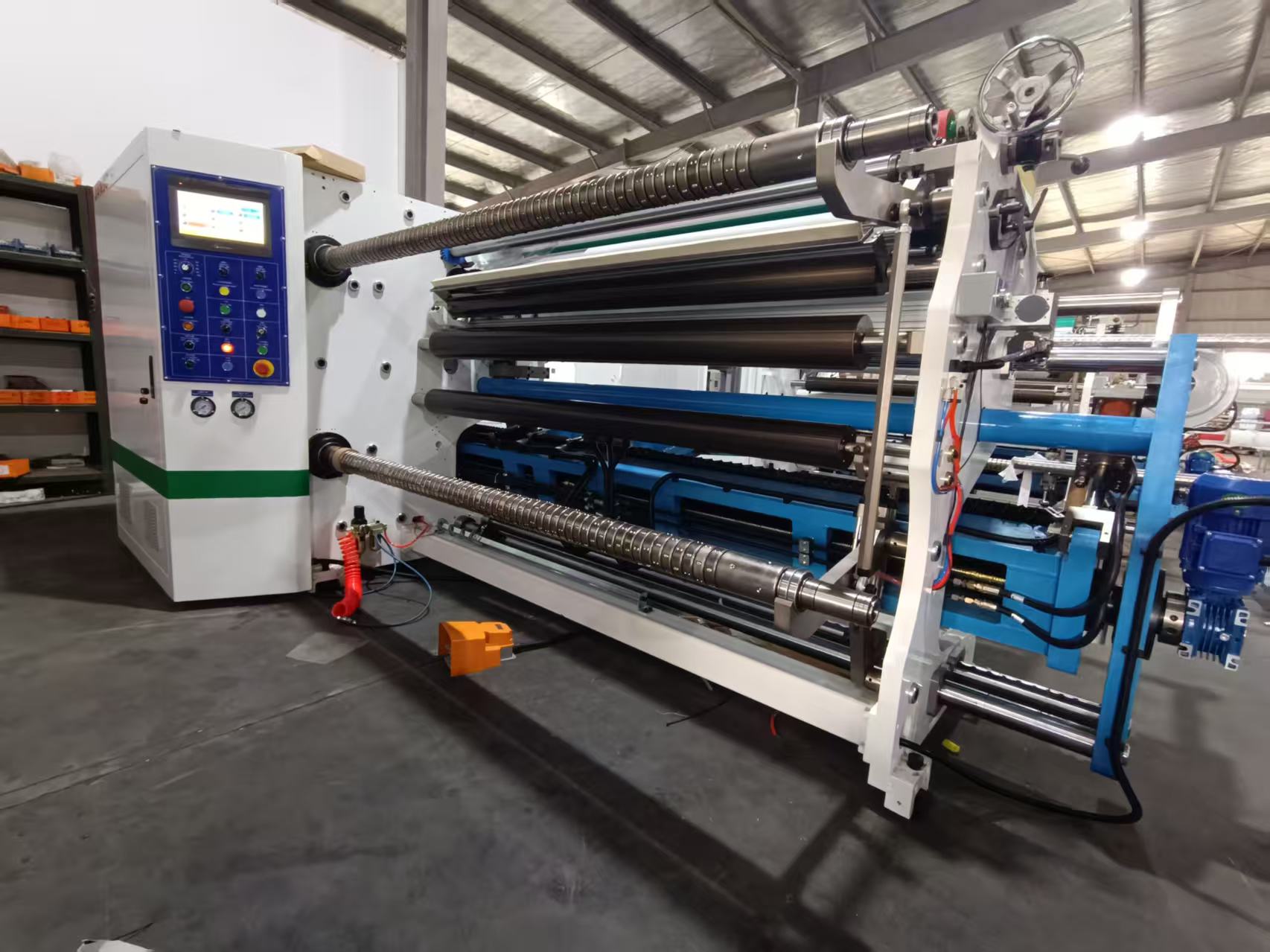

Double Shaft Center Slitting Rewinding Machine

3 month ago

10 0 

4 month

Product details

Purpose:
Suitable for various paper strips such as labels, stickers, etc

Machine Width：1.0M/1.3M/1.6M
Max. Unwind O.D:800mm/1000mm
Machine Speed: 300M/min
Min. slitting width: 50mm
Max. Rewinding O.D: 600mm
Rewinding Core l.D: 3"-6"

characteristic

1. 3 motors synchronous drive control system, ensuring high speed operation with stable tension control and aesthetically pleasing finished products.

2. PLC programmable logic controller central system; LED touchscreen interface for tension, slitting length/width, and parameter input.

3. Shaftless conjoined moveable unwinding base (Optional configurations: shaft/shaftless integrated or shaft/shaftless separate type).

4. 3" & 6" unidirectional torque chuck with conical chuck; Electric bilateral chuck actuation; Hydraulic lifting arms loading; Separable paper splice table.

5. Closed-loop tension control system integrated with ultrasonic automatic edge-guiding system.

6. Rewind pressure roller assembly with adjustable pneumatic pressure, suitable for various material slitting/rewinding requirements.
7. German P+F ultrasonic tension automatic calculation and control (including TAP tension control)

8. Quick-change rewind shaft system (air shaft ↔ differental shaft interchangeable).

9 The waste treatment device adopts a fan waste collection.

10. Optional tooling configurations: Pneumatic circular knives, upper/lower circular blade, industrial straight knives (fulfilling diverse material processing needs).

11. Independent rotating finished roll unloading device (equipped with air shaft and packaging).

Double Shafts Rewinder is a specialized industrial equipment designed to efficiently rewind and manage various types of materials, such as tapes, films, and foils. This device is particularly useful in manufacturing and production environments where precision, reliability, and performance are essential. The Double Shafts Rewinder ensures consistent tension control, accurate alignment, and smooth operation, making it an ideal choice for industries that require high-quality material handling solutions. Whether used in packaging, printing, or textile applications, this rewinder provides a dependable and efficient way to process and store materials. Its robust construction and advanced engineering make it suitable for both continuous and intermittent operations, offering long-term durability and minimal maintenance requirements.

With its user-friendly design and versatile functionality, the Double Shafts Rewinder enhances productivity and reduces downtime, contributing to overall operational efficiency. The device is available in multiple configurations to suit different production needs, ensuring flexibility and adaptability across various industrial settings. By integrating the Double Shafts Rewinder into your workflow.
