F Series LIght Pump
2 month ago
Product details
Advantages
High precision to guarantee the precise flow, without pulsation and repeatability.
Heated treatment and harded gear shaft prolong service life.
Needle bearing efficiency and resistance to high pressure.
Many seals to choose.very economical to meet your application.
Simple construction with only two moving parts .Provide maximum application flexibility.

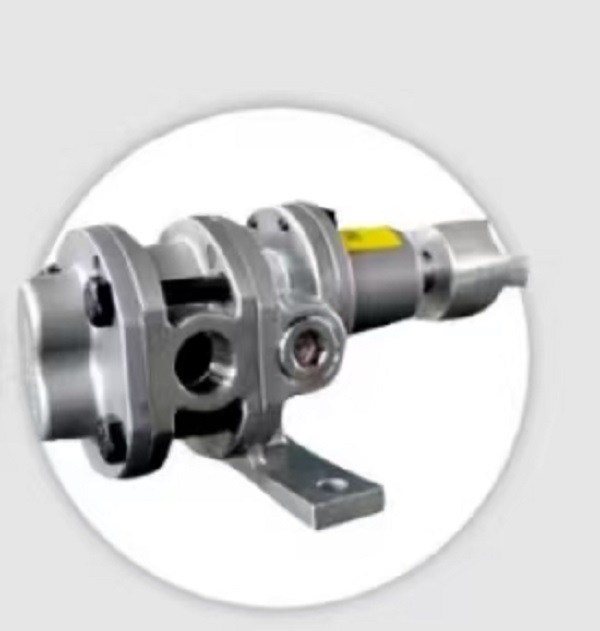

F Series Light Pump
Product Overview
The F Series Light Pump is a compact, energy-efficient fluid transfer device designed for applications with strict requirements on weight, size, and power consumption. Its lightweight structure and low energy consumption make it ideal for portable systems, mobile equipment, and space-constrained environments.
Key Features
1. Lightweight Design
• Constructed from high-strength aluminum alloy or engineered plastics, reducing weight by 30%–50% compared to traditional pumps.
• Modular structure for easy integration into compact systems.
2. Energy Efficiency
• Optimized flow path design minimizes fluid resistance, achieving efficiency ratios over 85%.
• Supports variable frequency drives (VFD) for adaptive flow control and further energy savings.
3. Low Noise Operation
• Precision dynamic balancing reduces vibration, with noise levels below 65 dB(A), suitable for indoor or quiet environments.
4. Easy Maintenance
• Quick-disassembly design allows component replacement without specialized tools.
• Wear-resistant seals extend service life.
Technical Specifications (Example)
【表格】
Parameter Range/Value
Flow Rate 0.5–50 m³/h (2.2–220 GPM)
Head 5–80 meters (16–262 ft)
Motor Power 0.18–7.5 kW (0.25–10 HP)
Suitable Media Clean water, mildly corrosive liquids
Operating Temperature -10°C to +80°C (14°F to 176°F)
Typical Applications
• Portable Equipment: Mobile cleaning systems, field water supply units.
• Medical Devices: Hemodialysis machines, infusion pumps.
• Household Appliances: Water purifiers, coffee machine circulation systems.
• Laboratory Equipment: Small reactors, analytical instrument fluid transfer.
------
M Series Special Pump
Product Overview
The M Series Special Pump is a high-performance pump engineered for extreme operating conditions or specialized media, including high temperatures, high pressures, strong corrosion, and high viscosity. Its customizable design and advanced material selection ensure reliable operation in harsh environments.
Key Features
1. Extreme Condition Resistance
• High-Temperature Pumps: Withstands temperatures up to 400°C for thermal oil or molten salt transfer.
• High-Pressure Pumps: Pressure ratings up to 200 bar (2,900 psi) for high-pressure cleaning or water injection.
• Corrosion-Resistant Pumps: Uses Hastelloy, titanium alloys, or duplex stainless steel to resist acids, alkalis, and salts.
2. High-Viscosity Adaptability
• Specialized helical grooves or gear designs handle media up to 100,000 cSt (e.g., asphalt, resins).
3. Advanced Sealing Technology
• Double mechanical seals or magnetically driven (leak-free) designs ensure safe transfer of toxic or flammable media.
4. Smart Control
• Optional sensors and PLC systems enable real-time monitoring and automatic adjustment of flow, pressure, and temperature.
Technical Specifications (Example)
【表格】
Parameter Range/Value
Flow Rate 0.1–500 m³/h (0.44–2,200 GPM)
Head 10–500 meters (33–1,640 ft)
Motor Power 0.75–315 kW (1–425 HP)
Suitable Media Strong acids, alkalis, high-temperature oils, high-viscosity fluids
Operating Temperature -50°C to +400°C (-58°F to +752°F)
Typical Applications
• Chemical Industry: Sulfuric acid, hydrochloric acid transfer.
• Oil & Gas: Downhole water injection, crude oil extraction.
• Food & Pharmaceuticals: High-viscosity sauces, pharmaceutical slurries.
• Environmental Protection: Wastewater treatment, sludge dewatering.
------
Comparison: F Series vs. M Series
【表格】
Characteristic F Series Light Pump M Series Special Pump
Design Goal Lightweight, energy-saving, portable Extreme condition resistance, high reliability
Target Scenarios Civilian use, small industrial equipment Chemical, petroleum, heavy industry
Materials Aluminum alloy, plastics Hastelloy, titanium, stainless steel
Maintenance Low complexity Medium-high (requires specialists)
Cost Lower Higher (customization costs)
------
Selection Guide
• Prioritize F Seriesif you need a low-cost, easy-to-maintain pump for general liquids.
• Prioritize M Seriesif the media is corrosive, high-temperature, or high-viscosity, or if a leak-free design is required.
------
Summary: The F Series Light Pump excels in portability and energy efficiency for everyday and light industrial use, while the M Series Special Pump delivers tailored solutions for extreme conditions. Users should select based on media properties, environmental demands, and budget.
