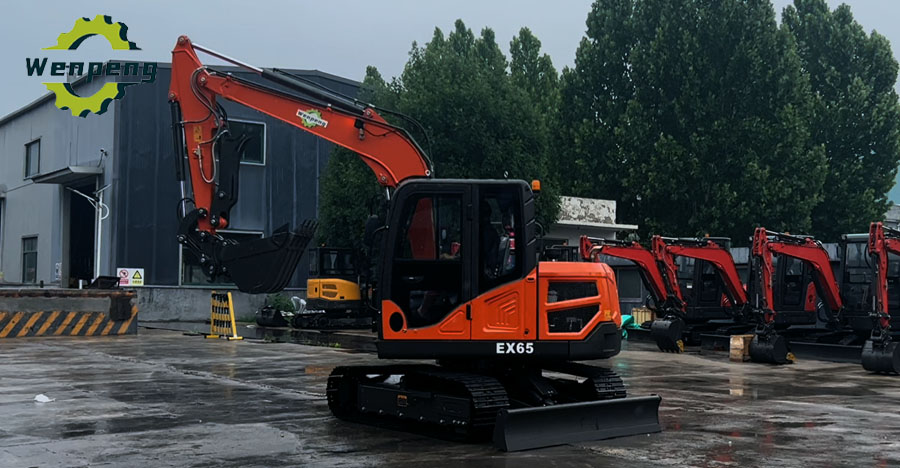

Euro 5 standard 6.5Ton small crawler excavator

2 month ago

1 0 

SUZHOU WENPENG MACHINE TECHNICAL CO.,LTD.

2 year

Product details

The 6.5 ton medium crawler hydraulic excavator for earthmoving projects combines powerful digging capabilities with excellent operating flexibility and is widely used in construction, mining and infrastructure projects.

Features

1. Excellent power performance

This 6.5 ton medium crawler hydraulic excavator is equipped with an efficient Kubota engine, which provides strong power output, low emissions and is more environmentally friendly.

Optimized hydraulic system ensures efficient digging and lifting capabilities.

2. Good stability and performance

The durable crawler chassis system provides excellent stability and can adapt to various complex terrains.

The low center of gravity design enhances the safety and stability of the fuselage.

3. Comfortable operating environment

The spacious cab is equipped with comfortable seats and modern control panels to enhance the operating experience.

Optimized ventilation and noise reduction design ensure operator's working comfort.

4. High work efficiency

Medium crawler hydraulic excavators have large excavation depth and unloading height to meet a variety of construction needs. The fast-response hydraulic system significantly improves work efficiency.

5. Versatility

The 6.5 ton medium crawler hydraulic excavator is compatible with a variety of working attachments and can be easily replaced. Such as buckets, grab buckets, clamps, breaker hammers, lawn mowers, etc. to support different operating needs

Parameters

Model	EX-65
Bucket Capacity	0.26m³
Swing Speed	0-11rmp
Gradeablity	35°
Max. Bucket Digging Force	48KN
Max. Arm Digging Force	35KN
Engine Model	Kubota V2607
Power/Revolution Speed	42.4/2000(KW/rmp)
System Pressure	28Mpa
Dimension	594018802570mm
Cabin Height	2600mm
Axle Base	1990mm
Wheel(track)Distance	1480mm
Min Ground Clearance	353mm
Tail Swing Radius	1689mm
Max.Digging Height	5499mm
Max.Dumping Height	3845mm
Max.Digging Depth	3808mm
Max. Vertical Digging Depth	2983mm
Max. Digging Radius	6128mm
Min.Swing Radius	2607mm
