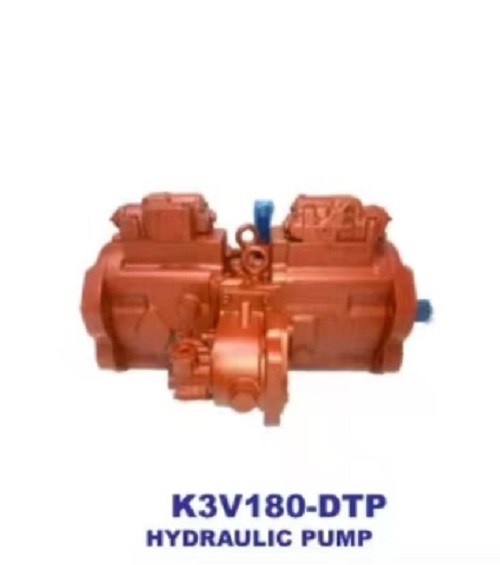

K3V180-DTP HYDRAULIC PUMP
2 month ago
Product details
K3V180-DTP Hydraulic Piston Pump Product Overview
TheK3V180-DTPis a high-performance axial piston variable-displacement pump designed for medium- to high-pressure hydraulic systems. It is widely used in construction machinery, industrial equipment, and marine applications. Its core advantages include high efficiency, low noise, long service life, and adaptability to harsh operating conditions, making it ideal for applications requiring continuous high-pressure output and precise flow control.
------
Key Design Features
1. Axial Piston Variable-Displacement Structure
• Achieves stepless flow adjustment via swashplate angle variation (displacement range: 180 cm³/rev).
• Precision-matched pistons and cylinder blocks minimize leakage, with volumetric efficiency up to92%–95%.
2. High-Pressure Durability
• Rated pressure:35 MPa (5,075 psi); peak pressure up to40 MPa (5,800 psi).
• Suitable for hydraulic breakers, injection molding machines, and other high-pressure systems.
3. Wear-Resistant Materials & Surface Treatments
• Pistons, cylinder blocks, and port plates usehigh-strength alloy steelwith quenching + nitriding (hardness HRC58–62) for exceptional wear resistance.
• Seals (fluororubber/PTFE) operate in temperatures ranging from-30°C to +120°C, compatible with mineral oils and some eco-friendly hydraulic fluids.
4. Low Noise & Vibration
• Optimized flow paths reduce hydraulic shock, while precision bearings minimize mechanical vibration (operating noise ≤78 dB(A)).
5. Modular Design
• Independent replacement of pump body, drive shaft, and control valves reduces maintenance costs by30%.
------
Key Technical Specifications
【表格】
Parameter K3V180-DTP Specifications
Theoretical Displacement 180 cm³/rev (10.98 in³/rev)
Rated Pressure 35 MPa (5,075 psi)
Peak Pressure 40 MPa (5,800 psi)
Speed Range 600–2,000 rpm
Drive Power Max. 110 kW (148 HP)
Weight Approx. 120 kg (265 lbs)
Oil Viscosity Range 10–500 cSt (kinematic viscosity)
Filtration Requirement NAS 6 grade (≤10 μm)
------
Typical Applications
1. Construction Machinery
• Hydraulic systems for excavator travel, swing, and attachments (boom/bucket control).
• Loader lifting and steering systems.
2. Metallurgical Industry
• Continuous casting machine mold oscillation and rolling mill press systems requiring precise high-pressure control.
3. Hydraulic Presses
• Metal stamping and forging equipment demanding high-flow, high-pressure output.
4. Marine & Offshore Engineering
• Deck machinery (anchors, winches) and steering systems adapted to seawater corrosion.
5. Testing Rigs & Simulation Systems
• Structural fatigue testing and hydraulic servo-control systems requiring rapid response.
------
Selection & Configuration Guide
1. Pressure Matching
• Ensure system operating pressure does not exceed the pump’s rated pressure (35 MPa). Reserve a10% safety margin.
2. Speed & Flow
• Select speed based on load:
• Heavy-duty: 600–1,200 rpm (stable low-speed operation).
• Light-duty: 1,500–2,000 rpm (efficient high-speed operation).
3. Fluid Compatibility
• Standard hydraulic oil: Use standard seals.
• Fire-resistant fluids (HFA/HFB): Replace seals with special materials.
4. Cooling Requirements
• For continuous operation, install air or water cooling to prevent overheating (recommended oil temperature ≤85°C).
------
Maintenance & Troubleshooting
1. Daily Inspections
• Oil level: Maintain reservoir at 1/2–2/3 capacity.
• Temperature: Monitor for abnormal heating (indicates internal leakage or cooling failure).
2. Periodic Replacements
• Hydraulic oil: Replace every 2,000 operating hours or annually (adjust based on conditions).
• Filters: Replace every 500 hours to prevent contaminant ingress.
3. Common Faults
• Insufficient Flow: Check suction line blockage or internal leakage.
• Pressure Fluctuations: Adjust relief valve or inspect stuck safety valves.
• Abnormal Noise: Tighten couplings or replace worn bearings.
------
Comparison with Similar Products
【表格】
Parameter K3V180-DTP Standard Gear Pump Vane Pump
Pressure Range 35 MPa (high-pressure) ≤20 MPa (medium-pressure) ≤21 MPa (medium-pressure)
Efficiency 92%–95% (volumetric) 80%–85% 85%–90%
Noise Level ≤78 dB(A) (low) ≥80 dB(A) ≤70 dB(A) (high pulsation)
Fluid Compatibility Mineral/synthetic/fire-resistant Mineral oil only Mineral oil (viscosity-limited)
Cost Medium-high (performance-oriented) Low Medium
------
Summary
TheK3V180-DTP Hydraulic Piston Pumpis an ideal choice for medium- to high-pressure hydraulic systems, particularly in applications demanding sustained reliability and high-pressure control. Users should select models based on system pressure, flow requirements, and fluid type while adhering to maintenance protocols for optimal performance. For customization (e.g., special materials, port configurations), contact the manufacturer for technical support.
Need technical drawings, selection manuals, or repair guides? Specify your requirements!
