1. Core Functions of Multi-way Valves in Backhoe Loaders
Backhoe loaders (commonly known as "two-in-one machines") integrate excavation and loading functions, with multi-way valves serving as the central control component of their hydraulic systems. Key functions include:
• Directional Control: Routing hydraulic oil flow to operate boom lifting/lowering, bucket tilting, stick extension/retraction, and slewing motions.
• Flow Distribution: Coordinating synchronized or sequential operations of multiple actuators (e.g., hydraulic cylinders, motors) to enhance efficiency.
• Pressure Protection: Preventing system overload via relief valves to safeguard hydraulic pumps and actuators.
• Composite Motion Control: Enabling simultaneous operation of multiple functions (e.g., digging + slewing) for improved flexibility.
Typical Application Scenarios:
• Excavation Mode: Boom, stick, bucket, and slewing (360° rotation) operations.
• Loading Mode: Front loader bucket lifting, tilting, and leveling.
• Travel Drive: Controlling hydraulic motors for steering and speed adjustment (in some models).
------
2. Working Principles and Structure
(1) Valve Body Design

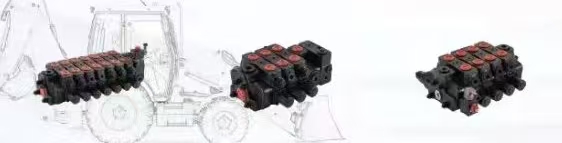

• Modular Multi-way Valves: Composed of individual valve sections (e.g., boom, bucket, stick sections) for easy customization.
• Example: A 6-section valve can simultaneously control boom, stick, bucket, slewing, loader bucket, and travel functions.
• Monoblock Multi-way Valves: Integrate all sections into a single valve block, suitable for compact models.
(2) Hydraulic Circuit Types
• Open Circuit: Oil flows from tank → pump → multi-way valve → actuator → tank, commonly used in small/medium backhoes.
• Closed Circuit: Oil circulates between pump and actuator, often applied in travel drive systems (high-end models).
(3) Control Methods
• Manual Mechanical Control: Direct lever operation for low-cost machines.
• Hydraulic Pilot Control: Uses pilot pressure to actuate main valves, enabling remote operation (common in medium models).
• Electro-Hydraulic Proportional Control: Adjusts valve opening via electrical signals for precise, stepless speed control (premium models).
(4) Neutral Position Functions
• H-Type: Oil unloads to tank, suitable for prolonged operations (e.g., loader bucket lifting).
• Y-Type: Partial oil unloading, used for slewing deceleration.
• O-Type: Oil flow blocked, ideal for locking actuators (e.g., boom suspension).
------
3. Selection and Design Considerations
(1) Performance Parameters
• Nominal Flow Rate: Must match pump output (e.g., 80–150 L/min).
• Rated Pressure: Typically 20–35 MPa, exceeding system maximum working pressure.
• Number of Sections: Selected based on functional requirements (e.g., 4-section or 6-section valves).
• Leakage Rating: Prefer internal leakage ≤5 ml/min to minimize energy loss.
(2) Environmental Adaptability
• Contamination Resistance: Choose spool valves with strong anti-pollution capabilities for harsh conditions.
• Temperature Range: Operate in -20°C to +60°C environments (low-temperature hydraulic oil required in cold regions).
• Seal Material: Fluororubber (FKM) seals for high-temperature and chemical-resistant applications.
(3) Reliability Requirements
• Durability Testing: Pass 500,000+ cycle endurance tests.
• Impact Resistance: High-strength valve bodies to withstand frequent shock loads.
(4) Energy Efficiency
• Load-Sensing (LS) Function: Automatically adjusts flow based on load, reducing energy consumption by 15–20%.
• Electro-Priority Valves: Prioritize flow to critical actuators (e.g., bucket) during composite motions.
------
4. Practical Application Cases
Case 1: Medium Backhoe Loader (15-Ton Class)
• Valve Configuration: 6-section electro-hydraulic proportional valve (boom, stick, bucket, slewing, loader bucket, travel).
• Advantages:
• Proportional control enables bucket micro-adjustments (±3 mm accuracy) for precise excavation.
• Load-sensing reduces heat generation.
• Data: System pressure 28 MPa, flow rate 120 L/min, valve weight ≤120 kg.
Case 2: Compact Backhoe Loader (8-Ton Class)
• Valve Configuration: 4-section manual valve (boom, bucket, slewing, loader bucket).
• Advantages:
• Low-cost manual control with simple maintenance.
• Integrated counterbalance valve prevents boom drifting.
• Data: System pressure 21 MPa, flow rate 60 L/min, valve dimensions 350×200×150 mm.
------
5. Common Issues and Solutions
(1) Uncoordinated Motions
• Cause: Uneven flow distribution among valve sections.
• Solution: Calibrate flow rates and inspect orifice blockages.
(2) System Overheating
• Cause: Excessive internal leakage or load-sensing failure.
• Solution: Replace seals and check LS spring pressure.
(3) Composite Motion Interference
• Cause: Pressure compensator malfunction.
• Solution: Clean or replace pressure compensators and adjust shuttle valve clearance.
(4) Valve Sticking
• Cause: Oil contamination or spool wear.
• Solution: Replace filters, clean valve bodies, and replace spools.
------
6. Future Trends
• Intelligence: Integration of sensors and controllers for self-diagnosis and remote monitoring.
• Lightweighting: High-strength aluminum valve bodies to reduce weight by 20–30%.
• Energy Efficiency: Further optimization via variable pumps and electro-hydraulic valves.
• Modular Design: Quick-replace valve sections to minimize downtime.
