Crack Detection Test for Metallized Ceramics
5 week ago
High Precision Glazed Alumina Metallized Ceramic Sleeve
Alumina metallized ceramic sleeves are widely used in many vacuum interrupting devices, such as gas discharge tube, vacuum thyristors,surge arresters, current feedthrus and so on, We have prototyping to mass production capability with our in-house comprehensive production line.
We are capable of offering high precision metallized ceramic sleeves via variety of fine grinding, CNC machining, cutting processes. The finest tolerance can be +/-0.001 for length, +/-0.005 for inner and outer diameter.
Small part-size to large part-size is availability, the min. diameter can be 1mm, the largest diameter is up to 800mm.The typical plating as below:
1. Raw ceramic + Mo/Mn metallization 2. Raw ceramic + Ag plating 3. Raw ceramic + W metallization + Au plating 4. Raw ceramic + Mo/Mn metallization + Ni plating
Technical Key Parameters of metalized ceramics
|
Leak Rate |
≤1x10-11Pa.m3/s |
Metal Layer Tensile Strength |
≥120Mpa |
|
Volume Resistivity |
≥108Ω•cm |
Coefficient of Thermal Expansion |
(6.5 ~ 8.0) × 10-6 /°C |
|
Insulation Strength |
≥18kV/mm (D•C) |
Dielectric Constant |
9~10(1MHz, 20°C) |
|
Cosmetic Quality:1. No cracks, no bubbles; 2. Evenly distributed glaze; 3. No contamination |
|||
Features of metalized ceramic insulators
● High bonding / brazing strength ● Low leakage rate ● High Insulation strength● High mechanical strength
● Low thermal expansion ● Resistant to corrosion free of rust ● Min. electric resistance and vacuum tightness
Typical application of metalized ceramic tube
Widely used in vacuum interrupters, Electron tubes,Gas discharge tube, Vacuum capacitor,Vacuum thyristors,
Surge arresters,Thyristor housings,Diode housings,Power grid tubes,Insulator rings and cylinder,X-ray tubes and so on

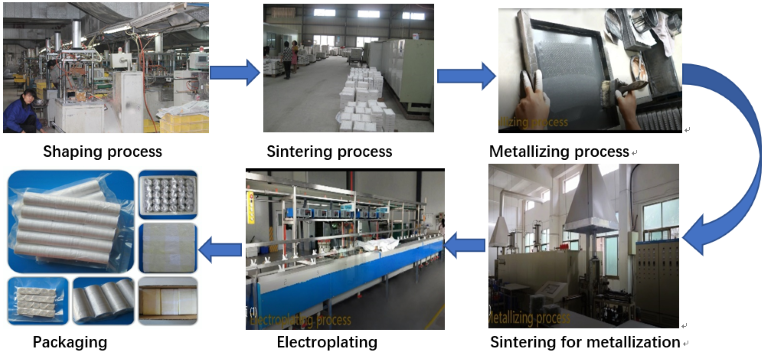

Main Manufacturing Flow Chat
We have a complete comprehensive of production equipment for metallized ceramics from shaping to electroplating.
It helps us to make the dimensional consistency very well. Also, helping us to offer a competitive price.
FAQs (Frequently Asked Questions)
Q 1. Is it available to provide customize products?
A: We could support custom-made demand as per different dimensions, design and metallization and plating.
Q 2. When can I get the price?
A: We regularly quote within 24 hours after we get your inquiry.
Q 4. What about the transportation and delivery date?
A: Normally we use Int`l express by our forwarder, or with client`s account number. It is about 3~5 working days.
Q 5. How to ensure the quality?
A: The dimension out of any batch will be carried out sampling inspection per International AQL standard. 100% cosmetic inspection will be done.
