Dry Pressing for Advanced Ceramic Plates

Glazed Alumina Metallized Ceramic Pipe for Vacuum Breaker

Metallized ceramic pipe is often made of 95% alumina, or higher grade. It can be formed via dry pressing, injection, or hot pressing.

We are able to manufacture a diversity of different specification metallized ceramic pipe, the max. diameter can be up to 800 mm.

The typical plating for metallised ceramic pipe as below:

1. Raw ceramic + Mo/Mn metallization 2. Raw ceramic + Mo/Mn metallization + Nickle plating

We are capable of offering high precision metallized ceramic tube via variety of grinding, CNC machining, cutting processes. The finest tolerance can be +/-0.001 for length, +/-0.01 for inner and outer diameter.Prototyping to mass production is an advantage to us because of our own comprehensive production line.

This metallized ceramic pipe is commonly used in vacuum switch, vacuum interrupter, vacuum breaker.

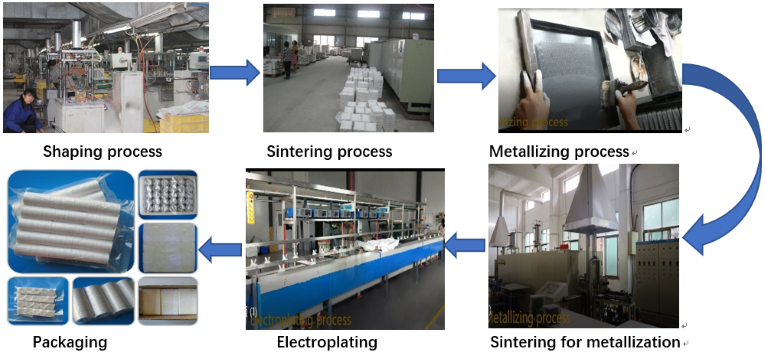

Main Manufacturing Flow Chat

We have a complete comprehensive of production equipment for metallized ceramics from shaping to electroplating.

It helps us to make the dimensional consistency very well. Also, helping us to offer a competitive price.

FAQs (Frequently Asked Questions)

Q 1. Is it available to provide customize products?

A: We could support custom-made demand as per different dimensions, design and metallization and plating.

Q 2. When can I get the price?

A: We regularly quote within 24 hours after we get your inquiry.

Q 4. What about the transportation and delivery date?

A: Normally we use Int`l express by our forwarder, or with client`s account number. It is about 3~5 working days.

Q 5. How to ensure the quality?

A: The dimension out of any batch will be carried out sampling inspection per International AQL standard. 100% cosmetic inspection will be done.
