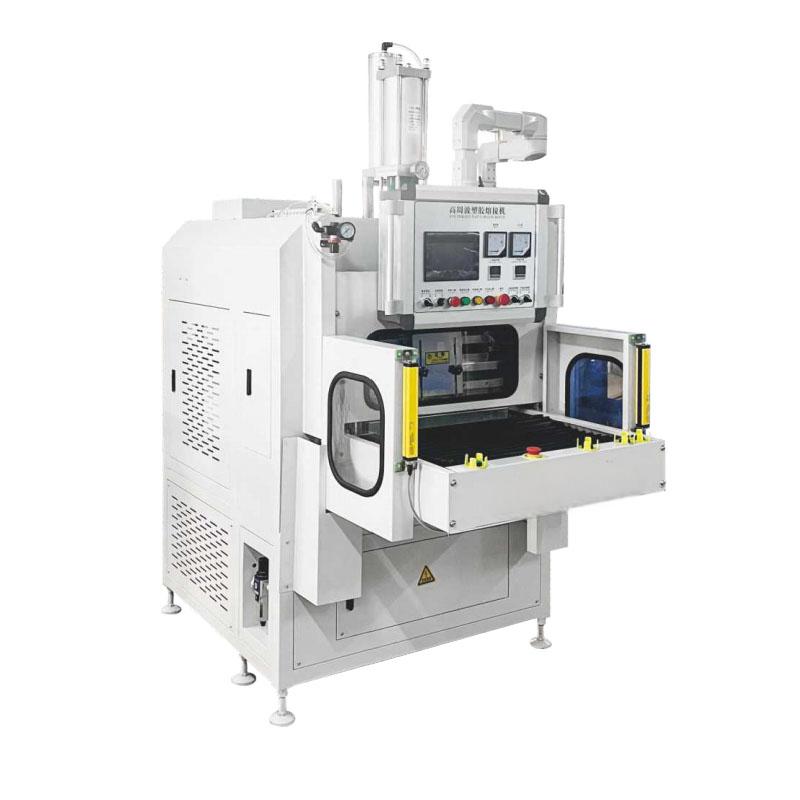

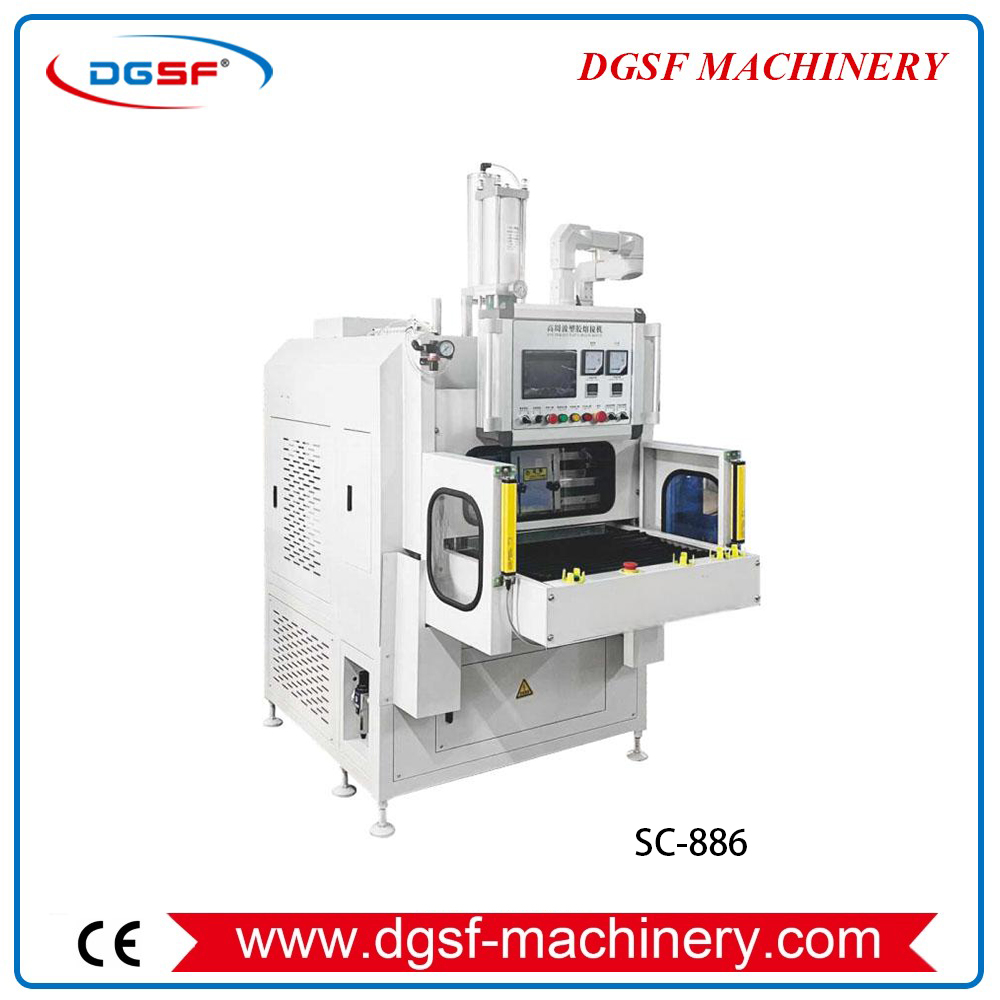

SC-886 High Frequency Precision Sliding Table Fusing Machine (3) (2)

Product brief introduction

Powerful and efficient: 15KW power output can quickly heat the welding material, shorten the processing cycle, improve production efficiency, and is suitable for welding and fusing of large or multi-layer plastic materials, such as large-area blister packaging, automotive interior parts, etc.

Welding and fusing in one: The welding and cutting processes are completed at the same time in one processing, which can make the product edge smooth and flat, without the need for subsequent secondary processing, saving time and labor costs, and improving product quality.

Accurate positioning: The sliding table work position is automatically pushed and accurately positioned, which can effectively ensure the processing accuracy and consistency of the product and reduce the defective rate.

Stable frequency: In strict accordance with the provisions of the International "Radio Interference Committee" (CISPR), the industrial band 27.12 is adopted, and a frequency stabilizer and frequency leakage magnetic suppressor are designed, which has minimal interference with external equipment.

Sensitive spark protection: Equipped with a highly sensitive spark protection device, it can accurately detect the unbalanced current that generates sparks, and quickly cut off the oscillation circuit at the moment of spark generation, so as to reduce the damage to the machine parts and objects and protect the quality of the mold and product.

Flexible output force adjustment: Using a low-loss coaxial resonator, the output force can be flexibly adjusted according to the size of the mold and the thickness of the material. With the time system, the product can be melted in the shortest time with the maximum output, which improves production efficiency while avoiding damage to different materials and molds.

Perfect safety protection: It is equipped with overvoltage and overcurrent protection devices, which can automatically cut off the high voltage when working abnormally, protect the oscillating tube and rectifier, and avoid frequency drift caused by improper operation, extend the service life of the machine, and ensure the safety of operators.

PARAMETER

Model：SC-886

Voltage：380V

Power:  15-25KW

Working pressure: 25/48T

Upper and lower die area：400*600mm

Machine Size：185*130*235cm

NW：1.2/1.3T
