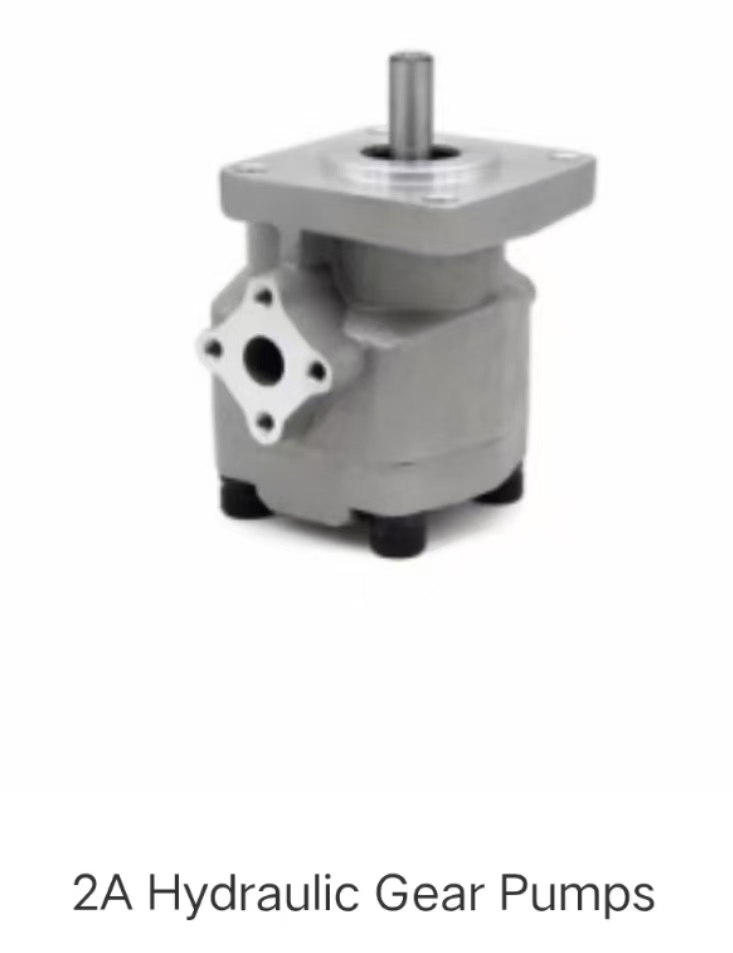

2A Hydraulic Gear Pumps

I. Definition and Basic Working Principle

1. Definition:

• 2A hydraulic gear pumps are positive displacement pumps that utilize the meshing action of gears to transfer hydraulic fluid. The "2A" designation typically refers to a specific model or series within a manufacturer's product line, indicating its position and characteristics relative to other pumps.

2. Basic Working Principle:

• These pumps consist of two or more intermeshing gears (usually a driving gear and a driven gear) enclosed within a housing. As the gears rotate, they create a series of sealed chambers between the gear teeth and the housing.

• When the gears disengage, hydraulic fluid is drawn into the pump through the inlet port, creating a low-pressure zone.

• As the gears continue to rotate and mesh, the fluid is trapped within the chambers and carried along the periphery of the gears towards the outlet port.

• Near the outlet, the volume of the chambers decreases, causing the fluid to be discharged from the pump at a higher pressure.

II. Components and Structure

1. Gears:

• The gears are the primary working components of the pump. They are typically made from high-strength materials such as steel or cast iron to withstand the pressures and wear associated with hydraulic fluid transfer.

• The gears can be of different types, including spur gears, helical gears, or herringbone gears, each offering advantages in terms of efficiency, noise level, and load-bearing capacity.

2. Housing:

• The housing encloses the gears and provides a sealed environment for the hydraulic fluid. It is usually made from durable materials such as aluminum or cast iron to ensure structural integrity and resistance to pressure and corrosion.

• The housing features inlet and outlet ports through which the hydraulic fluid enters and exits the pump.

3. Shafts:

• The gears are mounted on shafts that transmit rotational motion from the drive source (e.g., an electric motor or engine) to the gears. The shafts are supported by bearings to reduce friction and ensure smooth rotation.

4. Seals and Gaskets:

• Seals and gaskets are used to prevent hydraulic fluid leakage from the pump. They are placed at various joints and interfaces within the pump, such as between the gears and housing, and between the housing and shafts.

III. Performance Characteristics

1. Flow Rate:

• The flow rate of a 2A hydraulic gear pump is determined by its displacement per revolution and the rotational speed of the gears. It is typically measured in liters per minute (L/min) or gallons per minute (GPM).

• These pumps can provide a relatively constant flow rate over a wide range of operating pressures, making them suitable for applications requiring a steady supply of hydraulic fluid.

2. Pressure Rating:

• The pressure rating of the pump indicates the maximum pressure it can generate. It is usually measured in bar or pounds per square inch (psi).

• 2A hydraulic gear pumps are designed to operate within specific pressure ranges, and exceeding these ranges can lead to pump failure or damage.

3. Efficiency:

• Hydraulic gear pumps are generally less efficient than some other types of hydraulic pumps, such as vane pumps or piston pumps. However, they offer advantages in terms of simplicity, cost-effectiveness, and durability.

• The efficiency of a gear pump is influenced by factors such as gear design, clearance between the gears and housing, and the viscosity of the hydraulic fluid.

4. Noise Level:

• Gear pumps can generate a certain amount of noise during operation, especially at high speeds. The noise level is influenced by factors such as gear type, gear tooth profile, and the quality of pump manufacturing.

IV. Advantages and Applications

1. Advantages:

• Simplicity: Gear pumps have a relatively simple design with fewer moving parts compared to some other types of hydraulic pumps, making them easier to manufacture, maintain, and repair.

• Cost-Effectiveness: They are typically less expensive than other types of hydraulic pumps, making them a popular choice for applications where cost is a significant factor.

• Durability: Gear pumps are known for their robustness and ability to withstand harsh operating conditions, including high pressures and temperatures.

• Self-Priming Capability: Many gear pumps have self-priming capability, meaning they can draw hydraulic fluid into the pump without the need for an external priming device.

2. Applications:

• Industrial Machinery: Used in various industrial machines such as presses, injection molding machines, and metal forming equipment to provide hydraulic power for actuation and control.

• Mobile Equipment: Found in construction machinery, agricultural equipment, and material handling vehicles to power functions such as steering, lifting, and tilting.

• Automotive: Utilized in automotive applications such as power steering systems, transmission pumps, and lubrication systems.

• Marine: Employed in marine hydraulic systems for functions such as steering, winches, and deck machinery.

V. Selection and Maintenance

1. Selection:

• When selecting a 2A hydraulic gear pump, consider factors such as the required flow rate, pressure rating, fluid compatibility, and operating environment.

• Ensure that the pump's specifications match the requirements of the hydraulic system in which it will be used.

2. Maintenance:

• Regular maintenance is crucial for ensuring the longevity and reliable operation of the pump. This includes checking and replacing seals and gaskets as needed, monitoring fluid levels and quality, and inspecting the pump for signs of wear or damage.

• Follow the manufacturer's recommended maintenance schedule and procedures to keep the pump in optimal condition.
